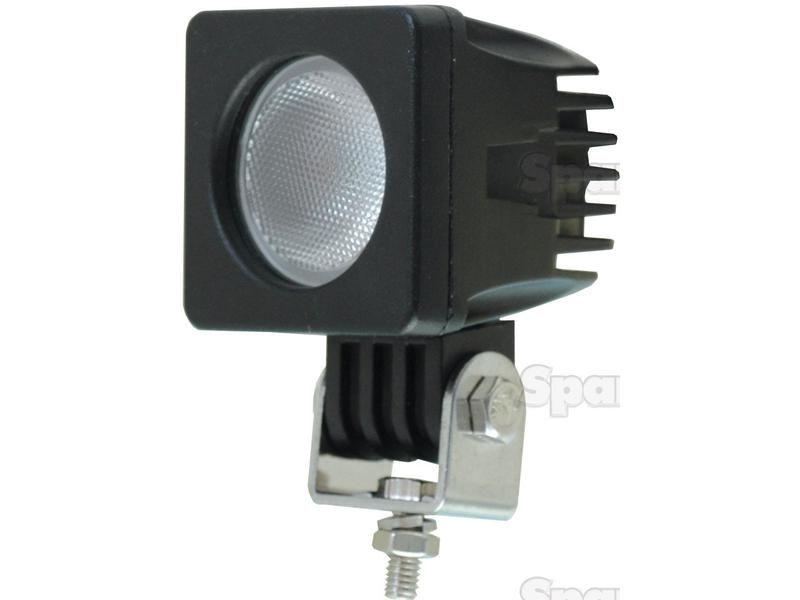

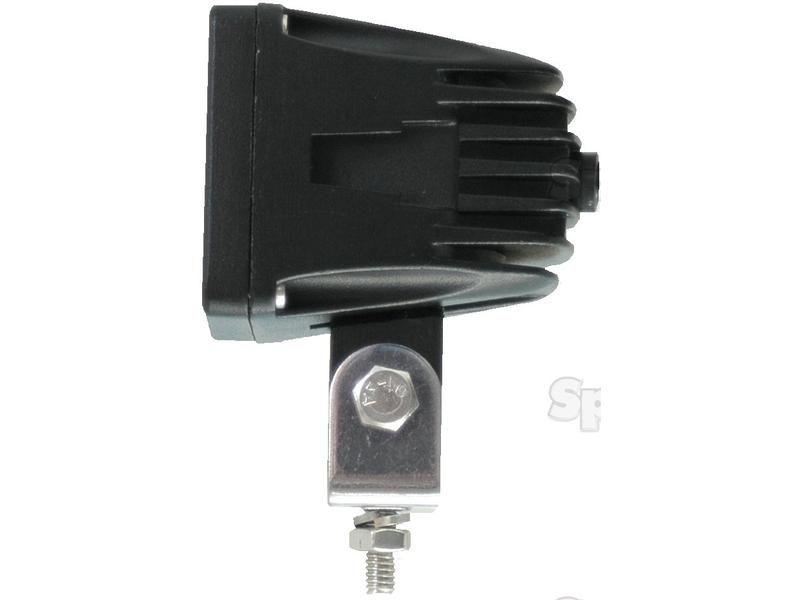

Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67

Part Number: S.24775Categories: Electrical Accessories
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67
Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67

Part Number: S.24775

Grade: Replacement

Part Details

Compact LED Work Light, aluminium case, 500 lum. | 12/24 Volts, LED 1x10w, IP67 ECE Rating: NoCE Approved: YesIP Rating: IP67Connection Type: For Male or Female Insulated Terminal

Technical Information

Beam Angle 20°
Beam Type Flood Beam
Brand Sparex
Cable length mm 1000
CE Approved Yes
Connection Type For Male or Female Insulated Terminal
ECE Rating No
Fixing 1 Bolt
Housing Material Aluminium
Interference EMC EMI CISPR 25 Not Classified
IP Rating IP67
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 400
Lumens Raw 750

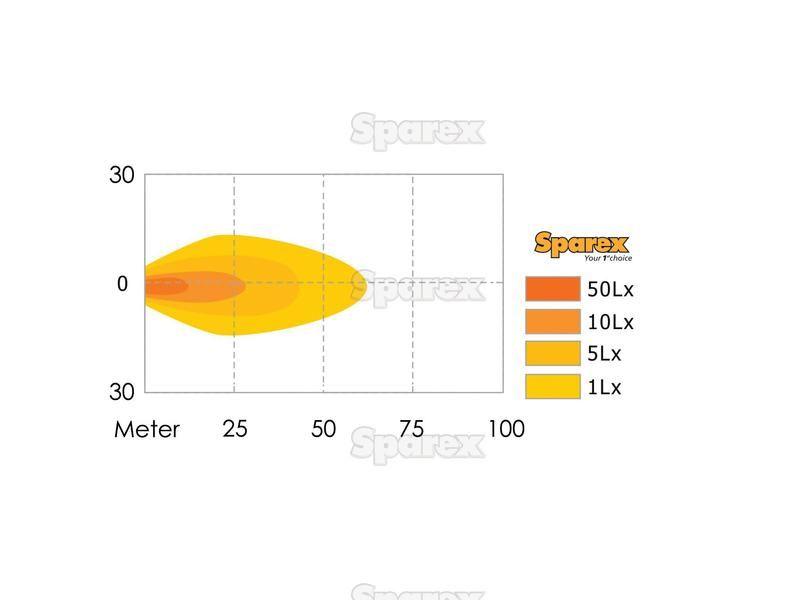

Lux Value 1425

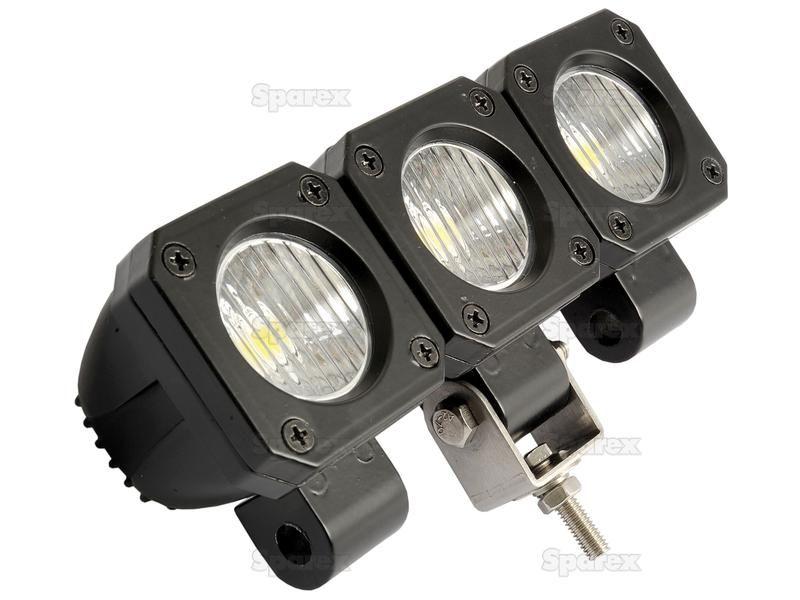

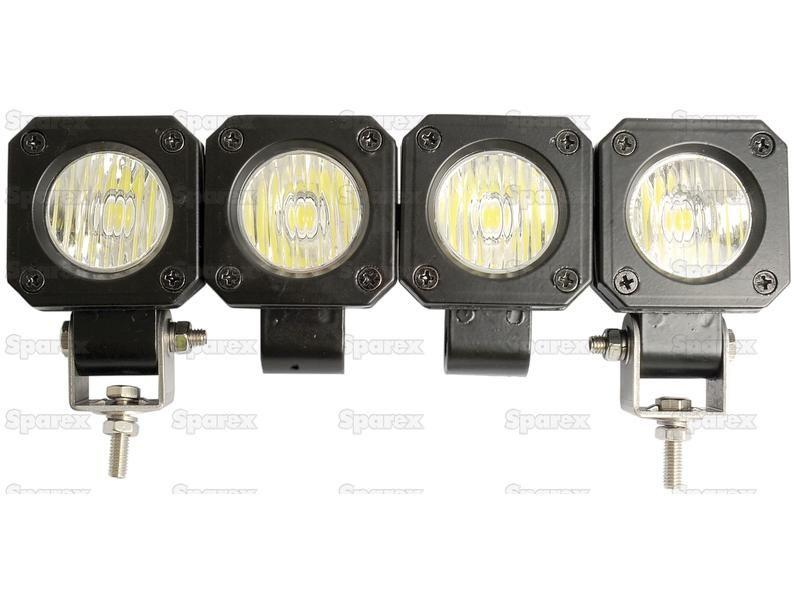

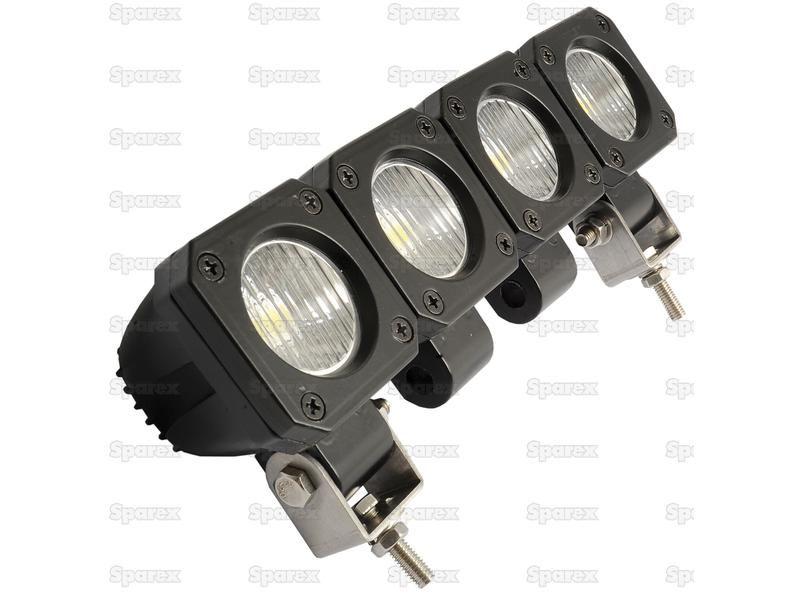

Notes Modular design enables them to be fixed together - Dimensions without bracket
Number of LEDs 1 LED
On Off Switch No

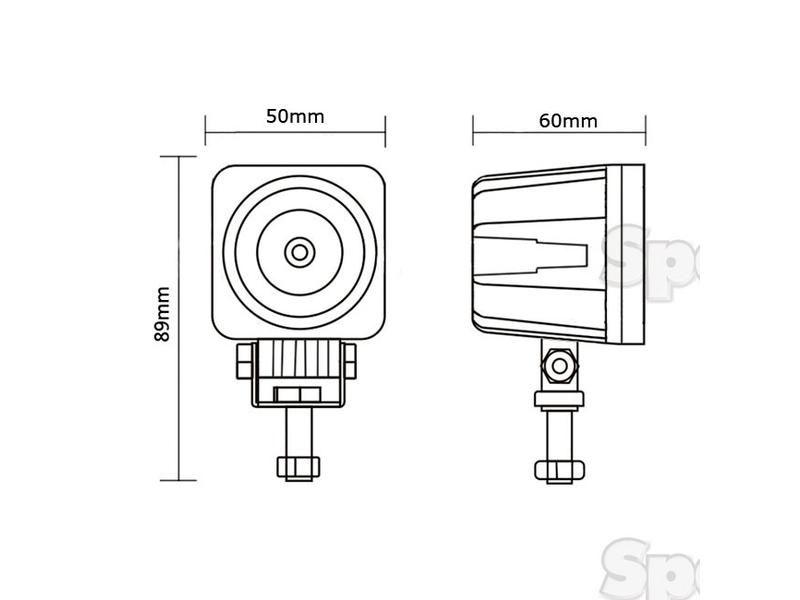

Overall height mm 89
Overall length mm 50
Overall width mm 60
Power Consumption @ 12V 0.59Amps
Power Consumption @ 24V 0.3Amps
Related Products 119256, 119258
RoHS Approved Yes
SAE Approved No
Shape Square
Tariff Code 8539500000
Volts 10-80V
Watts 8W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 55°C
