Cogged Raw Edge Belt - XPA Section - Belt No. XPA1282 for Kuhn
Part Number: S.139174Categories: Engine Fuel and Filters
Part Number: S.139174
Grade: Replacement
Part Details
Cogged Raw Edge Belt - XPA Section - Belt No. XPA1282
Technical Information
| Width (ins) | 1/2 |
| Depth (mm) | 10 |
| Width (mm) | 12.7 |

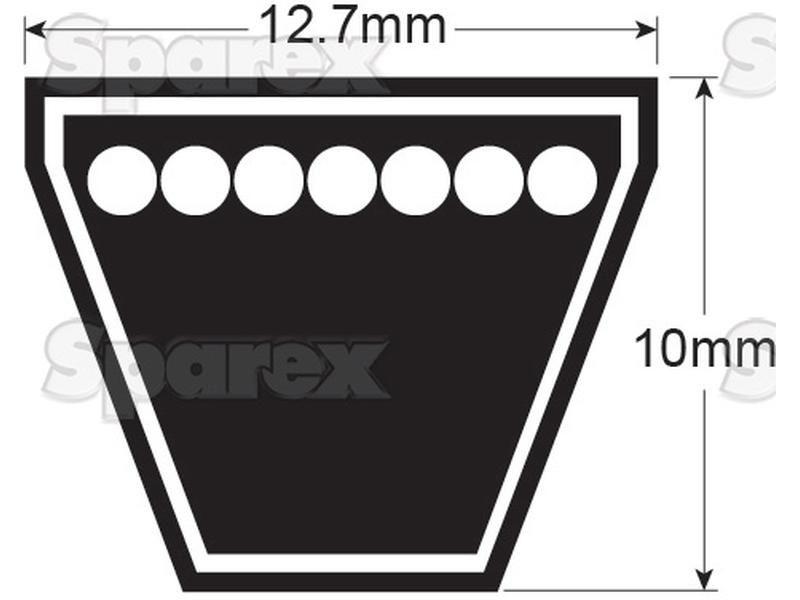

| Top Width x Depth | 12.7 x 10mm (1/2'' x 3/8'') |
| Inside length Li (mm) | 1237 |
| Effective Length (mm) | 1282 |
| Pitch Length (Lp) (Lw): | 1282 |
| Datum length LD (mm) | 1282 |
| Outside length La (mm) | 1300 |
| Related products | 14683 |
| Depth ins | 3/8 |
| Tariff Code | 4010390010 |
| Inside length Li ins | 49 |
| Effective Length (ins) | 50 |
| Outside length La (ins) | 51 |
| Brand | Sparex (Agribelt) |
| Type | Wedge Belt Cogged |
| Section | XPA |
| Belt No. | XPA1282 |
Models
| Kuhn |
|---|
| ALTERNA 400, ALTERNA 500 |
Manufacturer Part Numbers
| Belt References |
|---|
| XPA1282 |
| Kuhn |
| 83101253 |
