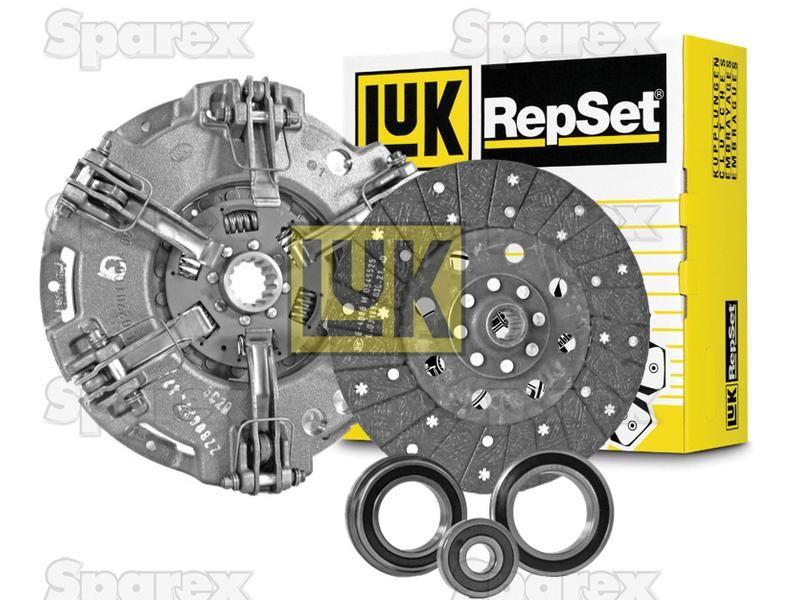

Clutch Kit with Bearings for Fiat 80-90 (90 Series)
Part Number: S.122174Categories: Power Transmission
Part Number: S.122174
Grade: Replacement
Part Details
Clutch Kit with Bearings Cover Size: 280/280mm Cover Type: Dual Cover
Technical Information
| Brand | LUK |
| Captive Disc Material | Organic |
| Captive Disc Spline Quantity | 14 |
| Contains | Dual Cover - 228007717 - Loose Disc - 328018616 - Flywheel Bearing - 410002540 - Transmission Bearing - 500028440 - Transmission Bearing - 500045900 |
| Cover Size mm | 280/280 |
| Cover Type | Dual Cover |
| Cushion | without axial cushion |
| Dual Cover Control | Independent |
| Housing Type | Cast Iron |
| Loose Disc Material | Organic |
| Loose Disc Size mm | 280 |
| Loose Disc Spline ID mm | 22 |
| Loose Disc Spline OD mm | 25 |
| Loose Disc Spline Quantity | 10 |
| Loose Disc Type | Rigid |
| Number of Bolts | 6 x M8 x 50 (1.25) |
| Number of Levers | 6 |
| Tariff Code | 8708939000 |
| Technical Specifications | Cover Size: 280/280mm - Contains: Dual Cover - 228007717 - Loose Disc - 328018616 - Flywheel Bearing - 410002540 - Transmission Bearing - 500028440 - Transmission Bearing - 500045900 |
Manufacturer Part Numbers
| Case IH |
|---|
| 5092787�, 5171137�, 87689657 |
| Fiat |
| 5154879�, 5170404�, 5171137�, 87689657 |
| Ford New Holland |
| 87689657 |
| L.U.K. |
| 228 0077 17, 228007717, 628 1034 10, 628103410 |
