Case/IH MXM Series, Ford New Holland TM/TS Series Starter Motor Iskra | 82021372
Part Number: S.36197Categories: Electrical Accessories
Part Number: S.36197
Grade: Replacement
Part Details

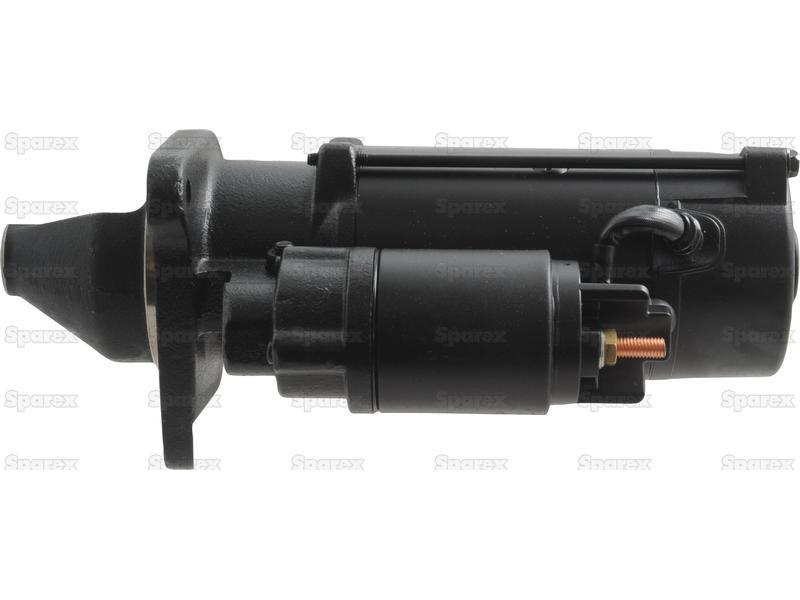

Case/IH MXM Series, Ford New Holland TM/TS Series Starter Motor Iskra | 82021372

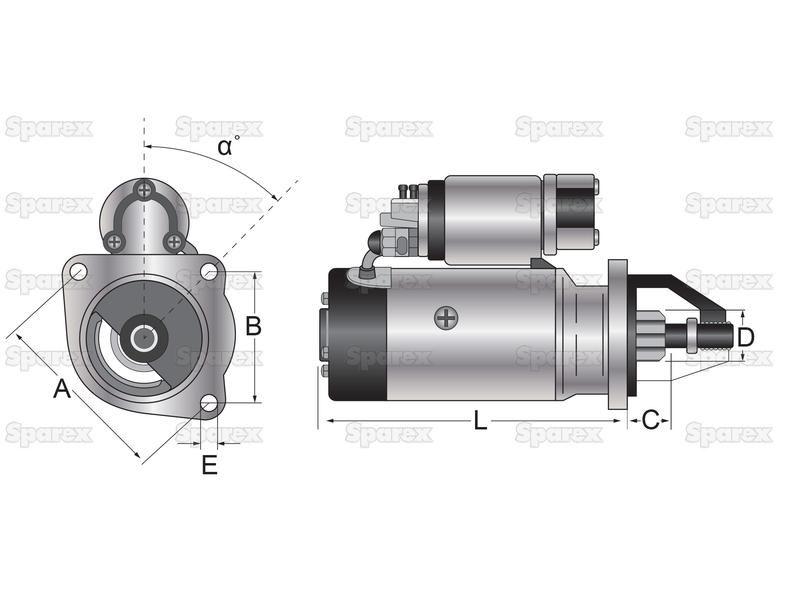

Technical Information
| a Angle ° | 52 |
| A mm | 146 |
| B mm | 92 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 24 |
| D mm | 39.6 |
| Distance Between Teeth mm | 15.4 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 3 |
| Length from Front Mounting Face to Rear mm | 260 |
| Length mm | 381 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Related Products | 38018 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 225.4 |
Models
| Case IH |
|---|
| MXM120 (MXM Series), MXM130 (MXM Series), MXM135 (MXM Series), MXM140 (MXM Series), MXM150 (MXM Series), MXM155 (MXM Series), MXM165 (MXM Series), MXM175 (MXM Series), MXM180 (MXM Series), MXM190 (MXM Series) |
Manufacturer Part Numbers
| Bosch |
|---|
| 9007044014 |
| Case IH |
| 82014160, 82021372, 87318759, 87755550 |
| Claas |
| 0011327170, 11327170 |
| Fiat |
| 82015723, 82991684, 87318759, 87755550 |
| Ford New Holland |
| 82014160, 82021372, 87755550 |
| Iskra |
| IS1016 |
| Lester |
| 18024, 19653 |
| Lucas |
| LRS01637 |
