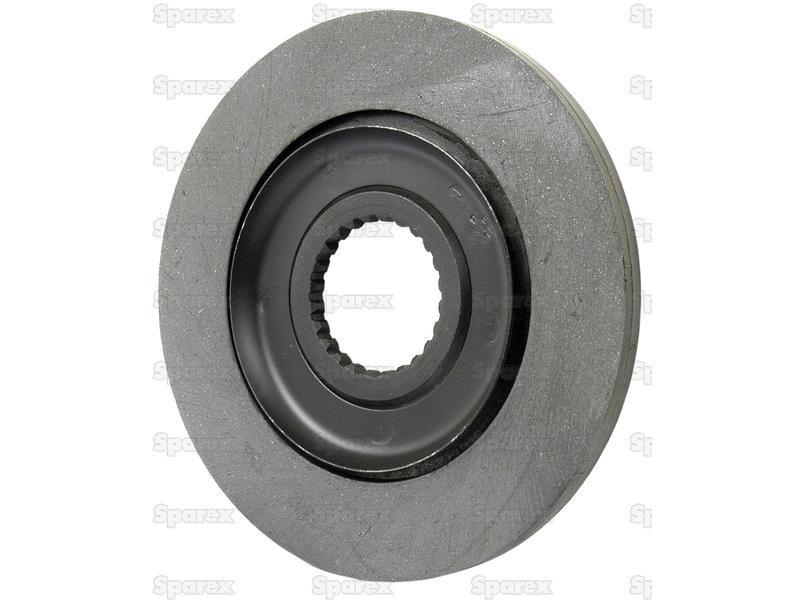

Brake Friction Disc. OD 230mm for Zetor (72112604, 72112680, 80227010)
Part Number: S.64683Categories: Power Transmission
Part Number: S.64683
Grade: Replacement
Part Details

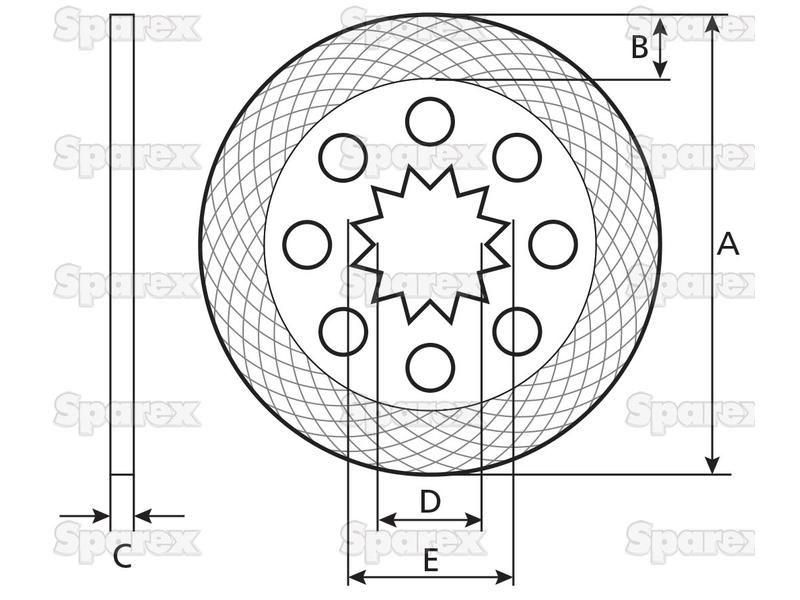

Brake Friction Disc. OD 230mm OD (A) 230mm Lining Width (B) 39.5mm Thickness (C) 12.5mm Spline 24 Splines ID: (D) 61mm Splines OD: (E) 65mm
Technical Information
| A mm | 230 |
| B mm | 39.5 |
| Brand | Sparex |
| C mm | 12.5 |
| D mm | 65 |
| E mm | 61 |
| Lining Material | Organic |
| Lining Width mm | 39.5 |
| Outer Ø mm | 230 |
| Splines | 24 |
| Splines ID mm | 61 |
| Splines OD mm | 65 |
| Tariff Code | 8708309100 |
| Thickness mm | 12.5 |
Models
| Zetor |
|---|
| 10011 (UR2 Series), 10045 (UR2 Series), 10111 (UR2 Series), 10145 (UR2 Series), 10211 (UR2 Series), 10245 (UR2 Series), 11211 (UR2 Series), 11245 (UR2 Series), 12011 (UR2 Series), 12045 (UR2 Series), 12111 (UR2 Series), 12145 (UR2 Series), 12211 (UR2 Series), 12245 (UR2 Series), 14145 (UR2 Series), 14245 (UR2 Series), 16045 (UR2 Series), 16145 (UR2 Series), 16245 (UR2 Series), 3320 (UR1 Series), 3340 (UR1 Series), 4320 (UR1 Series), 4340 (UR1 Series), 5211 (UR1 Series), 5245 (UR1 Series), 5320 (UR1 Series), 5340 (UR1 Series), 5340H, 6211 (UR1 Series), 6245 (UR1 Series), 6320 (UR1 Series), 6340 (UR1 Series), 7211 (UR1 Series), 7245 (UR1 Series), 7245H, 7320 (UR1 Series), 7340 (UR1 Series), 7711 (UR1 Series), 7745 (UR1 Series), 8011 (UR2 Series), 8045 (UR2 Series), 8111 (UR2 Series), 8145 (UR2 Series), 8211 (UR2 Series), 8245 (UR2 Series), 9111 (UR2 Series), 9145 (UR2 Series), 9211 (UR2 Series), 9245 (UR2 Series), CRYSTAL 10011, CRYSTAL 10045, CRYSTAL 10145, CRYSTAL 12011, CRYSTAL 12045, CRYSTAL 12111, CRYSTAL 12145, CRYSTAL 16045, CRYSTAL 8011, CRYSTAL 8045, CRYSTAL 8111, CRYSTAL 8145 |
Manufacturer Part Numbers
| Zetor |
|---|
| 72112604, 72112680, 80227010 |
