Battioni Pagani Mec 9000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9003300041)

Part Number: S.101803Categories: Muck Spreader
Battioni Pagani Mec 9000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9003300041)
Battioni Pagani Mec 9000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9003300041)
Battioni Pagani Mec 9000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9003300041)
Battioni Pagani Mec 9000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9003300041)

Part Number: S.101803

Grade: Replacement

Part Details

Battioni Pagani Mec 9000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9003300041) Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 9030Oil Tank Capacity (ltrs.): 2.5LMax. Working Pressure: 1.5 BarVacuum Max.: 0.95 BarNot supplied with 2" Pressure Relief Valve

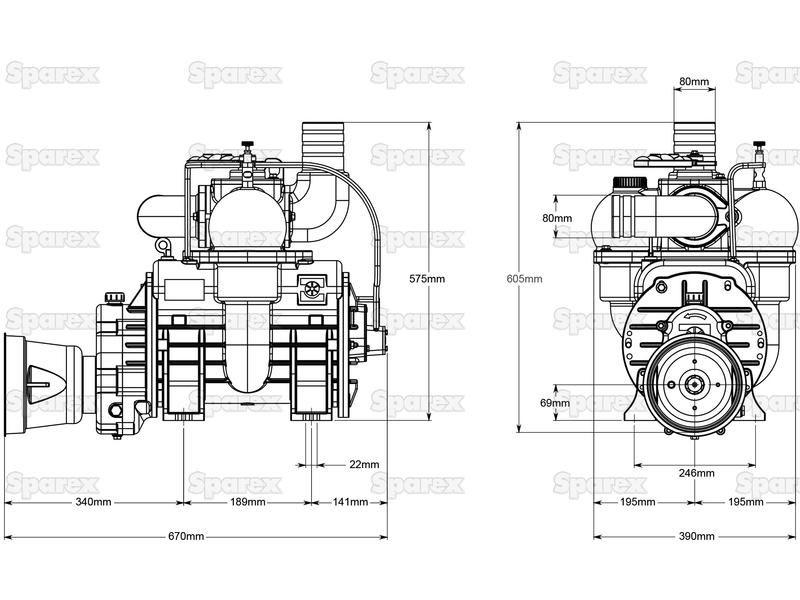

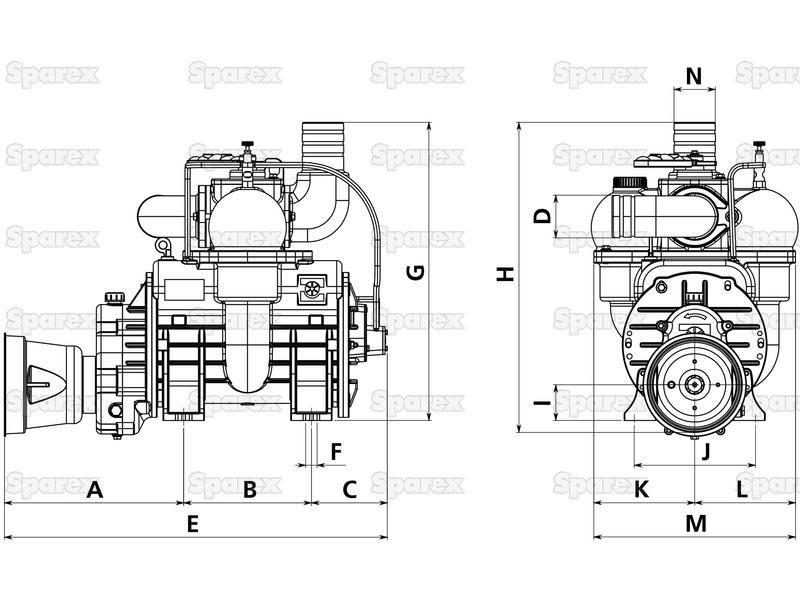

Technical Information

A mm 340
B mm 189
Brand Battioni
C mm 141
Capacity LPM 9030
D mm 80
Drive Type PTO driven
E mm 670
F mm 22
G mm 575
H mm 605
Height mm 605
I mm 69
J mm 246
K mm 195
L mm 195
Length mm 670
M mm 390
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC9000M
N mm 80
Notes Not supplied with 2" Pressure Relief Valve
OEM Primary Reference 9003300041
Oil Tank Capacity ltr 2.5
Power Absorption Max. Pressure kw 26
Power Absorption Max. Vacuum kw 17

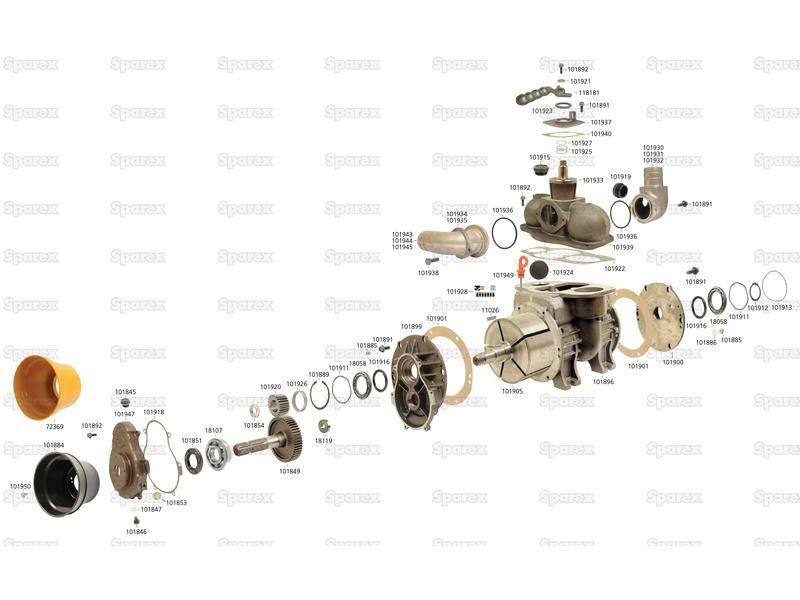

Related Products 101845, 101846, 101847, 101849, 101851, 101853, 101855, 101884, 101885, 101886, 101889, 101891, 101892, 101896, 101899, 101900, 101901, 101905, 101911, 101912, 101913, 101915, 101916, 101918, 101919, 101920, 101921, 101922, 101923, 101924, 101925, 101926, 101927, 101928, 101929, 101931, 101933, 101934, 101936, 101937, 101938, 101940, 101944, 101945, 101947, 101949, 101950, 101968, 101971, 102526, 105910, 105911, 11026, 18058, 18107, 18119, 59478, 59489, 72369, 79297, 143449
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC9000M

Manufacturer Part Numbers

Battioni Pagani Pomp
9003300041
