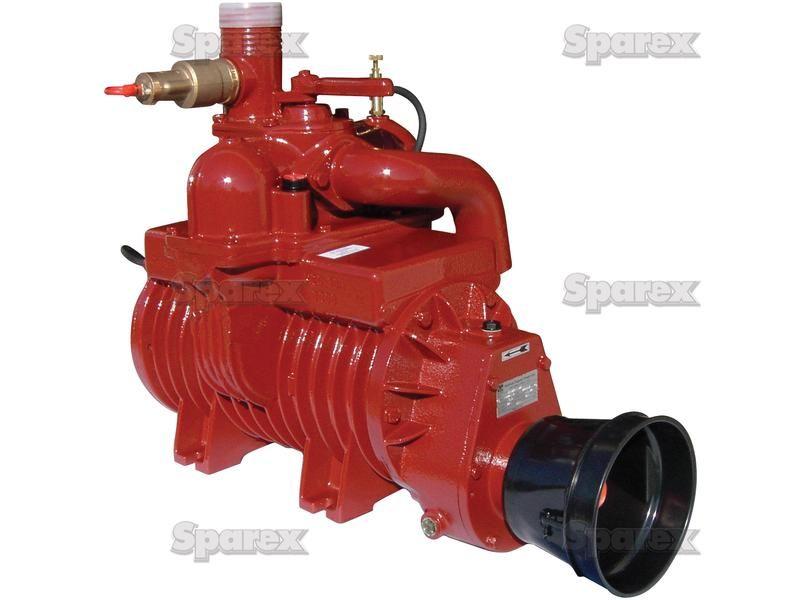

Battioni Pagani Mec 8000 M Cardan Shaft Vacuum Pump | 540 r.p.m

Part Number: S.101802Categories: Muck Spreader
Battioni Pagani Mec 8000 M Cardan Shaft Vacuum Pump | 540 r.p.m
Battioni Pagani Mec 8000 M Cardan Shaft Vacuum Pump | 540 r.p.m
Battioni Pagani Mec 8000 M Cardan Shaft Vacuum Pump | 540 r.p.m
Battioni Pagani Mec 8000 M Cardan Shaft Vacuum Pump | 540 r.p.m

Part Number: S.101802

Grade: Replacement

Part Details

Battioni Pagani Mec 8000 M Cardan Shaft Vacuum Pump | 540 r.p.m Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 8100Oil Tank Capacity (ltrs.): 3.8LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 BarNot supplied with 1 1/2" Pressure Relief Valve

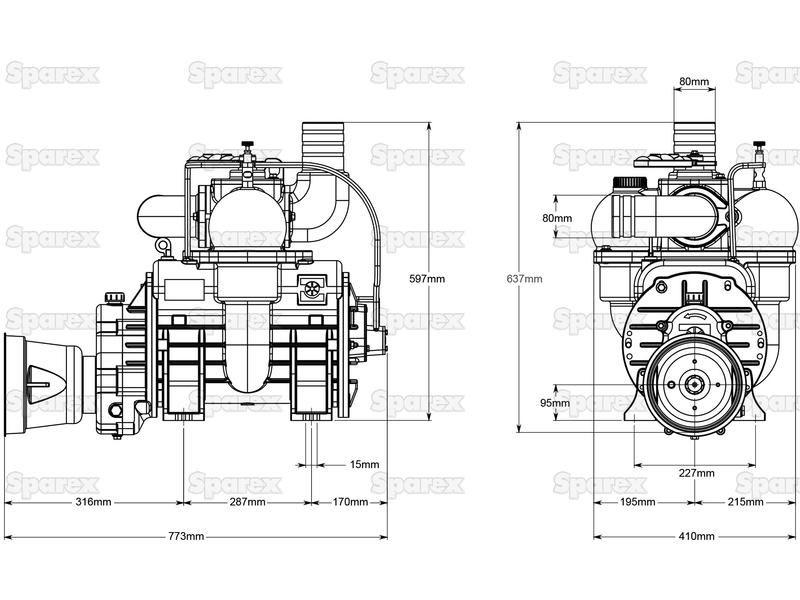

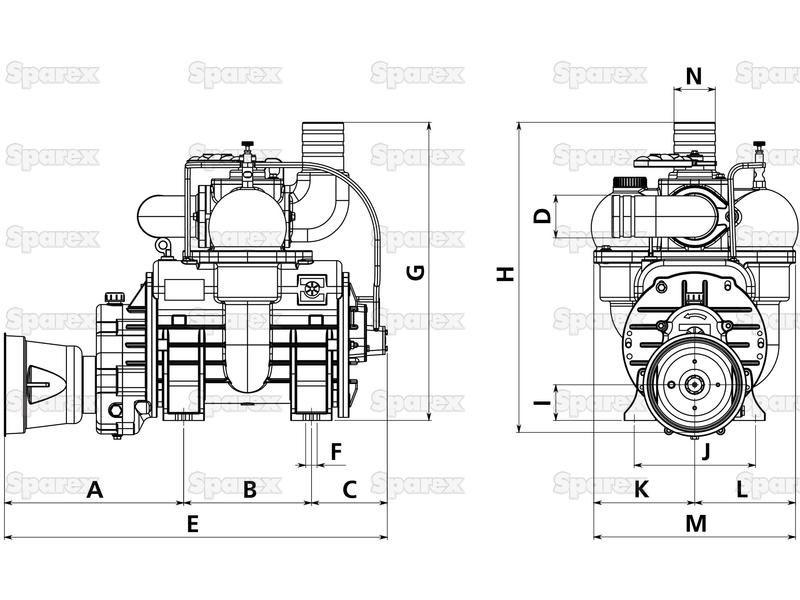

Technical Information

A mm 316
B mm 287
Brand Battioni
C mm 170
Capacity LPM 8100
D mm 80
Drive Type PTO driven
E mm 773
F mm 15
G mm 597
H mm 637
Height mm 637
I mm 95
J mm 227
K mm 195
L mm 215
Length mm 813
M mm 410
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC8000M
N mm 80
Notes Not supplied with 1 1/2'' Pressure Relief Valve
OEM Primary Reference 9000700001
Oil Tank Capacity ltr 3.8
Power Absorption Max. Pressure kw 27
Power Absorption Max. Vacuum kw 16

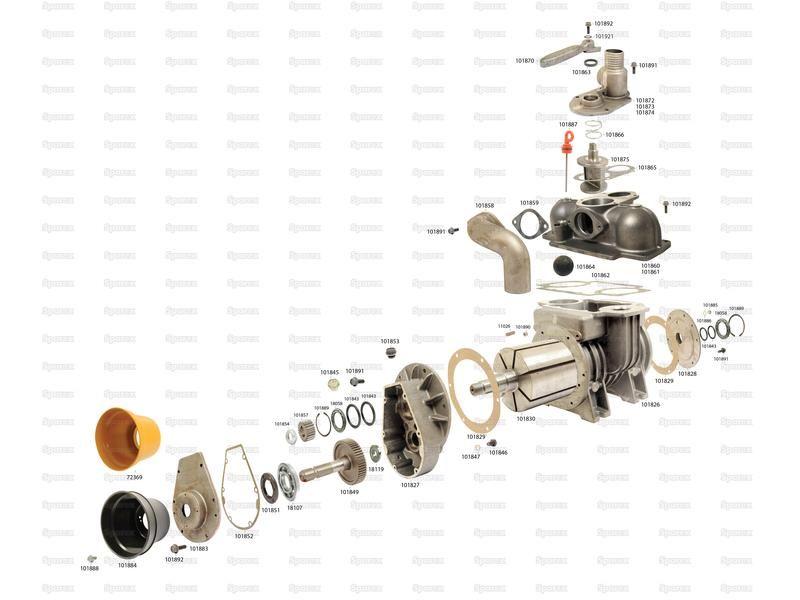

Related Products 101829, 101826, 101827, 101828, 101832, 101843, 101845, 101846, 101847, 101849, 101851, 101852, 101853, 101855, 101857, 101858, 101859, 101860, 101862, 101863, 101864, 101865, 101866, 101870, 101872, 101873, 101875, 101883, 101884, 101885, 101886, 101887, 101888, 101889, 101890, 101891, 101892, 101966, 101967, 101971, 102524, 102525, 105910, 105911, 11026, 18058, 18107, 18119, 59478, 59488, 72369, 79297
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 410

Manufacturer Part Numbers

Battioni Pagani Pomp
9000700001
