Battioni Pagani Mec 6500 M Cardan Shaft Vacuum Pump | 540 r.p.m

Part Number: S.101801Categories: Muck Spreader
Battioni Pagani Mec 6500 M Cardan Shaft Vacuum Pump | 540 r.p.m
Battioni Pagani Mec 6500 M Cardan Shaft Vacuum Pump | 540 r.p.m
Battioni Pagani Mec 6500 M Cardan Shaft Vacuum Pump | 540 r.p.m
Battioni Pagani Mec 6500 M Cardan Shaft Vacuum Pump | 540 r.p.m

Part Number: S.101801

Grade: Replacement

Part Details

Battioni Pagani Mec 6500 M Cardan Shaft Vacuum Pump | 540 r.p.m Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 7000Oil Tank Capacity (ltrs.): 3.1LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 BarNot supplied with 1 1/2" Pressure Relief Valve

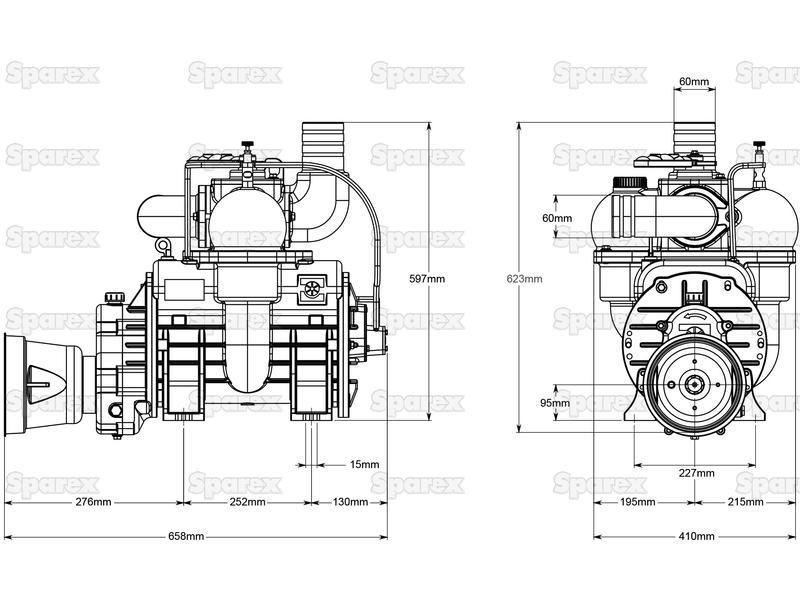

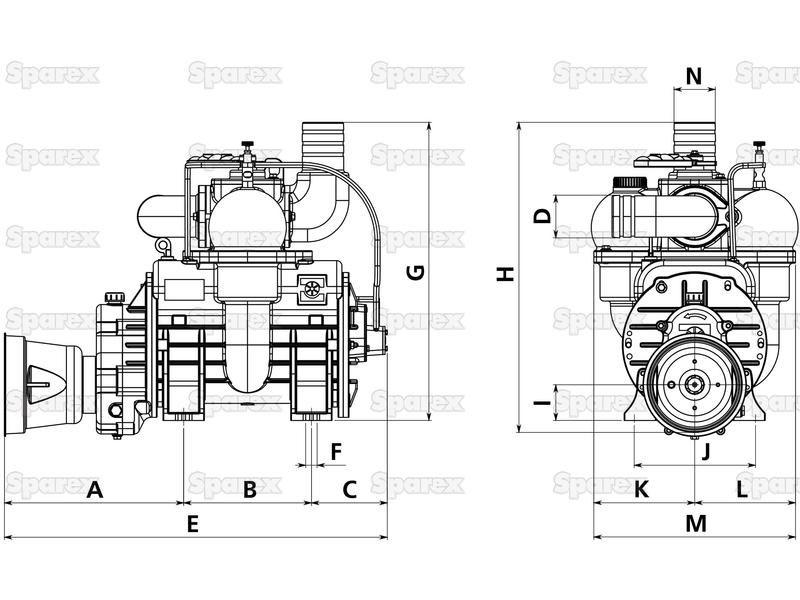

Technical Information

A mm 276
B mm 252
Brand Battioni
C mm 130
Capacity LPM 7000
D mm 60
Drive Type PTO driven
E mm 658
F mm 15
G mm 597
H mm 623
Height mm 623
I mm 95
J mm 227
K mm 195
L mm 215
Length mm 658
M mm 410
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC6500M
N mm 60
Notes Not supplied with 1 1/2'' Pressure Relief Valve
OEM Primary Reference 9000600001
Oil Tank Capacity ltr 3.1
Power Absorption Max. Pressure kw 24
Power Absorption Max. Vacuum kw 12.5
Related Products 101829, 101831, 101825, 101827, 101828, 101843, 101845, 101846, 101847, 101849, 101851, 101852, 101853, 101855, 101857, 101858, 101859, 101860, 101862, 101863, 101864, 101865, 101866, 101870, 101872, 101873, 101875, 101883, 101884, 101885, 101886, 101887, 101888, 101889, 101890, 101891, 101892, 101964, 101971, 102522, 102523, 105910, 105911, 11026, 18058, 18107, 18119, 59478, 59488, 72263, 72369, 79297
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 410

Models

Battioni Pagani Pomp
MEC6500M

Manufacturer Part Numbers

Battioni Pagani Pomp
9000600001
