Battioni Pagani Mec 5000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9000500001)

Part Number: S.101800Categories: Muck Spreader
Battioni Pagani Mec 5000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9000500001)
Battioni Pagani Mec 5000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9000500001)
Battioni Pagani Mec 5000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9000500001)
Battioni Pagani Mec 5000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9000500001)

Part Number: S.101800

Grade: Replacement

Part Details

Battioni Pagani Mec 5000 M Cardan Shaft Vacuum Pump | 540 r.p.m (9000500001) Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 6150Oil Tank Capacity (ltrs.): 2.5LMax. Working Pressure: 1.5 BarVacuum Max.: 0.9 BarNot supplied with 1 1/2" Pressure Relief Valve

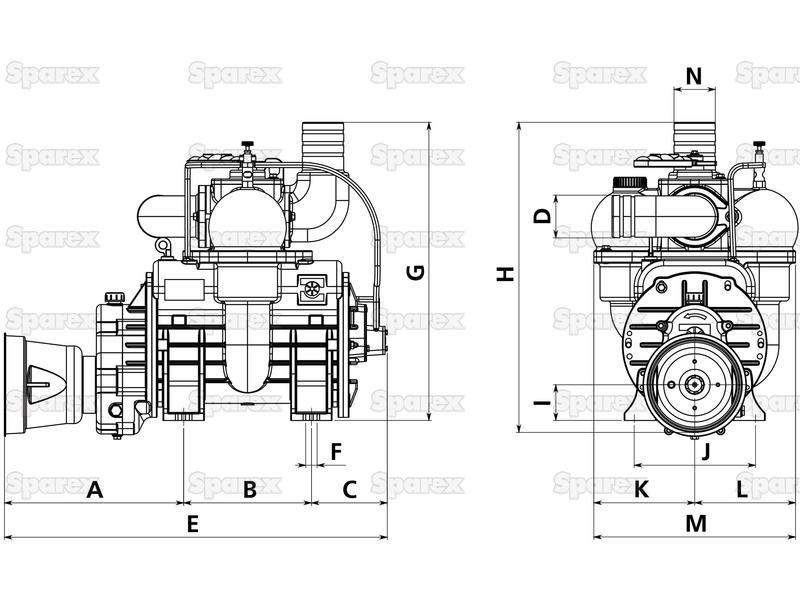

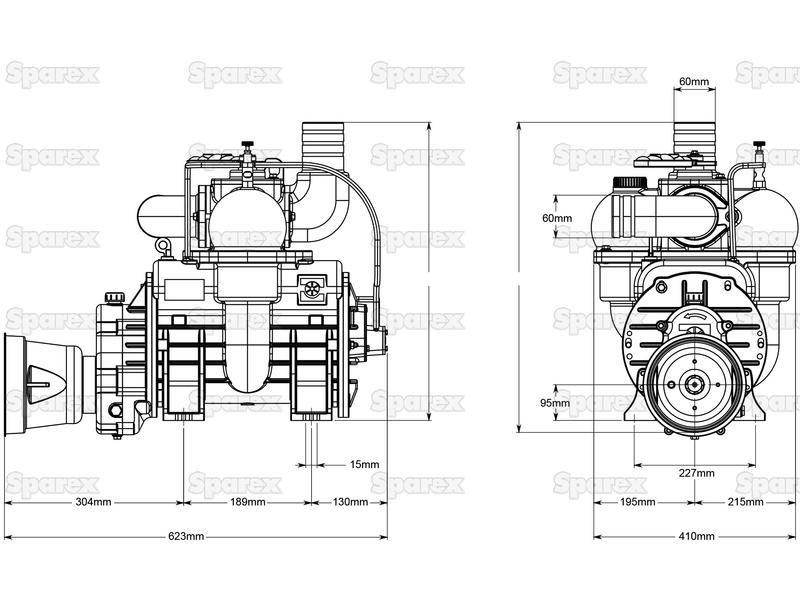

Technical Information

A mm 304
B mm 189
Brand Battioni
C mm 130
Capacity LPM 6150
D mm 60
Drive Type PTO driven
E mm 623
F mm 15
G mm 597
H mm 637
Height mm 637
I mm 95
J mm 227
K mm 195
L mm 215
Length mm 623
M mm 410
Maximum RPM 540
Maximum Working Pressure 1.5 Bar
Model MEC5000M
N mm 60
Notes Not supplied with 1 1/2'' Pressure Relief Valve
OEM Primary Reference 9000500001
Oil Tank Capacity ltr 2.5
Power Absorption Max. Pressure kw 21
Power Absorption Max. Vacuum kw 11
Related Products 101829, 101830, 101824, 101827, 101828, 101843, 101845, 101846, 101847, 101848, 101851, 101852, 101853, 101854, 101856, 101858, 101859, 101860, 101862, 101863, 101864, 101865, 101866, 101870, 101872, 101873, 101875, 101883, 101884, 101885, 101886, 101887, 101888, 101889, 101890, 101891, 101892, 101962, 101963, 101971, 102520, 102521, 105910, 105911, 11026, 18058, 18107, 18119, 59478, 59488, 72369, 79297
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.9 Bar
Width mm 410

Models

Battioni Pagani Pomp
MEC5000M

Manufacturer Part Numbers

Battioni Pagani Pomp
9000500001
