Battioni Pagani Mec 13500 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003800041)

Part Number: S.101805Categories: Muck Spreader
Battioni Pagani Mec 13500 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003800041)
Battioni Pagani Mec 13500 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003800041)
Battioni Pagani Mec 13500 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003800041)

Part Number: S.101805

Grade: Replacement

Part Details

Battioni Pagani Mec 13500 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003800041) Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 13845Oil Tank Capacity (ltrs.): 3.5LMax. Working Pressure: 1.5 barVacuum Max.: 0.95 BarNot supplied with 2" Pressure Relief Valve

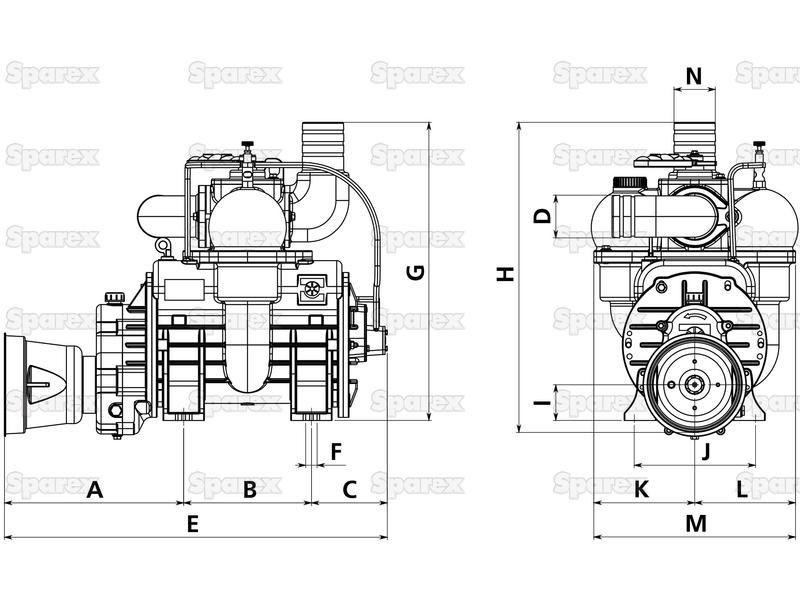

Technical Information

A mm 391
B mm 247
Brand Battioni
C mm 192
Capacity LPM 13845
D mm 100
Drive Type PTO driven
E mm 830
F mm 22
G mm 575
H mm 605
Height mm 605
I mm 69
J mm 246
K mm 195
L mm 195
Length mm 830
M mm 390
Maximum RPM 540
Maximum Working Pressure 1.5 bar
Model MEC13500M
N mm 100
Notes Not supplied with 2" Pressure Relief Valve
OEM Primary Reference 9003800041
Oil Tank Capacity ltr 3.5
Power Absorption Max. Pressure kw 37
Power Absorption Max. Vacuum kw 25

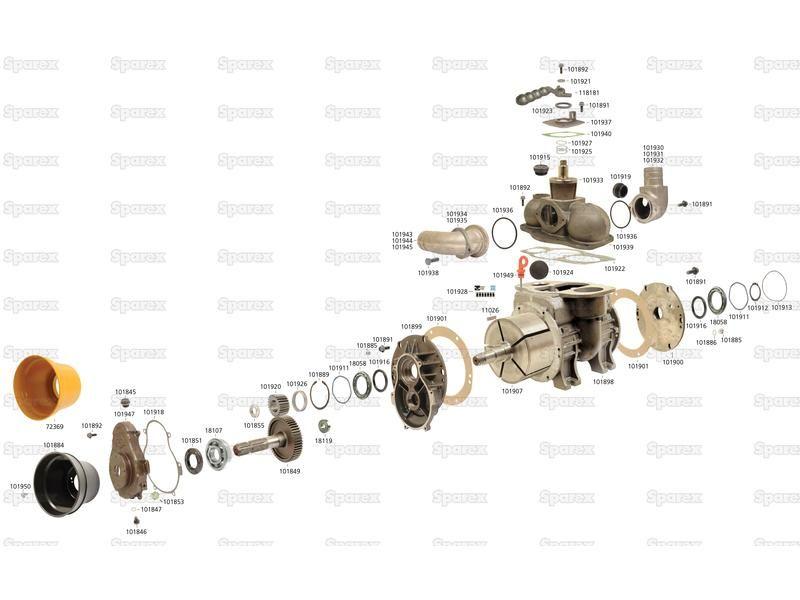

Related Products 101845, 101846, 101847, 101849, 101851, 101853, 101855, 101884, 101885, 101886, 101889, 101891, 101892, 101898, 101899, 101900, 101901, 101907, 101911, 101912, 101913, 101915, 101916, 101918, 101919, 101920, 101921, 101922, 101923, 101924, 101925, 101926, 101927, 101928, 101929, 101931, 101933, 101934, 101936, 101937, 101938, 101940, 101944, 101945, 101947, 101949, 101950, 101970, 101971, 102528, 105910, 105911, 11026, 18058, 18107, 18119, 59478, 59489, 72369, 79297, 143449
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC13500M

Manufacturer Part Numbers

Battioni Pagani Pomp
9003800041
