Battioni Pagani Mec 13500 D Carden Shaft Direct Drive Vacuum Pump | 1000 r.p.m

Part Number: S.101817Categories: Muck Spreader
Battioni Pagani Mec 13500 D Carden Shaft Direct Drive Vacuum Pump | 1000 r.p.m
Battioni Pagani Mec 13500 D Carden Shaft Direct Drive Vacuum Pump | 1000 r.p.m
Battioni Pagani Mec 13500 D Carden Shaft Direct Drive Vacuum Pump | 1000 r.p.m
Battioni Pagani Mec 13500 D Carden Shaft Direct Drive Vacuum Pump | 1000 r.p.m

Part Number: S.101817

Grade: Replacement

Part Details

Battioni Pagani Mec 13500 D Carden Shaft Direct Drive Vacuum Pump | 1000 r.p.m Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 13845Oil Tank Capacity (ltrs.): 3.5LMax. Working Pressure: 1.5 BarVacuum Max.: 0.95 BarNot supplied with 2" Pressure Relief Valve

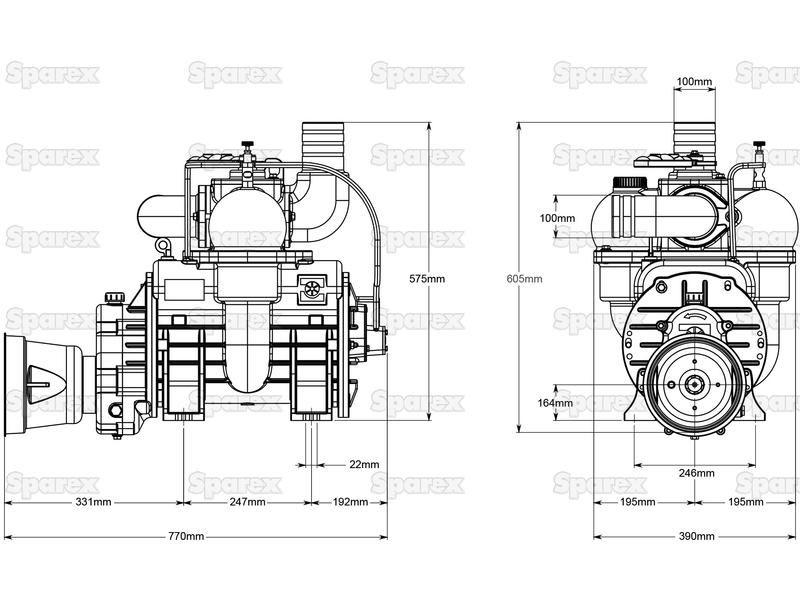

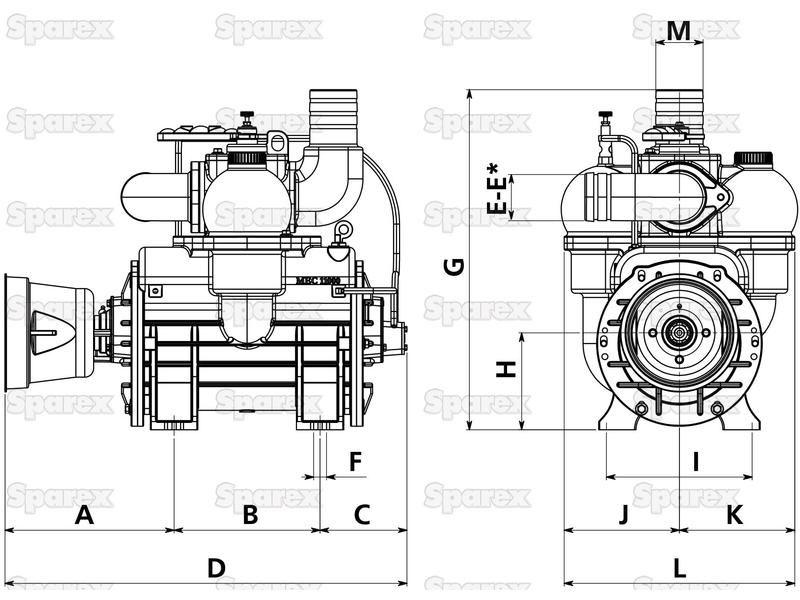

Technical Information

A mm 331
B mm 247
Brand Battioni
C mm 192
Capacity LPM 13845
D mm 770
Drive Type PTO driven
E mm 100
F mm 22
G mm 575
H mm 164
Height mm 575
I mm 246
J mm 195
K mm 195
L mm 390
Length mm 770
M mm 100
Maximum RPM 1000
Maximum Working Pressure 1.5 Bar
Model MEC13500D
Notes Not supplied with 2" Pressure Relief Valve
OEM Primary Reference 9013827041
Oil Tank Capacity ltr 3.5
P mm 76-80
Power Absorption Max. Pressure kw 36
Power Absorption Max. Vacuum kw 24
Related Products 101847, 101876, 101877, 101882, 101884, 101885, 101886, 101889, 101891, 101892, 101898, 101900, 101901, 101904, 101911, 101912, 101913, 101914, 101915, 101916, 101919, 101921, 101922, 101923, 101924, 101925, 101927, 101928, 101929, 101931, 101933, 101934, 101936, 101937, 101938, 101940, 101944, 101945, 101949, 101950, 101970, 101971, 102528, 105910, 105911, 11030, 18058, 59478, 59489, 72369, 79297, 852, 143449, 143490
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC13500D

Manufacturer Part Numbers

Battioni Pagani Pomp
9013827041
