Battioni Pagani Mec 11000 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003700075)

Part Number: S.101804Categories: Muck Spreader
Battioni Pagani Mec 11000 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003700075)
Battioni Pagani Mec 11000 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003700075)
Battioni Pagani Mec 11000 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003700075)
Battioni Pagani Mec 11000 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003700075)

Part Number: S.101804

Grade: Replacement

Part Details

Battioni Pagani Mec 11000 M Cardan Shaft Vacuum Pump 540 r.p.m | (9003700075) Rotation:Anti-clockwise rotation Lubrication:Manual lubricationCapacity LPM: 11137Oil Tank Capacity (ltrs.): 3LMax. Working Pressure: 1.5 barVacuum Max.: 0.95 BarNot supplied with 2" Pressure Relief Valve

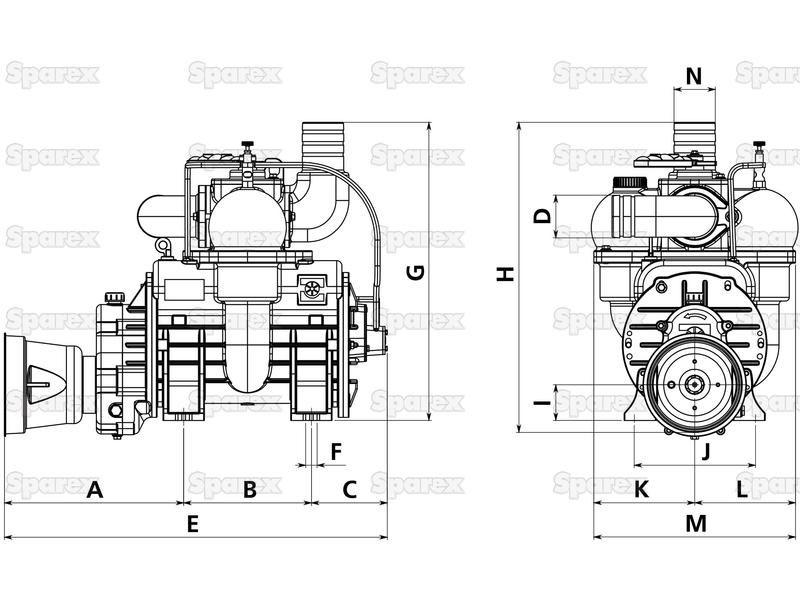

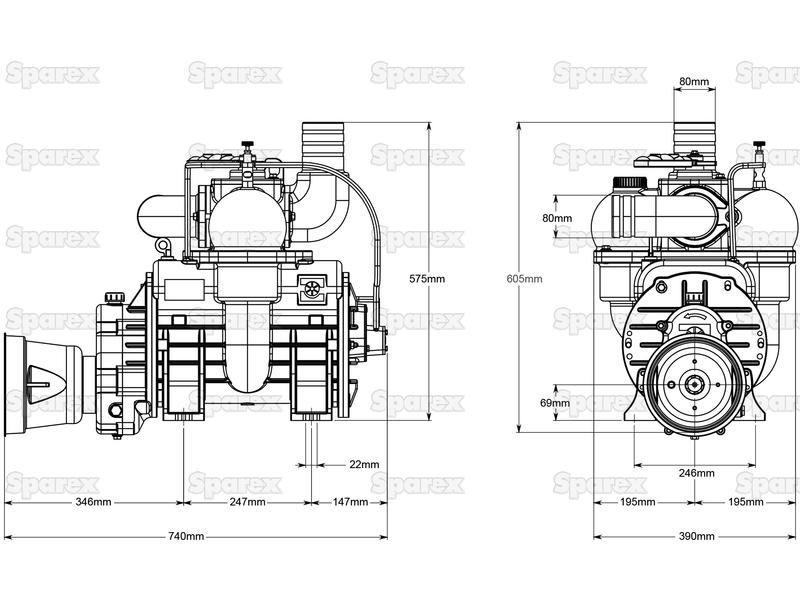

Technical Information

A mm 346
B mm 247
Brand Battioni
C mm 147
Capacity LPM 11137
D mm 80
Drive Type PTO driven
E mm 740
F mm 22
G mm 575
H mm 605
Height mm 605
I mm 69
J mm 246
K mm 195
L mm 195
Length mm 740
M mm 390
Maximum RPM 540
Maximum Working Pressure 1.5 bar
Model MEC11000M
N mm 80
Notes Not supplied with 2" Pressure Relief Valve
OEM Primary Reference 9003700075
Oil Tank Capacity ltr 3
Power Absorption Max. Pressure kw 31
Power Absorption Max. Vacuum kw 21

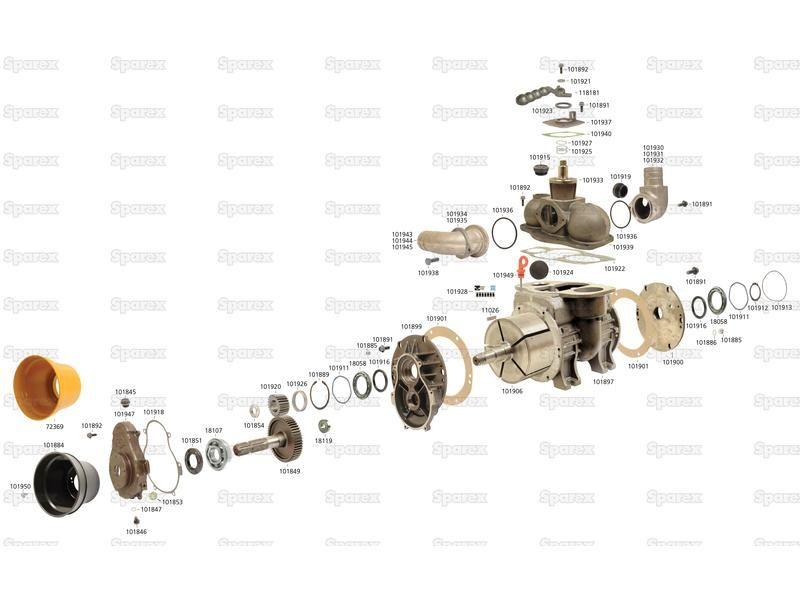

Related Products 101845, 101846, 101847, 101849, 101851, 101853, 101855, 101884, 101885, 101886, 101889, 101891, 101892, 101897, 101899, 101900, 101901, 101906, 101911, 101912, 101913, 101915, 101916, 101918, 101919, 101920, 101921, 101922, 101923, 101924, 101925, 101926, 101927, 101928, 101929, 101931, 101933, 101934, 101936, 101937, 101938, 101940, 101944, 101945, 101947, 101949, 101950, 101969, 101971, 102527, 105910, 105911, 11026, 18058, 18107, 18119, 59478, 59489, 72369, 79297, 143449
Rotation Anti-clockwise rotation
Shaft 1 3/8 - 6 splines
Tariff Code 8414102530
Vacuum Max. Hg 0.95 Bar
Width mm 390

Models

Battioni Pagani Pomp
MEC11000M

Manufacturer Part Numbers

Battioni Pagani Pomp
9003700075
