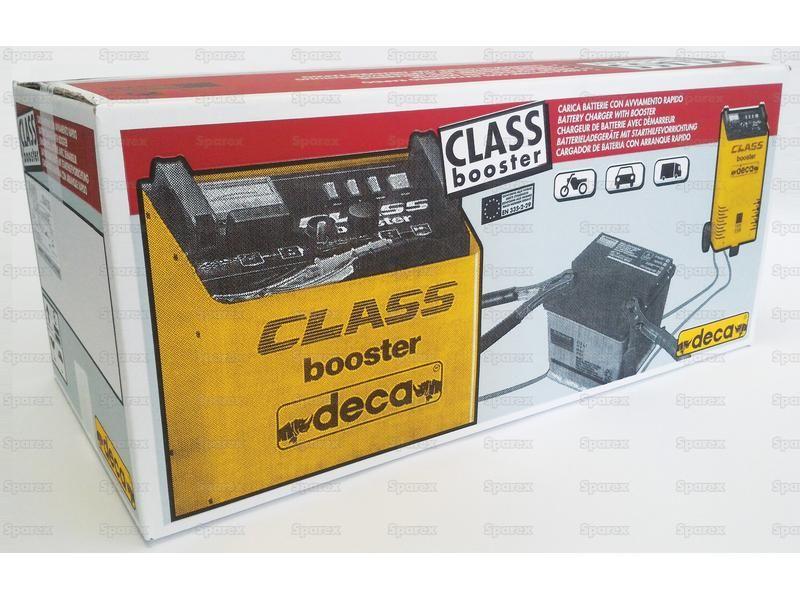

Battery Charger with Booster function - Trolley - 12/24, 35 - 500Ah
Part Number: S.129500Categories: Electrical Accessories
Part Number: S.129500
Grade: Replacement
Part Details
Battery Charger with Booster function - Trolley - 12/24, 35 - 500Ah Watts: 1300 - 6000W, Charging Current: 26A, Effective Charging Current: 40A, Quickstart Current: 270A, Effective Quickstart Current: 400A, Battery Capacity: 35 - 500Ah, Height: 640mm, Width: 400mm, Depth: 300mm, Input voltage: 1 Ph x 230VComes with clampsCharging current settingOverload protectionInversions of polarity and short circuits protectionManual charge breakerIf the battery is totally discharged, before using the booster function, you can charge it for 10/15min to increase the jump start success.
Technical Information
| Battery Capacity | 35 - 500 |
| Battery type | WET MF, AGM |
| Brand | deca |
| Cable length Metres | Input: 2M, Clamp: 1.4M (-) 1.5M (+) |
| Charging Current | 26 |
| Charging Position | 4 |
| Depth mm | 300 |
| Effective Charging Current | 40 |
| Effective Quickstart Current | 400 |
| Height mm | 640 |
| Input voltage | 1 Ph x 230 |
| Output voltage | 12/24 |
| Plug Type | European |
| Quickstart Current | 270 |
| Tariff Code | 8504405590 |
| Watts | 1300 - 6000W |
| Width mm | 400 |
