Ball Hitch Pin, 1250Kg (Long) for Case IH 4230 (4200 Utility Series)
Part Number: S.3210Categories: PTO (shaft), Linkage
Part Number: S.3210
Grade: Replacement
Part Details

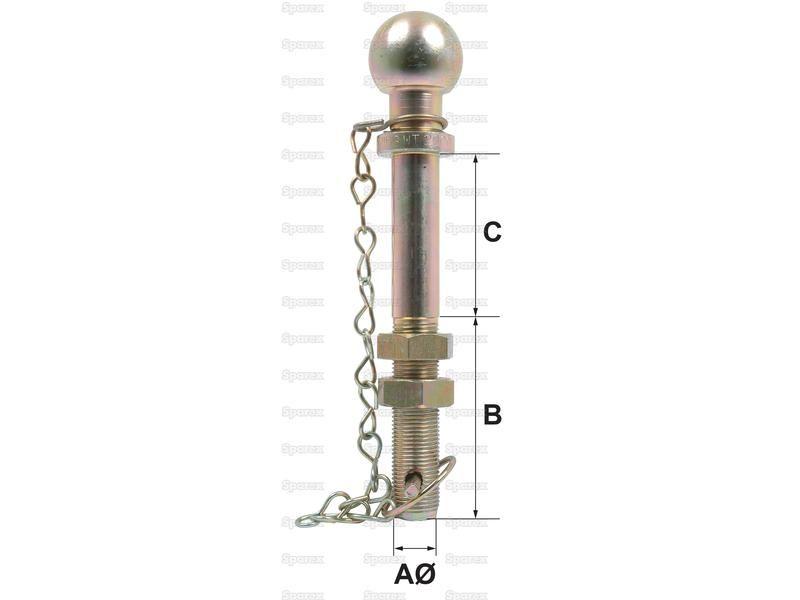

Ball Hitch Pin, 1250Kg (Long) Ball Size: 50mm, A Ø22mm (7/8''), B: 100mm, C: 85mm, Finish: Zinc Plated.
Technical Information
| A Ø ins | 7/8 |
| A Ø mm | 22 |
| B mm | 100 |
| Ball Size mm | 50 |
| Brand | Sparex |
| C mm | 85 |
| Finish | Zinc Plated |
| Maximum Static Load kgs | 1250 |
| Notes | Must be used with locknuts fully tightened and linch pin fitted |
| Pin | S.147 |
| Related Products | 14460, 903210 |
| Tariff Code | 8716909000 |
| Total Pin Length | 185mm (B+C) |
| Type | Long |
