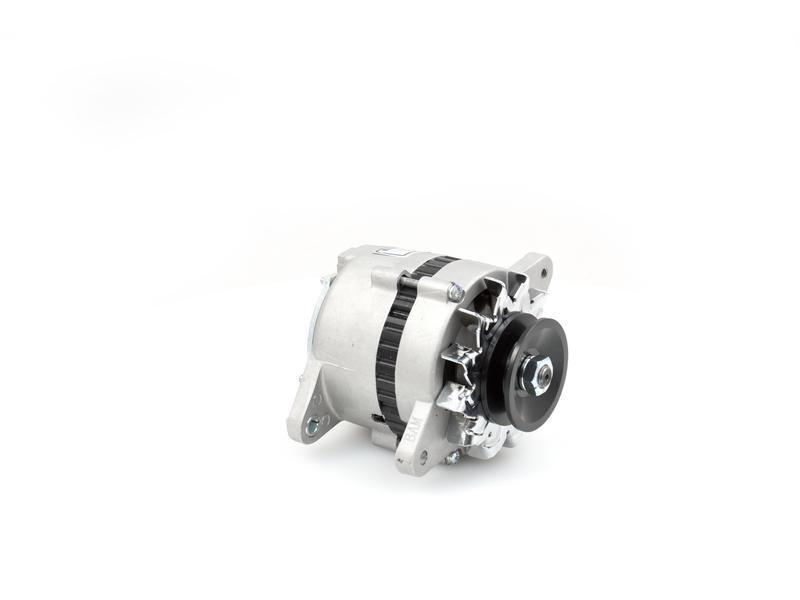

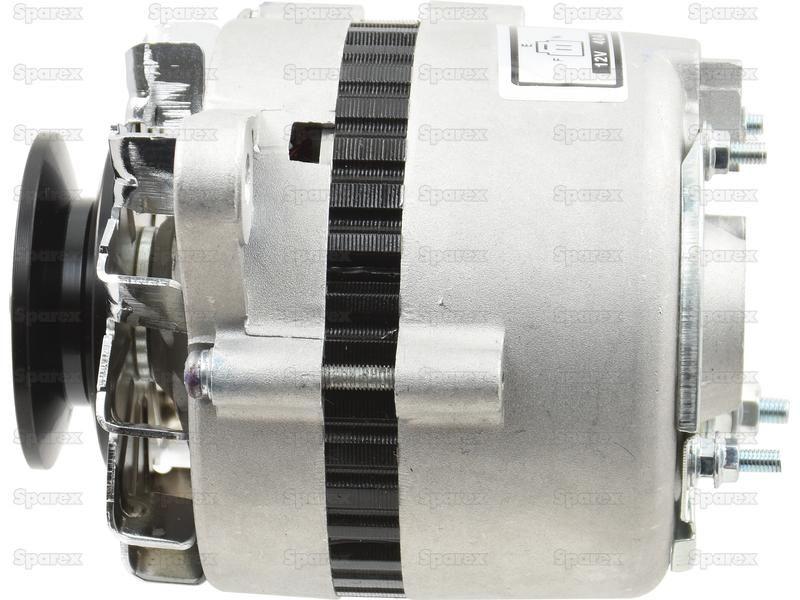

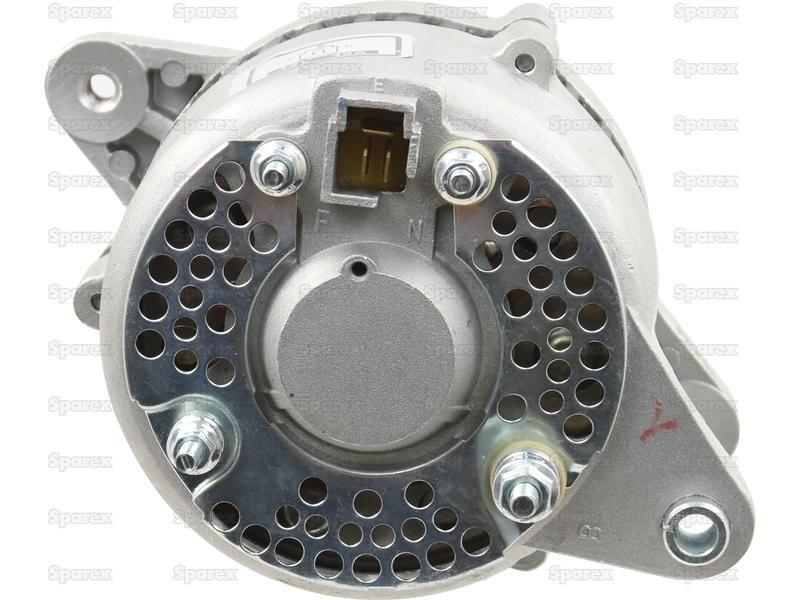

Alternator (Sparex) - 12V, 35 Amps for Kubota L2601 (L Series Compact)
Part Number: S.22423Categories: Electrical Accessories
Part Number: S.22423
Grade: Replacement
Part Details
Alternator (Sparex) - 12V, 35 Amps Pulley type: Single Groove, Pulley Ø: 79mm
Technical Information
| Volts | 12V |
| Height (mm) | 140 |
| Length (mm) | 190 |
| Width (mm) | 190 |
| Shaft Length (mm) | 20 |
| Amps | 35 |
| Pulley Ø (mm) | 79 |
| Mounting Hole mm | 8.5 |
| B (mm) | 8.5 |
| Tariff Code | 8511500090 |
| Belt pulley width (mm) | 9.7 |
| Connection Type | Connector |
| Fan Type | External |
| Nut | Hex Nut |
| Notes | Regulator not incorporated in this part |
| Pulley type | Single Groove |
| Brand | Sparex |
| Number of holes | Two |
| Supplied with Fan | Yes |
Manufacturer Part Numbers
| Kubota |
|---|
| 1522164012, 15221-64012, 15321-64010, 1532164012, 15321-64012 |
