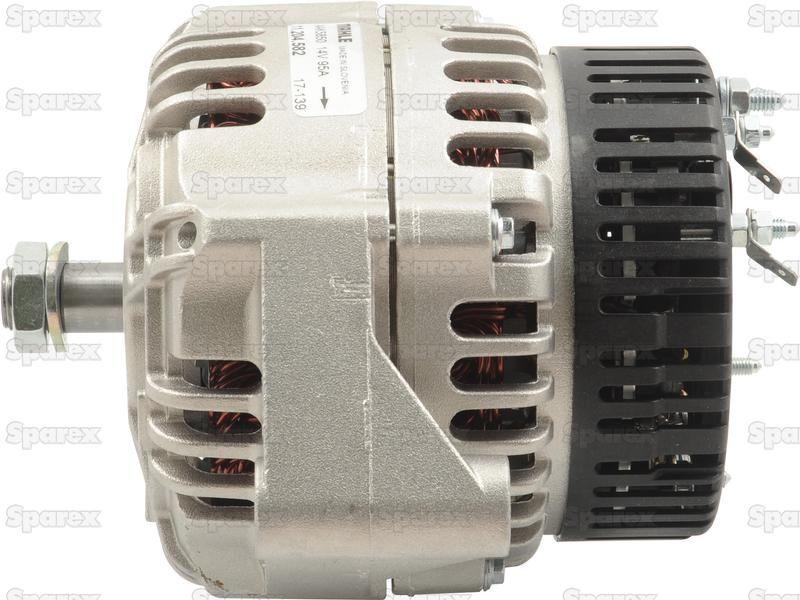

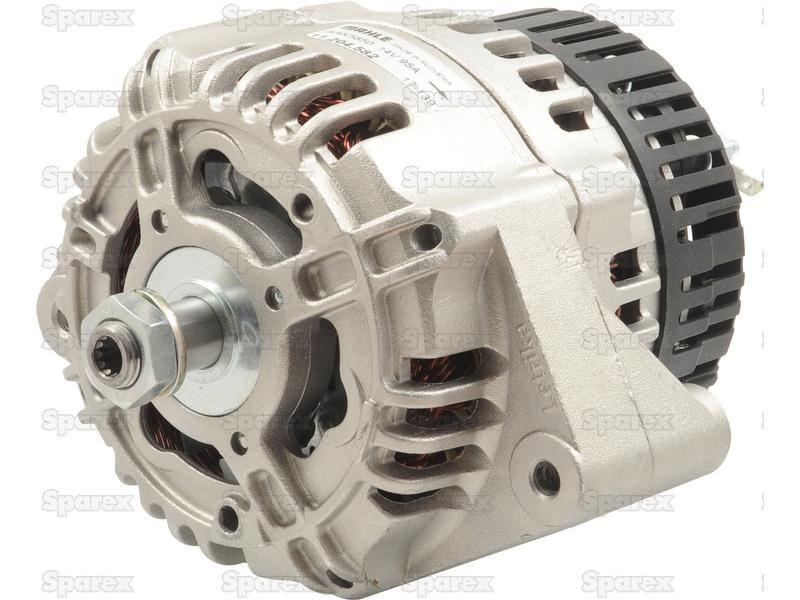

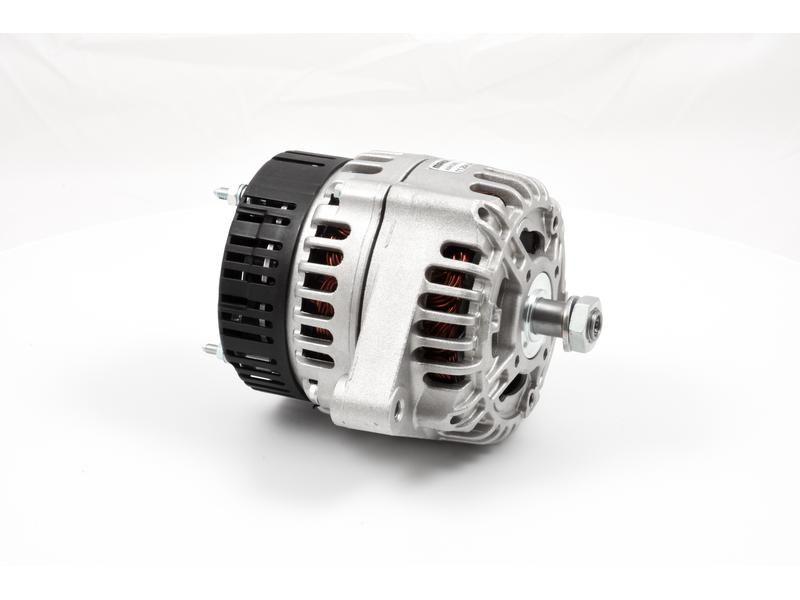

Alternator (Mahle) - 14V, 95 Amps for Same Titan 160 (Titan)
Part Number: S.36166Categories: Electrical Accessories
Part Number: S.36166
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 95 Amps
Technical Information
| a Angle ° | -30 |
| Volts | 14V |
| Height (mm) | 177.8 |
| Width (mm) | 187.3 |
| Length (mm) | 254 |
| Shaft Length (mm) | 27 |
| Related products | 35916,137287 |
| A (mm) | 56 |
| Mounting Hole mm | 8.2 |
| B (mm) | 8.2 |
| Tariff Code | 8511500090 |
| C (mm) | 86 |
| Amps | 95 |
| Connection 3 | B+ |
| Connection 4 | B- |
| Type | B1 |
| Connection 2 | D+ |
| Fan Type | External |
| Nut | Hex Nut |
| Brand | Mahle |
| Connection Type | Spade Terminal |
| Shaft Type | Splined |
| Number of holes | Two |
| Connection 1 | W |
| Pulley type | Without |
| Supplied with Fan | Yes |
Manufacturer Part Numbers
| AGCO |
|---|
| V836666720 |
| Case IH |
| 142000090295 |
| Claas |
| 0011331960, 11331960 |
| Iskra |
| IA0675 |
| Landini |
| 836666720 |
| Lester |
| 12682 |
| Lucas |
| LRA02147 |
| Same |
| 2.9439.600.0 |
| Valmet & Valtra |
| 836640927, 836666225, 836666720 |
