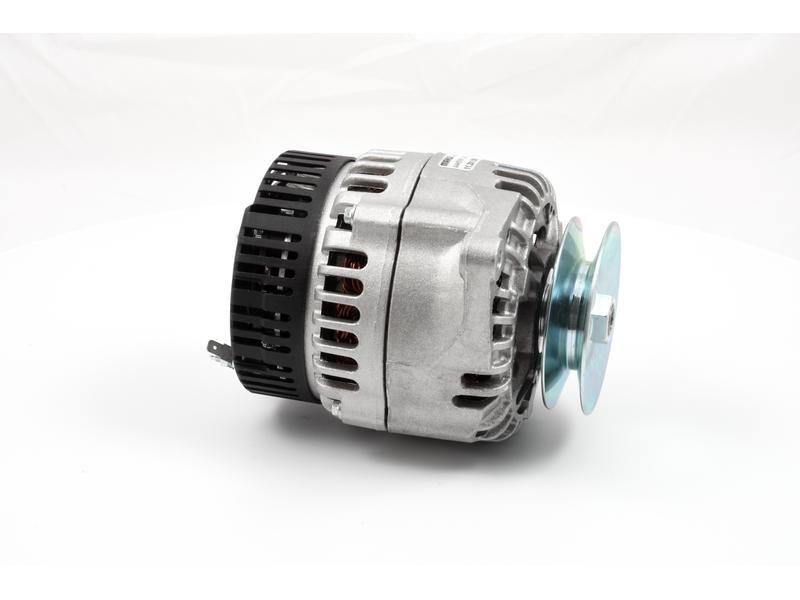

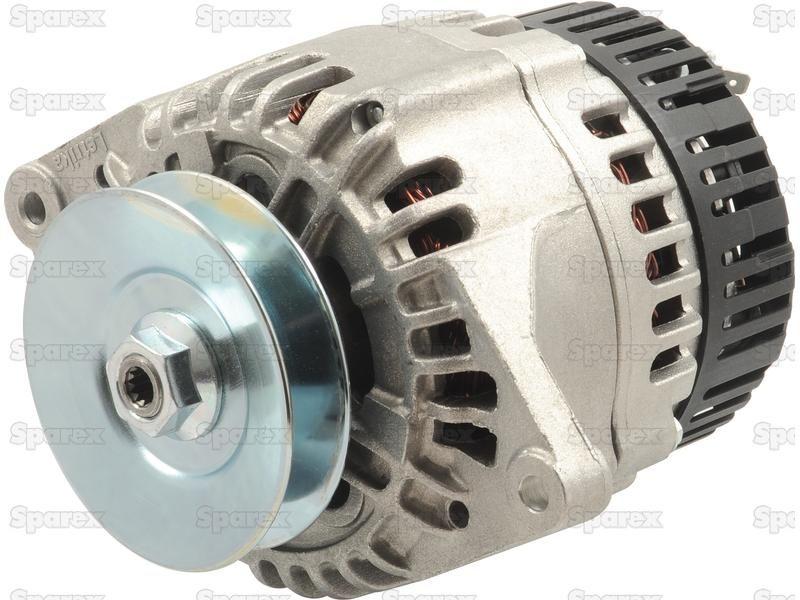

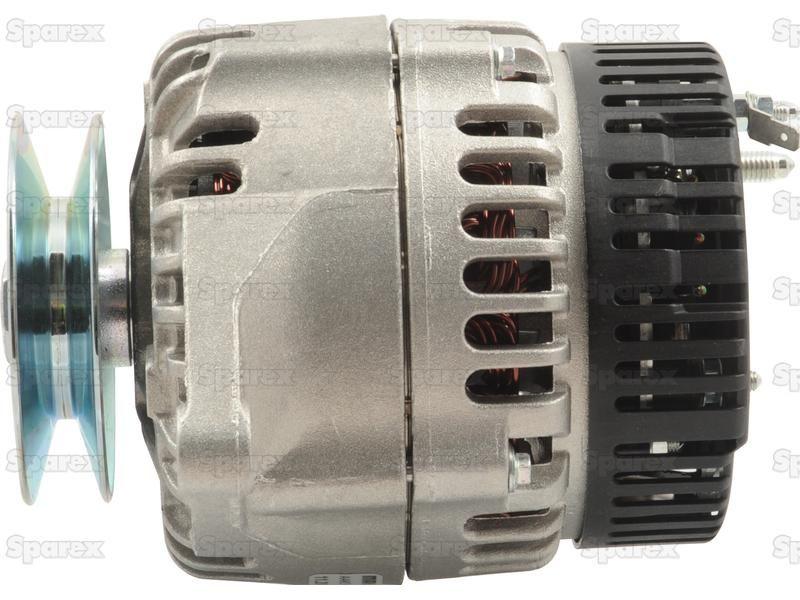

Alternator (Mahle) - 14V, 95 Amps for John Deere 3650 (50 Series)
Part Number: S.36170Categories: Electrical Accessories
Part Number: S.36170
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 95 Amps Pulley type: Single Groove, Pulley Ø: 87mm
Technical Information

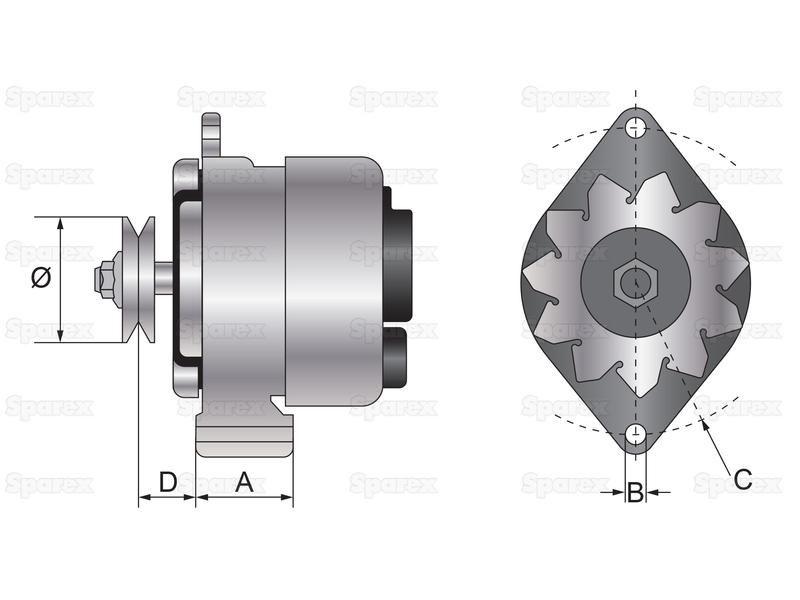

| A mm | 56 |
| Amps | 95 |
| B mm | 8.2 |
| Belt pulley width mm | 15.2 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Spade Terminal |
| D mm | 27 |
| Fan Type | Internal |
| Height mm | 160 |
| Length mm | 210 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 87 |
| Pulley type | Single Groove |
| Related Products | 35916, 39951, 137287 |
| Shaft Length mm | 32 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 180 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120484002, 0120484003, 0120484016, 0120484020, 0986036800, 120484002, 120484003, 120484012, 120484016, 120484020, 986036800, AL9935X, AL9942X |
| Iskra |
| IA0989 |
| John Deere |
| AL60033, AL67176, AL78690, AL81437, AZ38462, TY6778, TY6779 |
| Lester |
| 12150, 12151, 12159 |
| Lucas |
| LRB00294, LRB294 |
