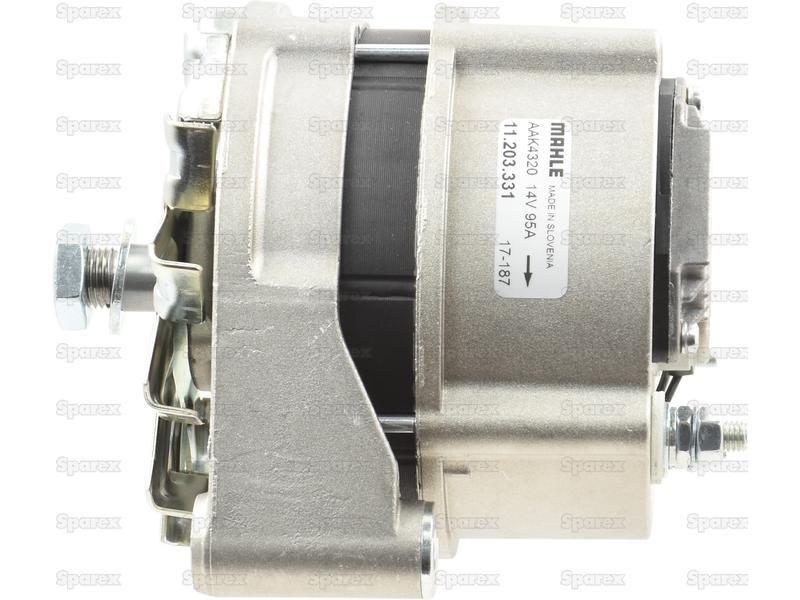

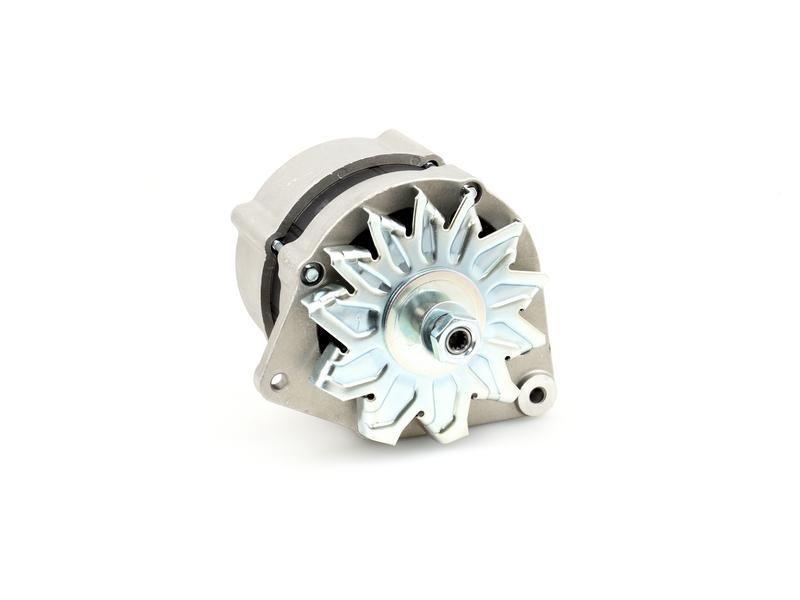

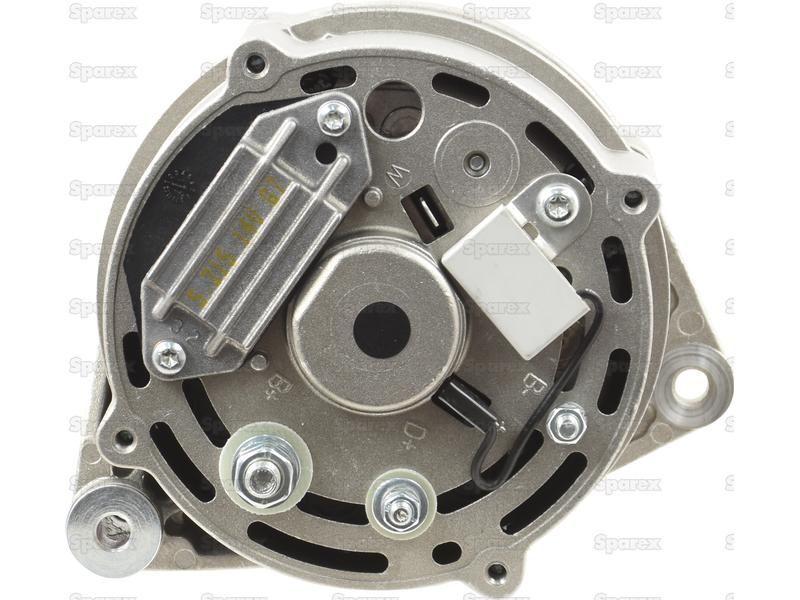

Alternator (Mahle) - 14V, 95 Amps for Deutz-Fahr DX6.50 (DX6 Series)
Part Number: S.36204Categories: Electrical Accessories
Part Number: S.36204
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 95 Amps
Technical Information

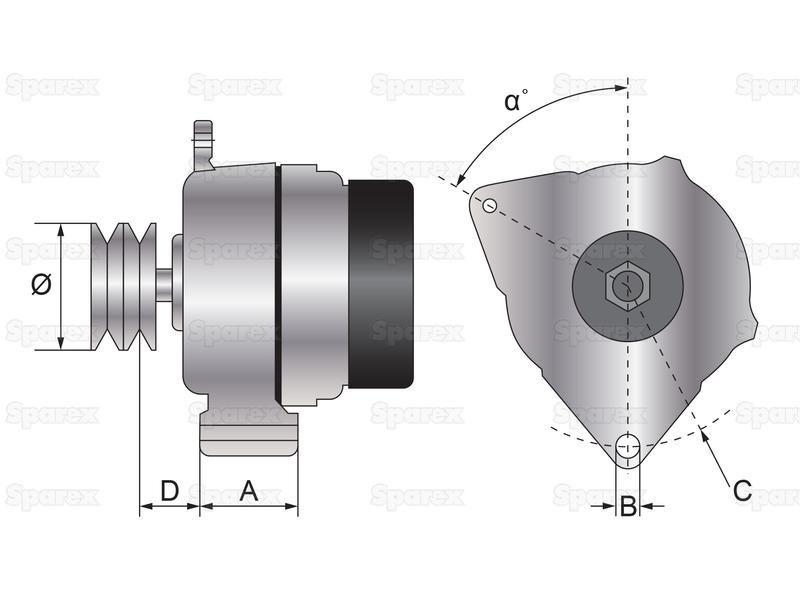

| a Angle ° | -60 |
| A mm | 56 |
| Amps | 95 |
| B mm | 8.2 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Ring Terminal |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley type | Without |
| Related Products | 35911, 35916 |
| Shaft Length mm | 32 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Type | B1 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120484001, 0120489756, 0986041840, 120484001, 986041840 |
| Deutz-Fahr |
| 01177063, 01182173, 01182961, 01183455, 1177063, 1178607, 1182173, 1182961, 1183455, 4191523 |
| Iskra |
| IA1081 |
| IVECO |
| 1177063, 1178607, 42498275, 42522743 |
| John Deere |
| AL3846201, AZ3846201 |
| Lester |
| 12169, 13203 |
| Lucas |
| LRA01397 |
| Valeo |
| 434017 |
