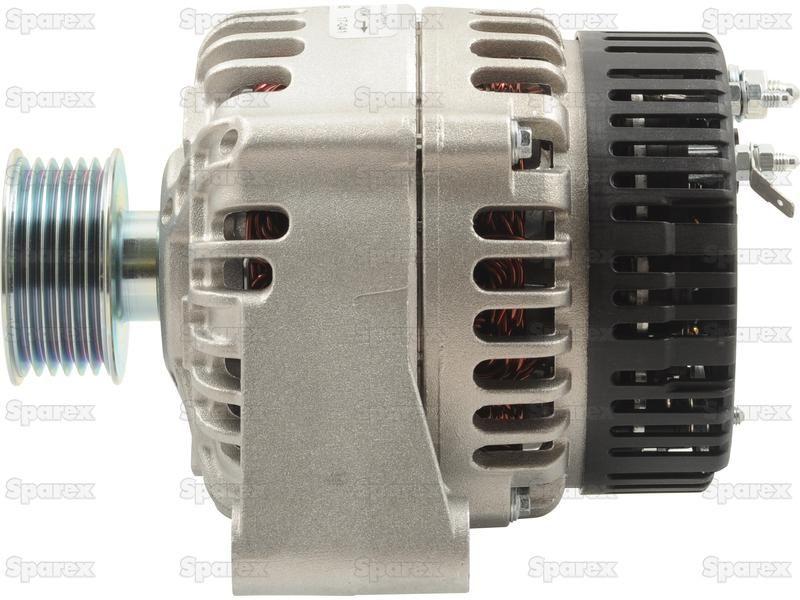

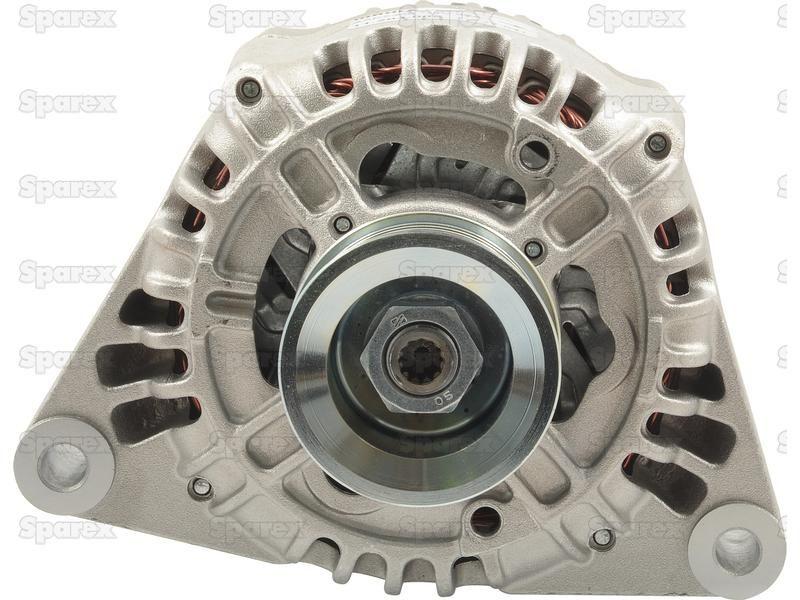

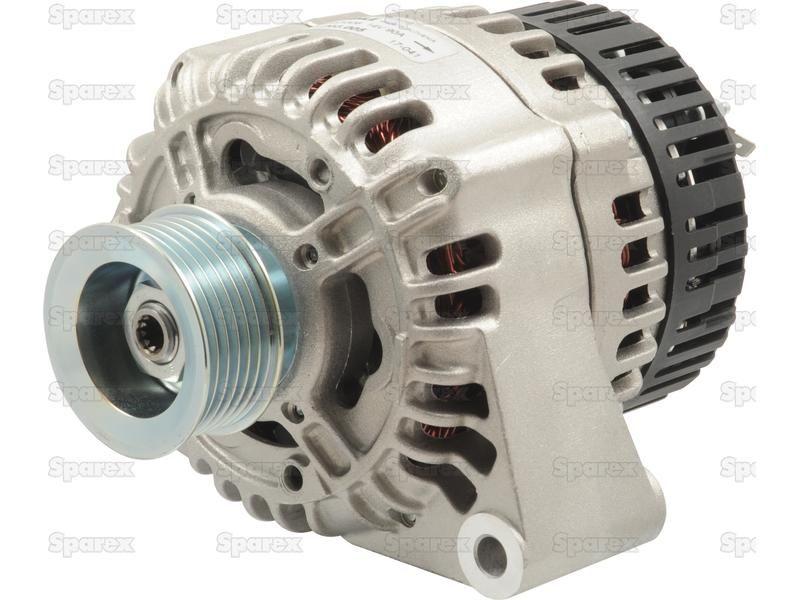

Alternator (Mahle) - 14V, 90 Amps for John Deere 6620 (6020 Series)
Part Number: S.127855Categories: Electrical Accessories
Part Number: S.127855
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 90 Amps Pulley type: PV x 6, Pulley Ø: 56mm
Technical Information
| a Angle ° | -60 |
| A mm | 56 |
| Amps | 90 |
| B mm | 10.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 90 |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B+ |
| Connection Type | Spade Terminal |
| D mm | 36.1 |
| Fan Type | Internal |
| Height mm | 170 |
| Length mm | 250 |
| Mounting Hole mm | 10.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 56 |
| Pulley type | PV x 6 |
| Related Products | 35916, 39951, 137287 |
| Shaft Length mm | 36 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190 |
Manufacturer Part Numbers
| AC Delco |
|---|
| DRA8170 |
| Bosch |
| 123320010, 123320029, 123320045, 123320061, 123335003, 986038170, 986039420, 986041040 |
| HELLA LTD |
| 8EL732717-001, CA1062IR |
| Iskra |
| IA1005 |
| John Deere |
| AL111675, AL114092, RE204426 |
| Lester |
| 13613, 13709, 22900 |
| Lucas |
| LRB00193 |
| Mercedes Benz |
| 101544702, 111540402, 91543002, 91543102, 91543502, 91544702, A0091543102 |
| Valeo |
| 437126, 437499, 437511, 437587, 439528, 439530, SG9MA276 |
