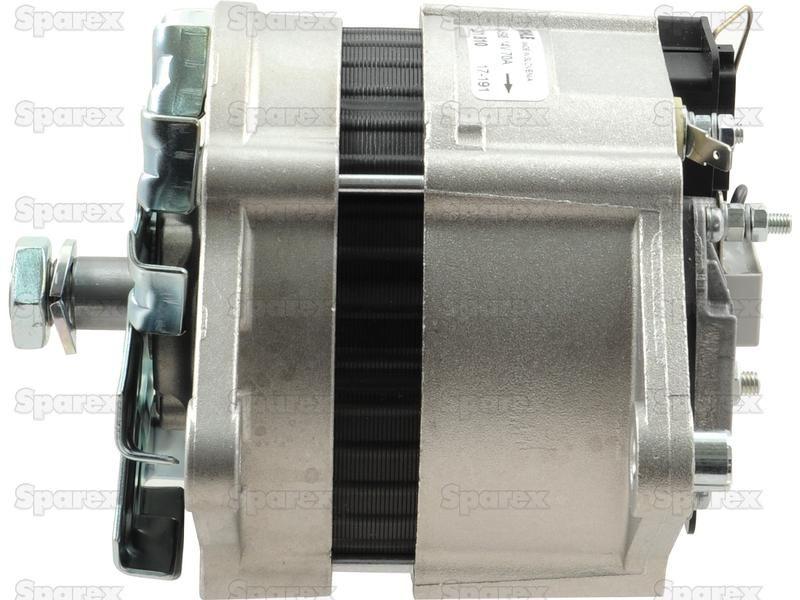

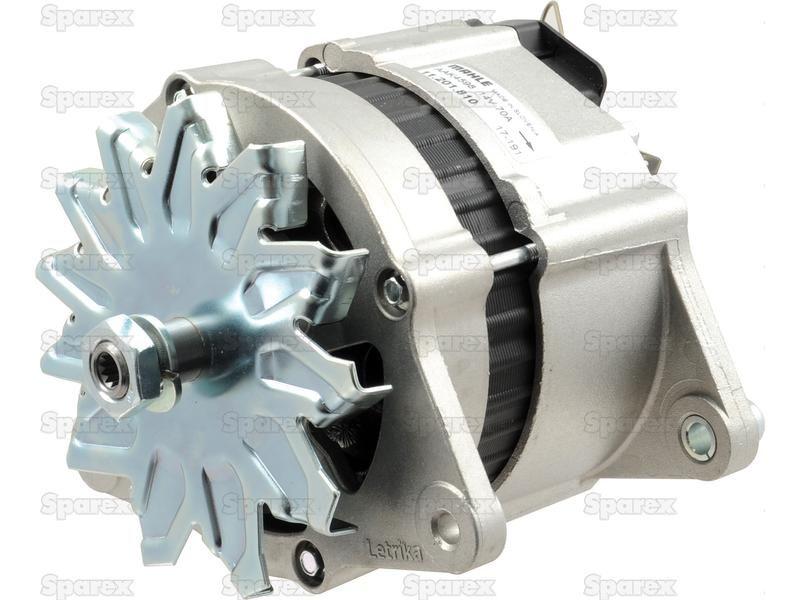

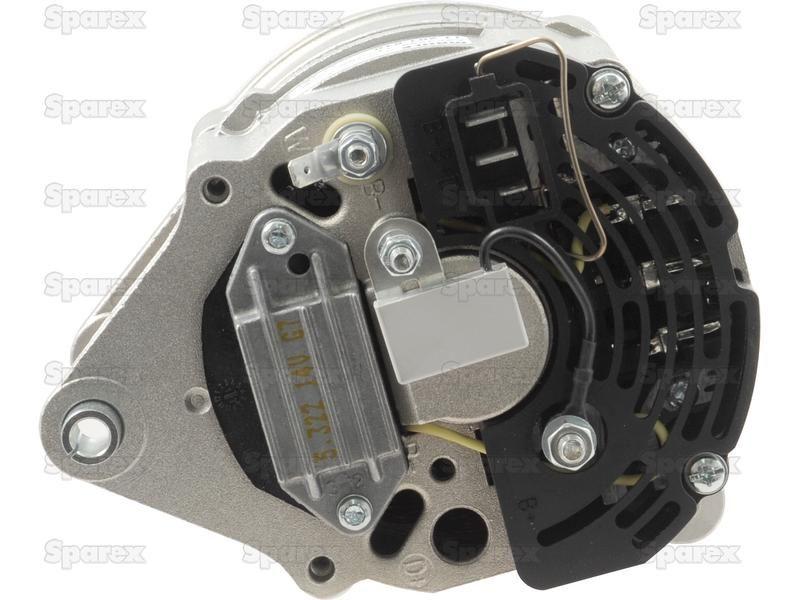

Alternator (Mahle) - 14V, 70 Amps for JCB 535-95 (Loader)
Part Number: S.36168Categories: Electrical Accessories
Part Number: S.36168
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 70 Amps
Technical Information

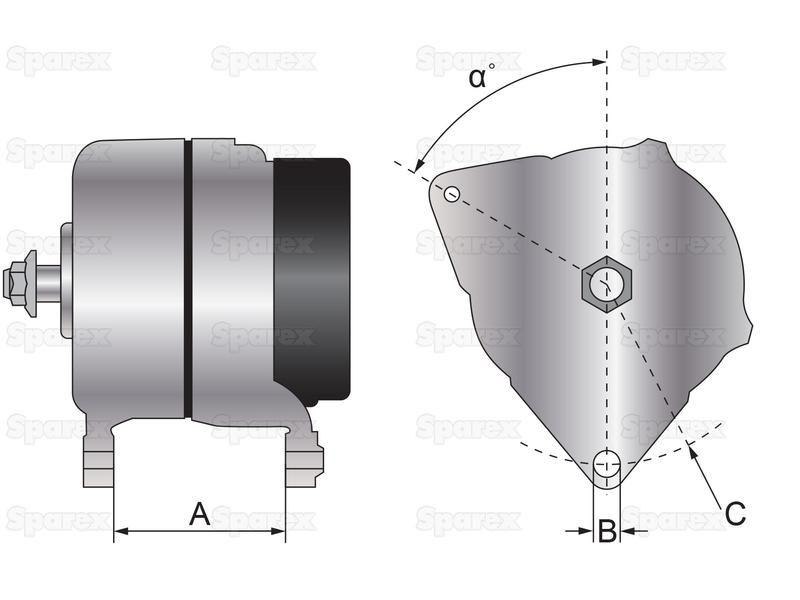

| a Angle ° | -60 |
| A mm | 80.5 |
| Amps | 70 |
| B mm | 8.2 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Connector |
| Fan Type | External |
| Height mm | 152.4 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley type | Without |
| Related Products | 35911, 35916, 36003 |
| Replacement Regulator | S.36003 |
| Shaft Length mm | 35 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Type | B2 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| AGCO |
|---|
| 701910M91, 83632800, C000900010190 |
| Bosch |
| 120489384 |
| Case IH |
| 84082C91, 84530361, 92281C1, 92292C1, 92293C1, K311696, K311697, K311698 |
| Fiat |
| 66021636, 84530361, 92281C1 |
| Iskra |
| IA0810 |
| JCB |
| 714/01003, 714/10800, 714/40148, 714/40476, 71426100 |
| Land Rover |
| ADU8880, ADU9548, ADU9750, ASU1693 |
| Landini |
| 2871A141, 3477851M91, 3582821M1 |
| Lester |
| 12045, 12046, 12086, 12088, 12306, 12307, 12365, 12699 |
| Lucas |
| 24129, LRA00460, LRA00461, LRA00602, LRA00958, LRA01669, LRA01888, LRA02690, LRA461, LRA958, LRB00290 |
| Magnetimar |
| 54022616 |
| Massey Ferguson |
| 2871A147, 2871A163, 3478360M91, 3582821M1, 3582821R1, 3611576M91, 3611931M91, 3930501R91, 3930504R1, 3930504R91, 4223493M91, LRA460 |
| Perkins |
| 1475922N91, 2871A141, 2871A148, 2871A154, 2871A160 |
| Valeo |
| 2541290, 433415, 436692, VA140 |
| Valmet & Valtra |
| 50273, 83632800 |
