Alternator (Mahle) - 14V, 70 Amps for Massey Ferguson 390 (300 Series)
Part Number: S.35965Categories: Electrical Accessories
Part Number: S.35965
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 70 Amps Pulley type: Single Groove, Pulley Ø: 60mm

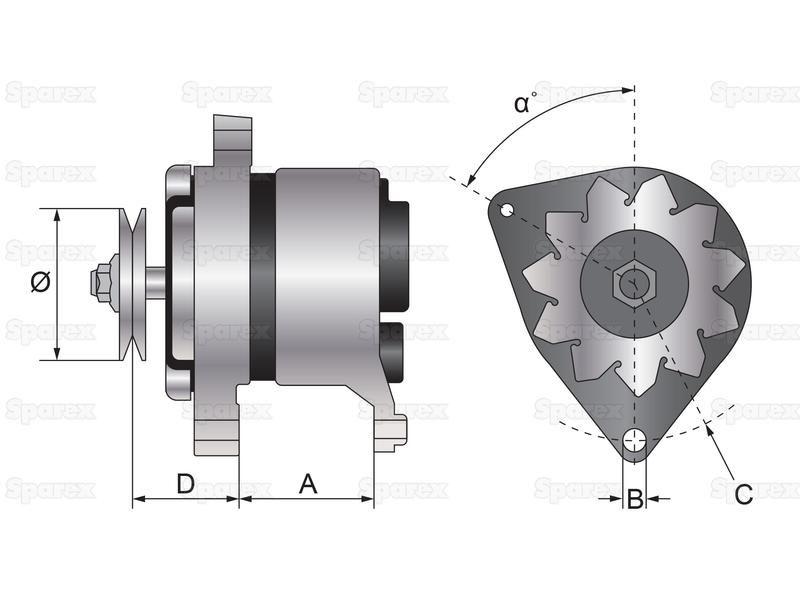

Technical Information
| a Angle ° | -60 |
| A mm | 82 |
| Amps | 70 |
| B mm | 8.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Ring Terminal |
| D mm | 36.6 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.5 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 60 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Length mm | 33 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120489346, 0120489347, 0986034470, 120488286, 120489346, 120489347, 986034470, AL5052X |
| Caterpillar |
| 1008223 |
| Ford New Holland |
| 1005351, 5021177, 5023531, 5024753, 6136957, 86AB10300MB, 86AB10300NA, 86AB10300NB, 86AB10346MA, 86AX10300MB, R86AX10300MB |
| Iskra |
| IA0581 |
| Lester |
| 12164, 13436, 14068, 20604, 20605, 20606, 21821 |
| Lucas |
| 24091, 24206, 24229, LRA00381, LRA00604, LRA604, LRB00127 |
| Magnetimar |
| 94335620 |
| Perkins |
| 2871C105 |
| Valeo |
| 432818, 436774, VA119 |
