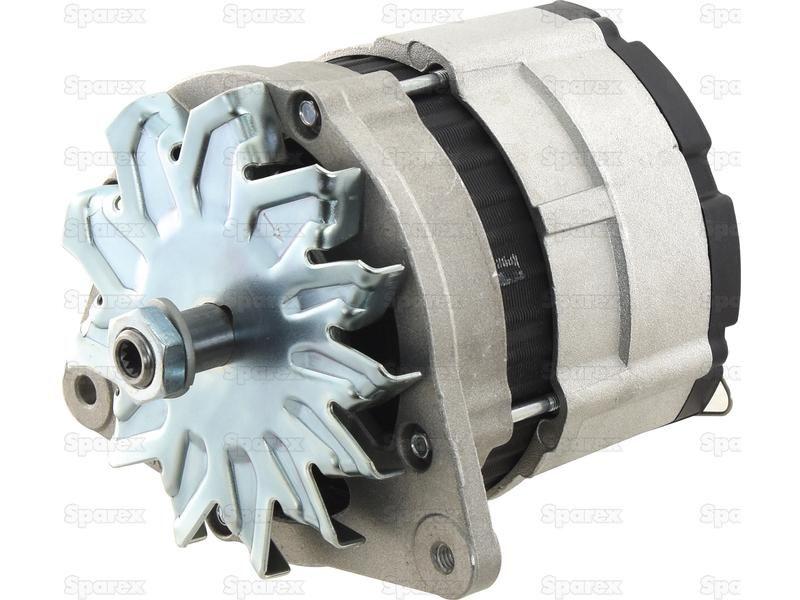

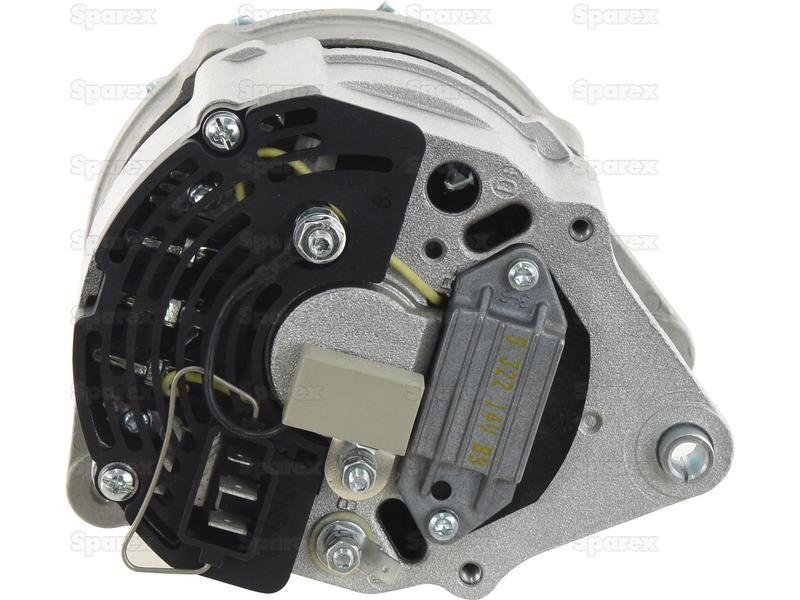

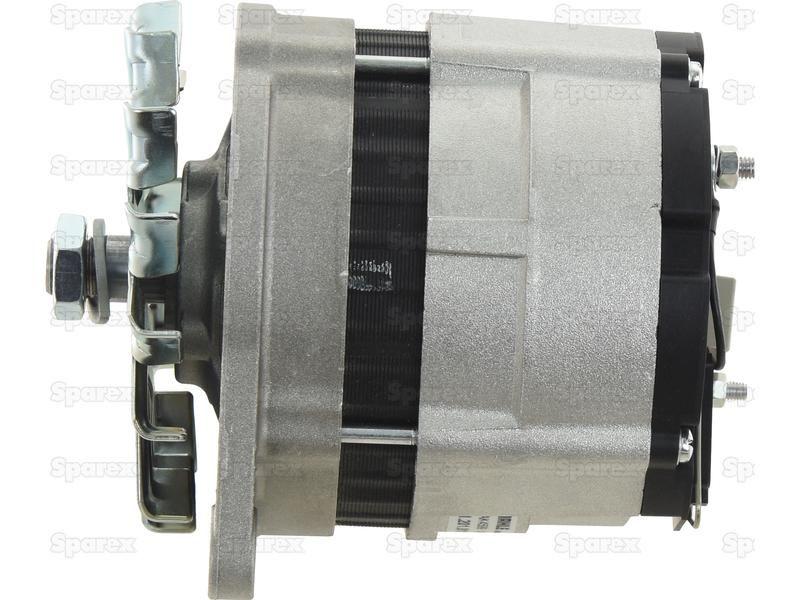

Alternator (Mahle) - 14V, 70 Amps for Case IH
Part Number: S.36169Categories: Electrical Accessories
Part Number: S.36169
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 70 Amps
Technical Information

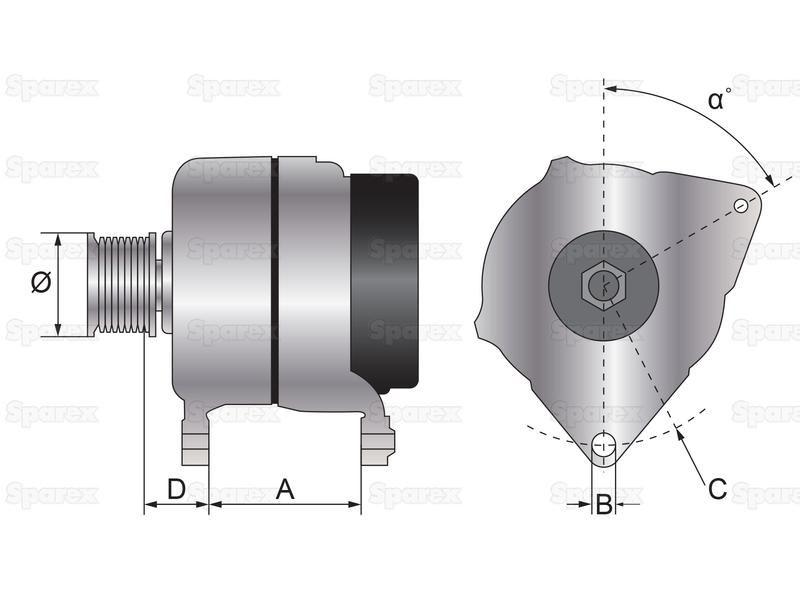

| a Angle ° | 60 |
| A mm | 80.5 |
| Amps | 70 |
| B mm | 8.2 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Connector |
| Fan Type | External |
| Height mm | 157.1 |
| Length mm | 206.4 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley type | Without |
| Related Products | 35911, 35916, 36003 |
| Replacement Regulator | S.36003 |
| Shaft Type | Hex |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Type | C2 |
| Volts | 14V |
| Width mm | 174.6 |
Models
| Case IH |
|---|
| C100 (C Series), C50 (C Series), C60 (C Series), C70 (C Series), C80 (C Series), C90 (C Series), CX100 (CX Series), CX50 (CX Series), CX60 (CX Series), CX70 (CX Series), CX80 (CX Series), CX90 (CX Series) |
Manufacturer Part Numbers
| Case IH |
|---|
| 188590A1, 229301A1, K311704 |
| Claas |
| 6005706664 |
| Ford New Holland |
| 229301A1 |
| Iskra |
| IA0811 |
| Land Rover |
| ADU1148, AUU1053, AUU1184, RTC5846, YLE101560, YLE101700 |
| Lester |
| 12072, 12074, 12239, 14054 |
| Lucas |
| 24297, LRA00462, LRA00463, LRA00653, LRA00693 |
| Massey Ferguson |
| 3641684M91, 4223493M91, 6100316M91, LRA462 |
| Perkins |
| 2871A142, 2871A161 |
| Valeo |
| VA135 |
