Alternator (Mahle) - 14V, 65 Amps for Valmet & Valtra 900 (100 Series)
Part Number: S.127852Categories: Electrical Accessories
Part Number: S.127852
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 80mm
Technical Information

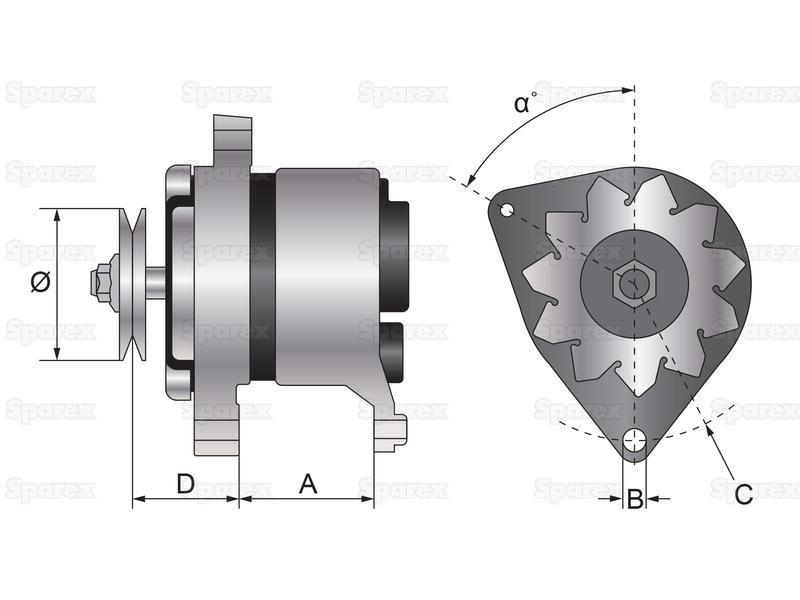

| a Angle ° | -60 |
| A mm | 82 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Connector |
| D mm | 37 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 80 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916 |
| Shaft Length mm | 37 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| AC Delco |
|---|
| DRA3940 |
| AGCO |
| 46446700, 836664037, 836664064, 836666723, D46446700, V836666723 |
| Iskra |
| IA0470 |
| Lester |
| 20582, 23687 |
| Lucas |
| LRA00582, LRA00962, LRA00963, LRA02047 |
| Valmet & Valtra |
| 836664037, 836664064, VPF8085 |
