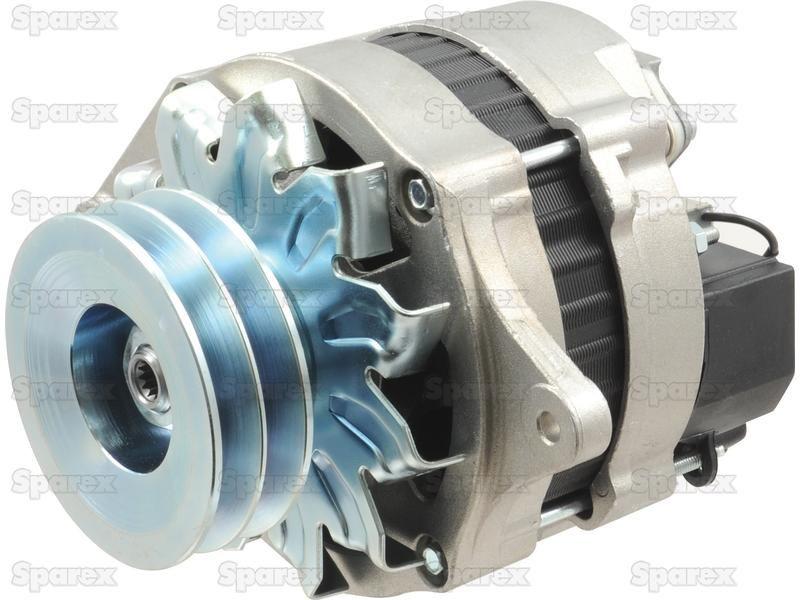

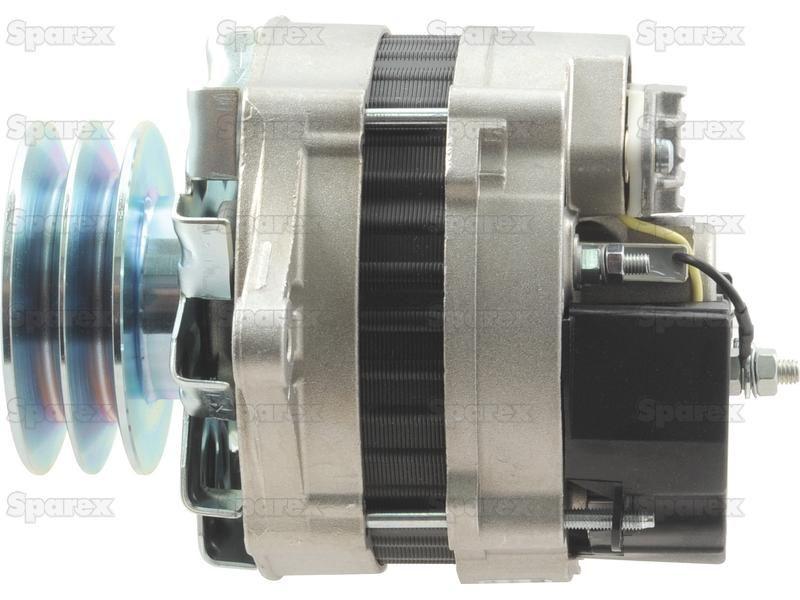

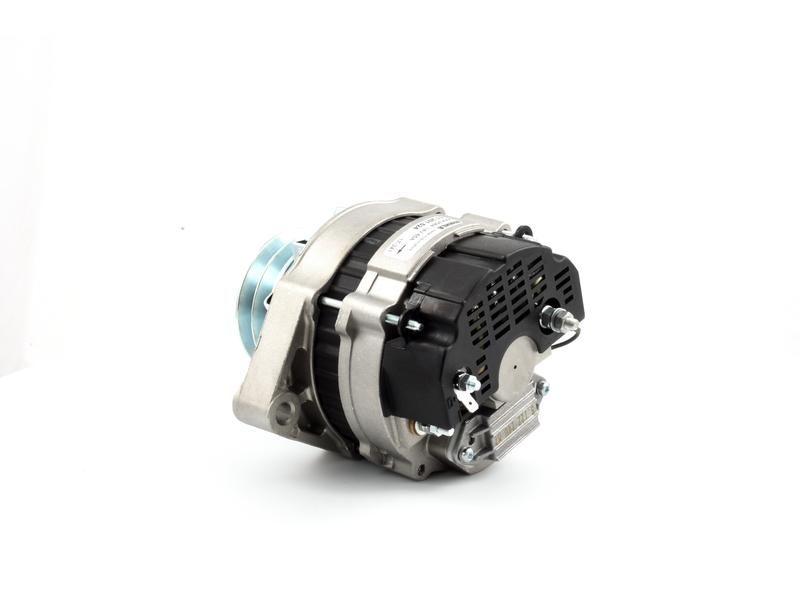

Alternator (Mahle) - 14V, 65 Amps for Renault 145-14 (12-14 Series)
Part Number: S.36158Categories: Electrical Accessories
Part Number: S.36158
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Double Groove, Pulley Ø: 81mm
Technical Information

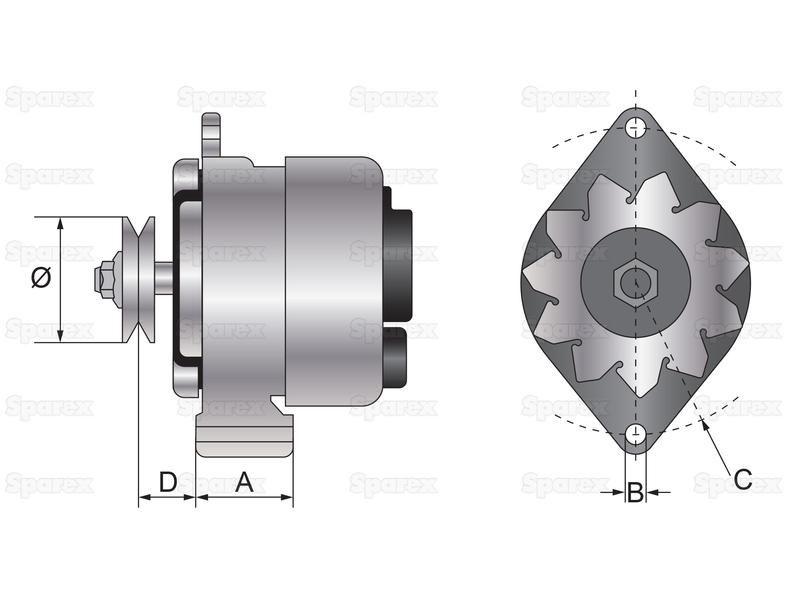

| A mm | 27 |
| Amps | 65 |
| B mm | 10.3 |
| Belt pulley width mm | 2 x 9.7 |
| Brand | Mahle |
| C mm | 83 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Spade Terminal |
| D mm | 32.5 |
| Fan Type | External |
| Mounting Hole mm | 10.3 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 81 |
| Pulley type | Double Groove |
| Related Products | 35910, 35916 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
Manufacturer Part Numbers
| Iskra |
|---|
| IA0524 |
| Lucas |
| LRA01593, LRA1593 |
| Renault |
| 6005003144, 6005700087, 6005700725, 7700009011, 7700034499 |
| Valeo |
| 2541746, 2940148, 432978, 432981, 433474, 433475, 436710, A13N275 |
