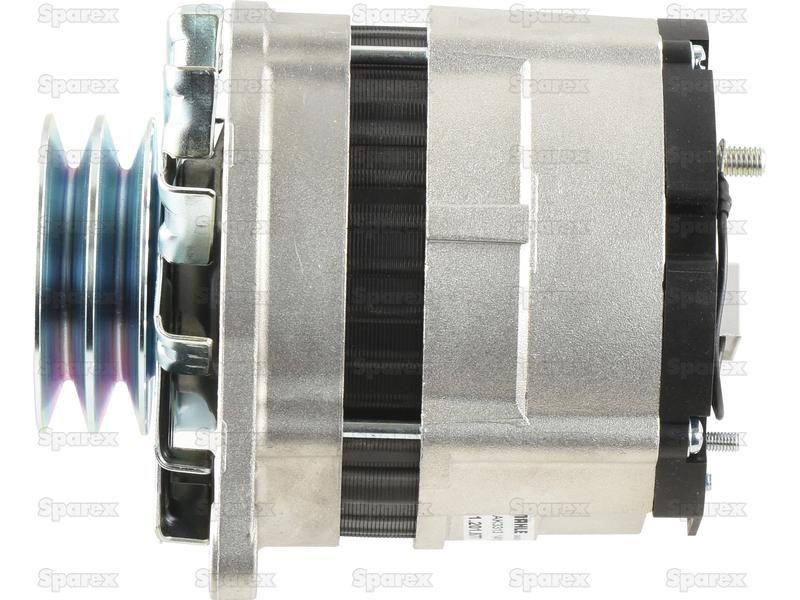

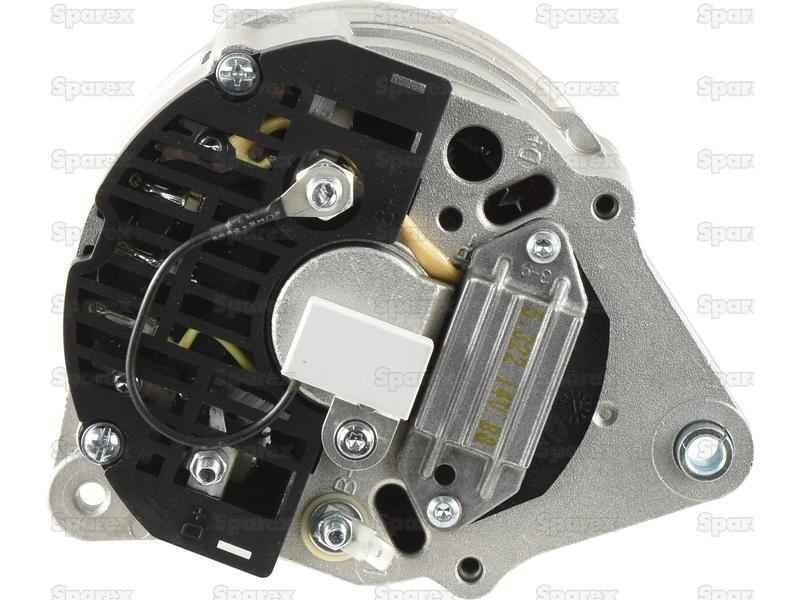

Alternator (Mahle) - 14V, 65 Amps for McCormick CX75 (CX Series)
Part Number: S.36173Categories: Electrical Accessories
Part Number: S.36173
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Double Groove, Pulley Ø: 75mm
Technical Information

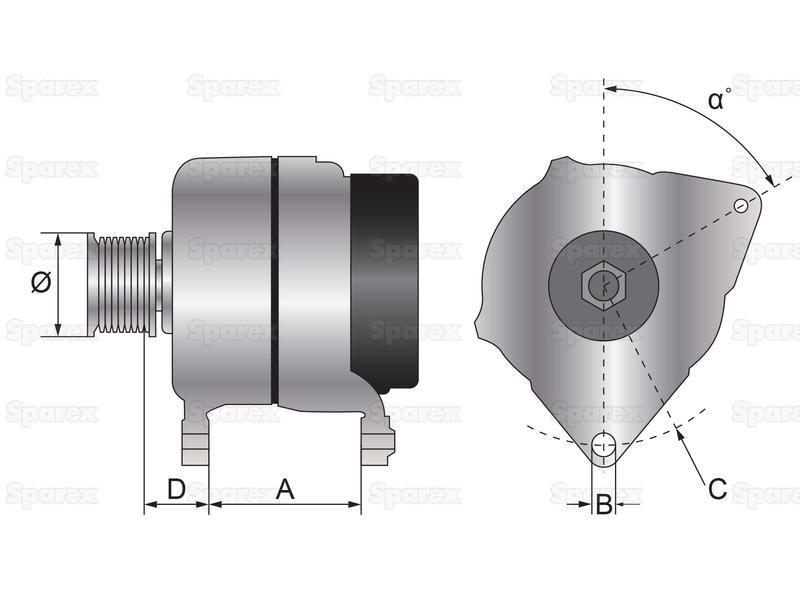

| a Angle ° | 60 |
| A mm | 82 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 2 x 9.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Spade Terminal |
| D mm | 35 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 75 |
| Pulley type | Double Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Type | Hex |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Case IH |
|---|
| 73327984, A188590A1 |
| Fiat |
| 73327984 |
| Iskra |
| IA0877 |
| Lester |
| 12788 |
| McCormick |
| 388189A1 |
