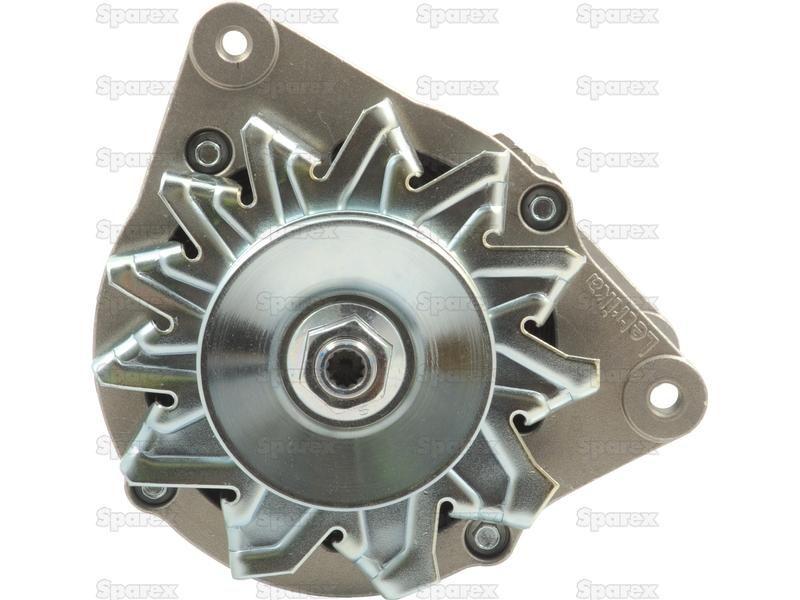

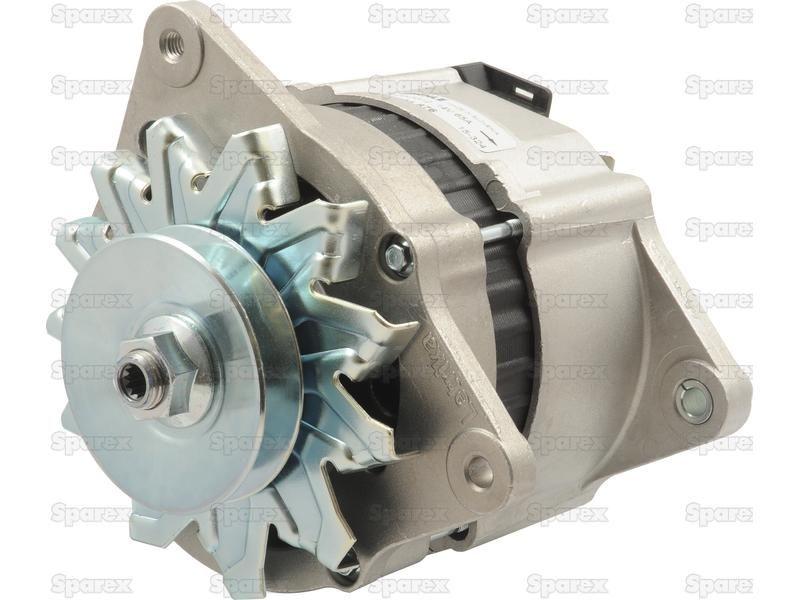

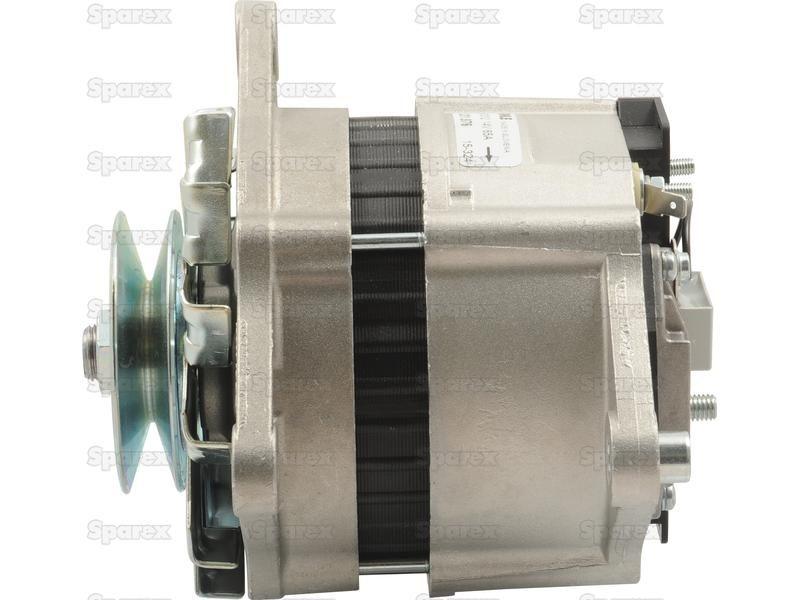

Alternator (Mahle) - 14V, 65 Amps for Case IH
Part Number: S.36172Categories: Electrical Accessories
Part Number: S.36172
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 75mm

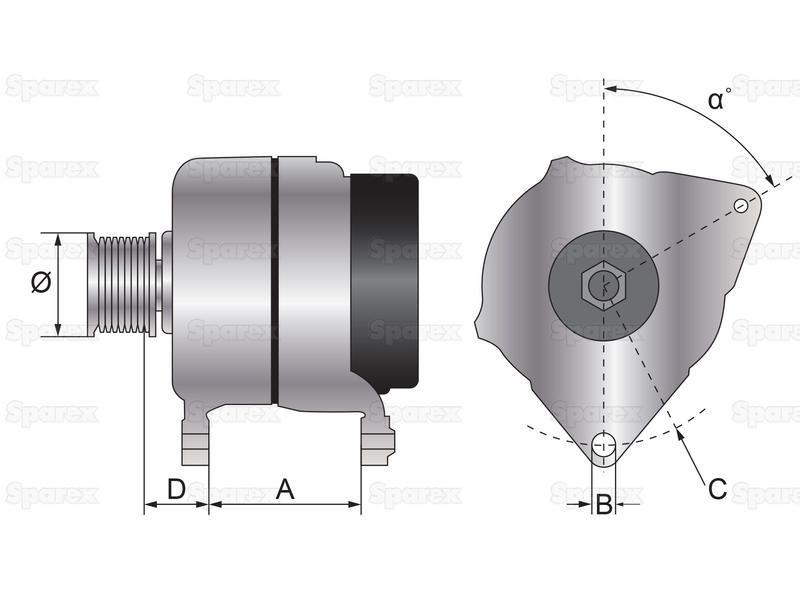

Technical Information
| a Angle ° | 60 |
| A mm | 82 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Spade Terminal |
| D mm | 35.8 |
| Fan Type | External |
| Height mm | 157.1 |
| Length mm | 206.4 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 75 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Length mm | 33 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 174.6 |
Models
| Case IH |
|---|
| CX100 (CX Series), CX50 (CX Series), CX60 (CX Series), CX70 (CX Series), CX80 (CX Series), CX90 (CX Series) |
Manufacturer Part Numbers
| Case IH |
|---|
| 188590A1, 229301A1, 299366A1, 388188A1, A231295A1 |
| Iskra |
| IA0876 |
| Lester |
| 12789 |
| Merlo |
| 2871A137 |
