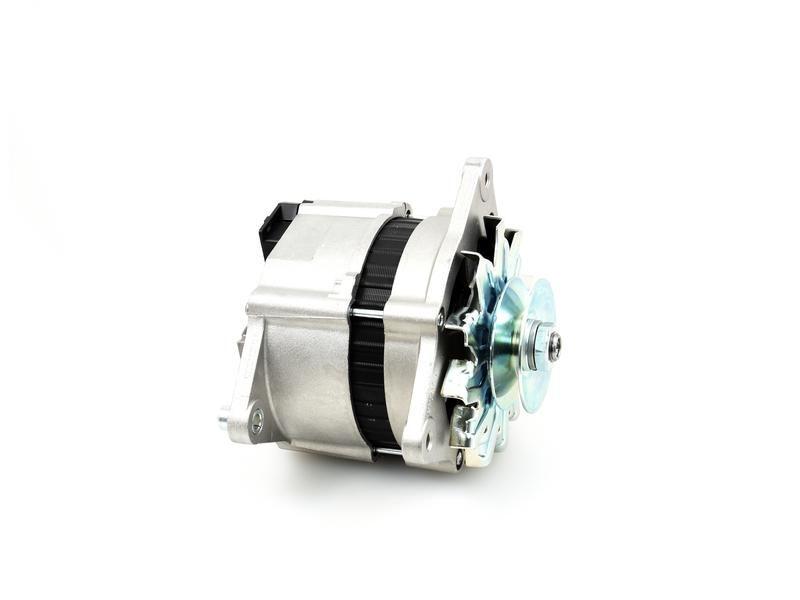

Alternator (Mahle) - 14V, 65 Amps for JCB 540-170
Part Number: S.35939Categories: Electrical Accessories
Part Number: S.35939
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 70mm
Technical Information

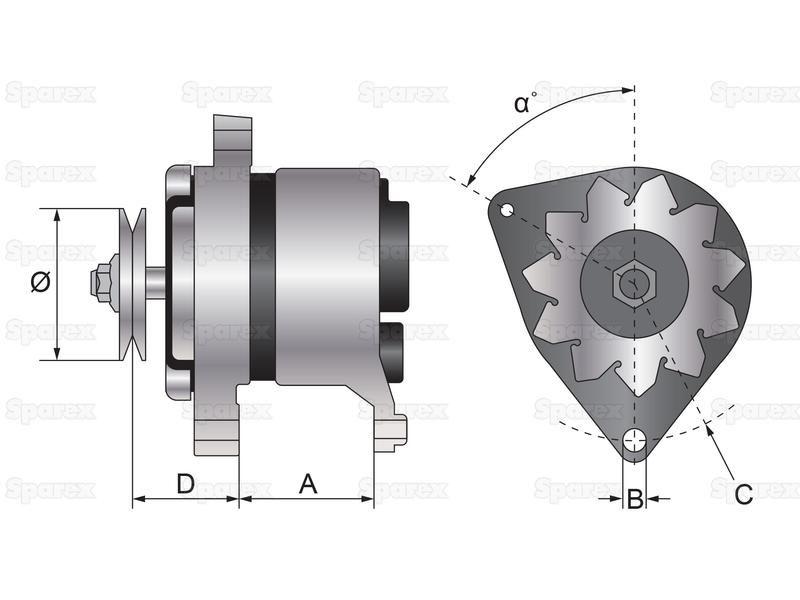

| a Angle ° | -60 |
| A mm | 82 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 86 |

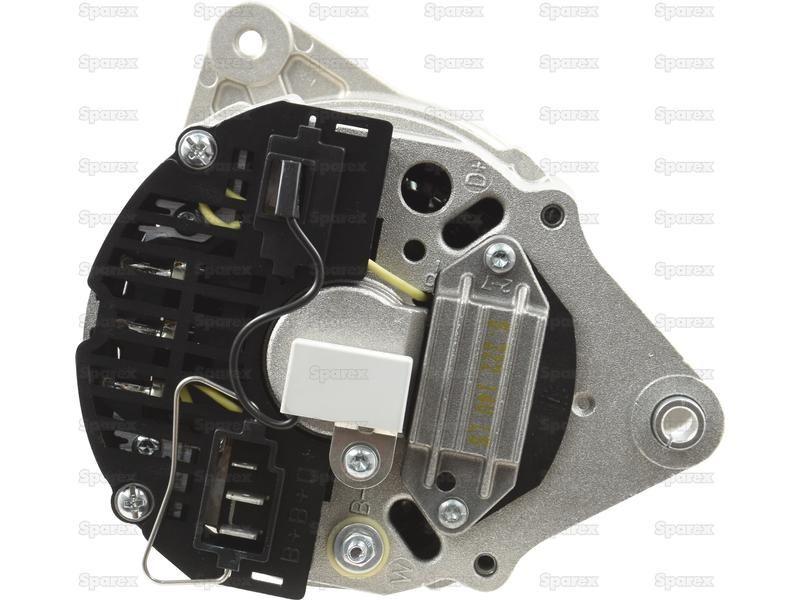

| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Connector |
| D mm | 36.6 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.5 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 70 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Length mm | 37 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| AGCO |
|---|
| 3930501R91, C000900010080 |
| Case IH |
| 84082C91, 84327799, 84530361, 92281C1, 92293C1, K311696, K311697, K311698, K311703, K311704, K311706, K311707 |
| David Brown |
| K311696, K311697, K311698 |
| Iskra |
| IA0913 |
| Landini |
| 3536264M91, 3661191M91 |
| Lester |
| 12144, 23624, 23625, 23669 |
| Lucas |
| LRA00360, LRA360, LRA528 |
| Massey Ferguson |
| 3698016M91, 3823652M1 |
| Valeo |
| VA122 |
