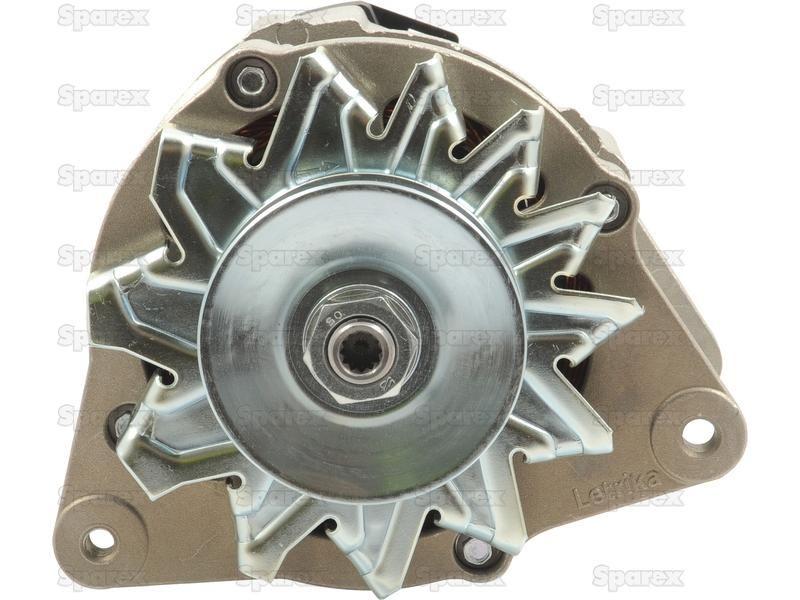

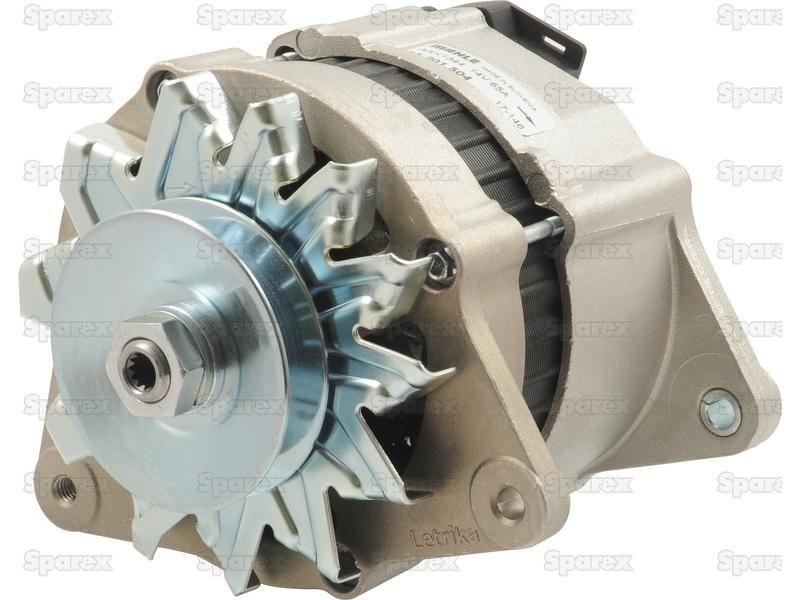

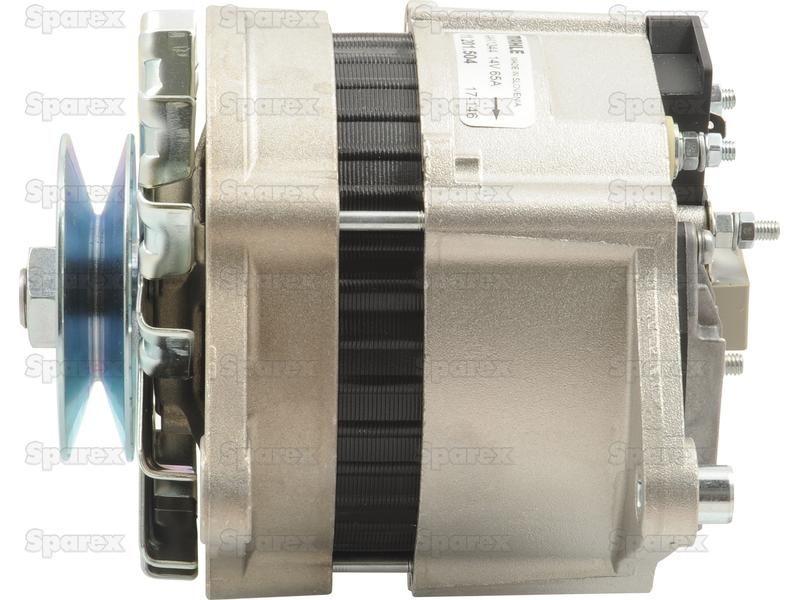

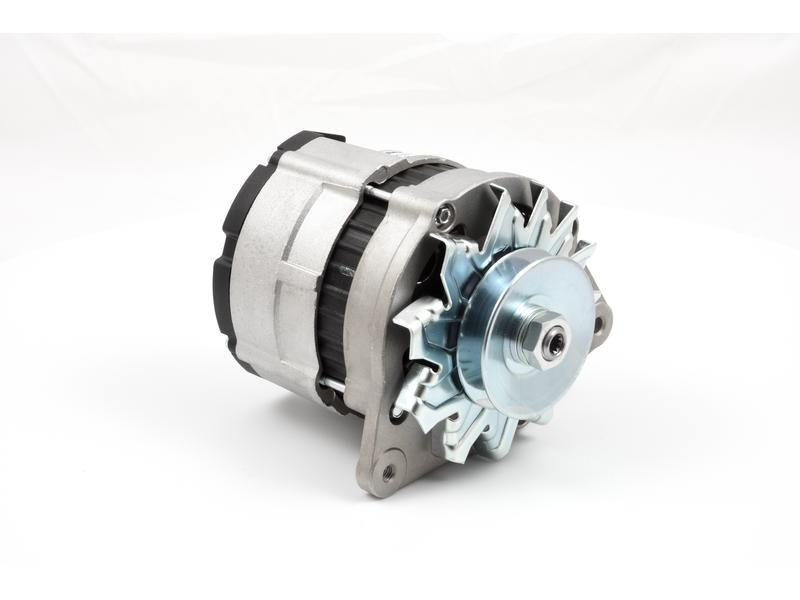

Alternator (Mahle) - 14V, 65 Amps for Massey Ferguson 399 (300 Series)
Part Number: S.361550Categories: Electrical Accessories
Part Number: S.361550
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 75mm
Technical Information

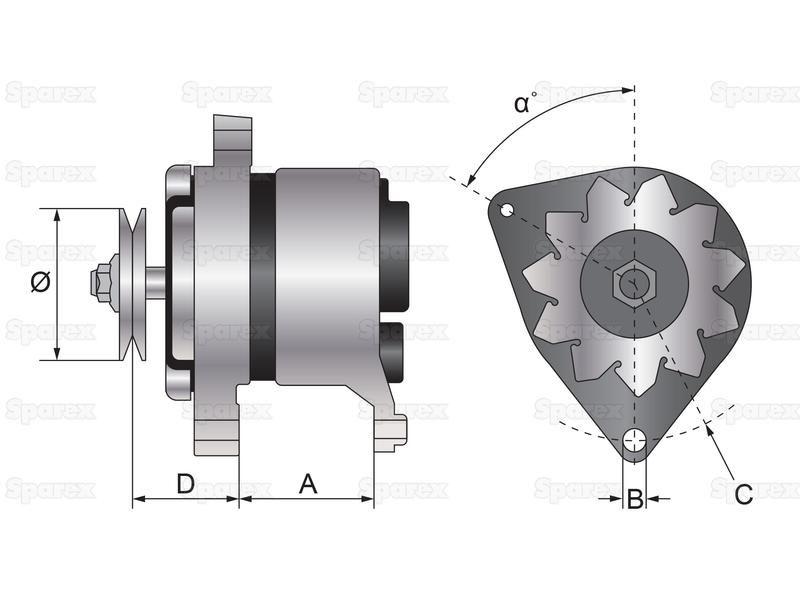

| a Angle ° | -60 |
| A mm | 80 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | S (Battery Sensor) |
| Connection 2 | W (Speed Signal) |
| Connection 3 | D+ (Battery charge indicator) |
| Connection 4 | B+ (Continuous plus) |
| Connection Type | Spade Terminal |
| D mm | 35.3 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 75 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Technical Specifications | Please refer to the Technical Document for full wiring instructions. |
| Volts | 14V |
| Width mm | 184.2 |
Manufacturer Part Numbers
| Bosch |
|---|
| AL5050X |
| Claas |
| 6005706653 |
| Ford New Holland |
| 81863039, 81868798, 83951924, 83961457, E3NN10B376AA, E3NN10B376AB, E7NN10B376AA, E7NN10B376AB, E7NN10B376BA, E7NN10B376BB |
| Iskra |
| IA0504 |
| Lester |
| 12090, 12091 |
| Lucas |
| 24274, LRA00522, LRA02690, LRA522 |
| Massey Ferguson |
| 3701909M91, 3760524M91, 3904254M91, 3933142M91 |
