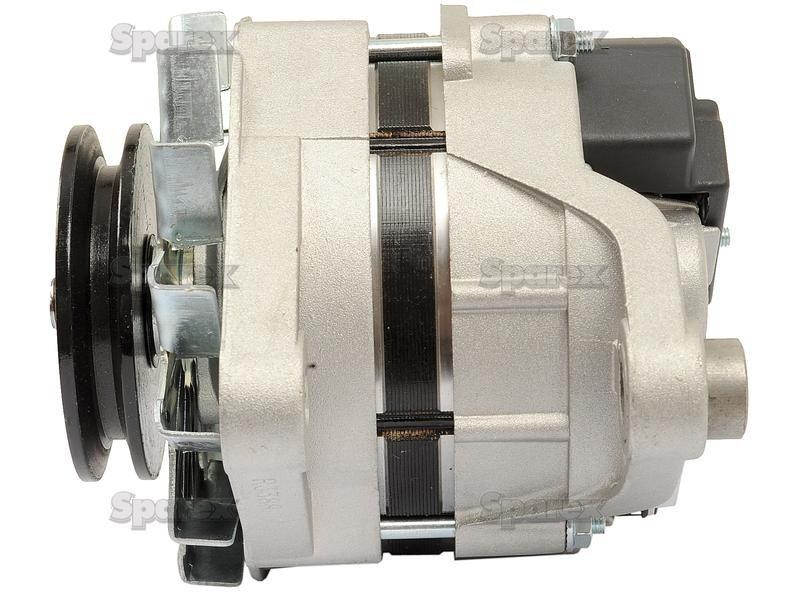

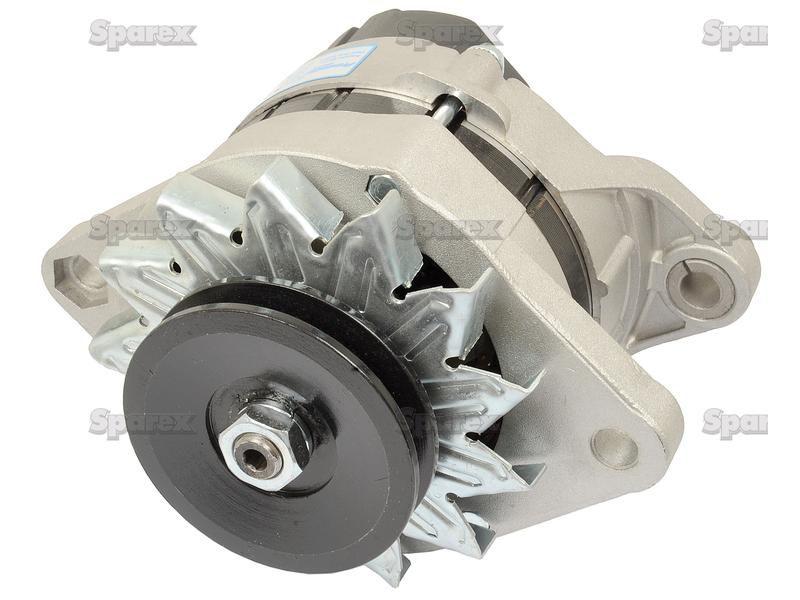

Alternator (Mahle) - 14V, 65 Amps for Fiat, Case IH, Claas, Iskra, Lester, Magnetimar
Part Number: S.35961Categories: Electrical Accessories
Part Number: S.35961
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Double Groove, Pulley Ø: 85mm

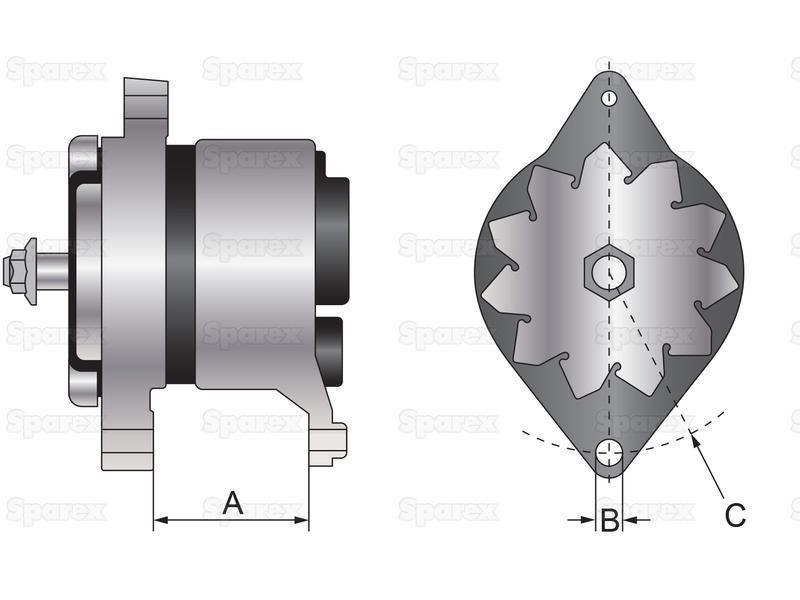

Technical Information
| A mm | 70 |
| Amps | 65 |
| B mm | 12.2 |
| Belt pulley width mm | 2 x 9.7 |
| Brand | Mahle |
| C mm | 85 |
| Connection 1 | W |
| Connection 3 | B- |
| Connection 4 | B- |
| Connection Type | Ring Terminal |
| D mm | 42 |
| Fan Type | External |
| Height mm | 177.8 |
| Length mm | 247.6 |
| Mounting Hole mm | 12.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 85 |
| Pulley type | Double Groove |
| Related Products | 35911, 35916, 35922 |
| Shaft type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190.5 |
Models
| Fiat |
|---|
| 1380 (Classic Models), 140-90 (90 Series), 1580 (Classic Models), 160-90 (90 Series), 180-90 (90 Series), 1880 (Classic Models), F100 (F Series), F110 (F Series), F115 (F Series), F120 (F Series), F130 (F Series), F140 (F Series) |
Manufacturer Part Numbers
| Case IH |
|---|
| 4808511 |
| Claas |
| 6005706649 |
| Fiat |
| 2000304, 4808511 |
| Iskra |
| IA0330 |
| Lester |
| 12584 |
| Magnetimar |
| 63321019, 63321020, 94332101, 94332102 |
