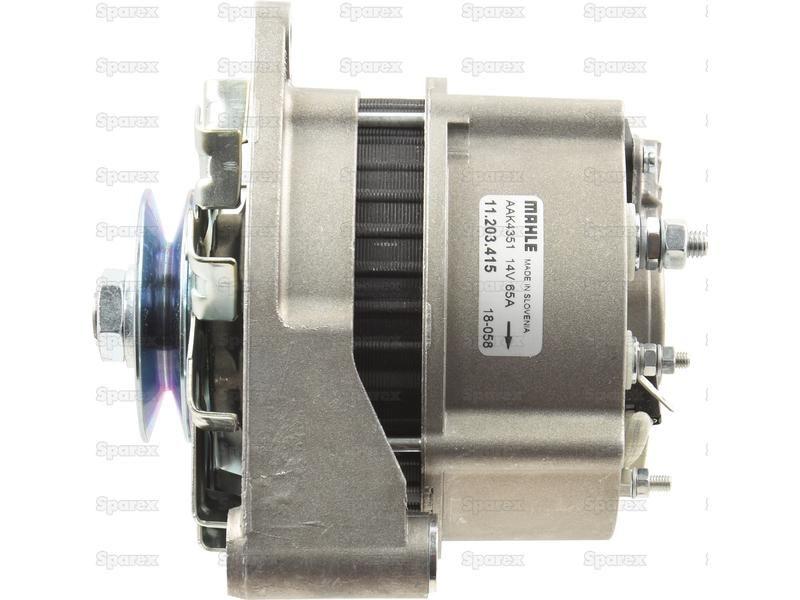

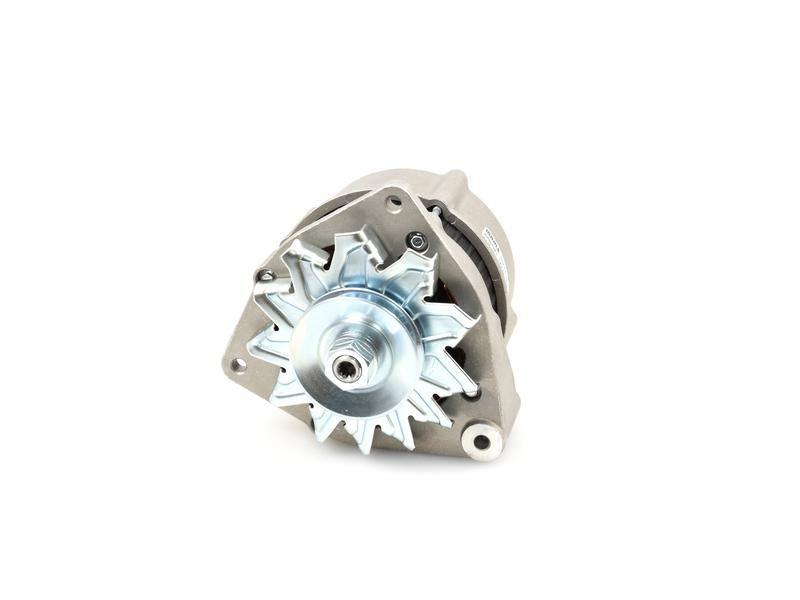

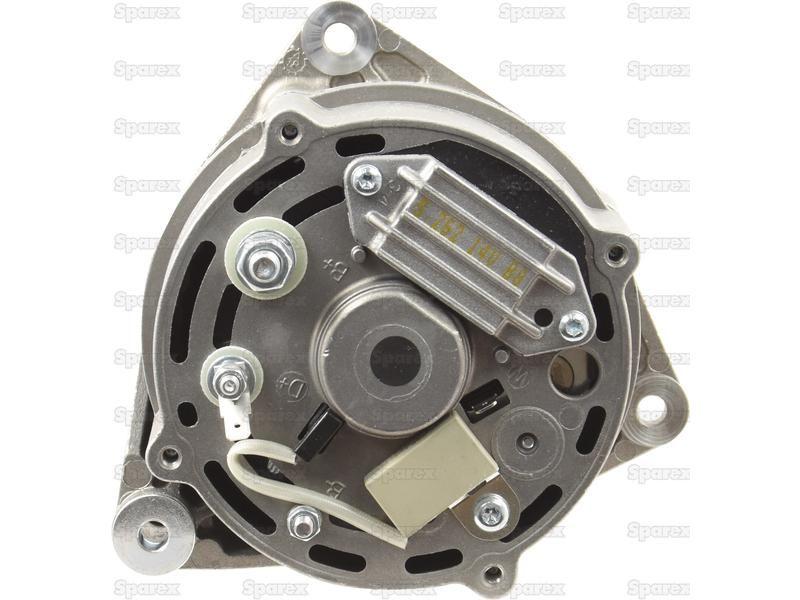

Alternator (Mahle) - 14V, 65 Amps for Fendt
Part Number: S.35954Categories: Electrical Accessories
Part Number: S.35954
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 68mm

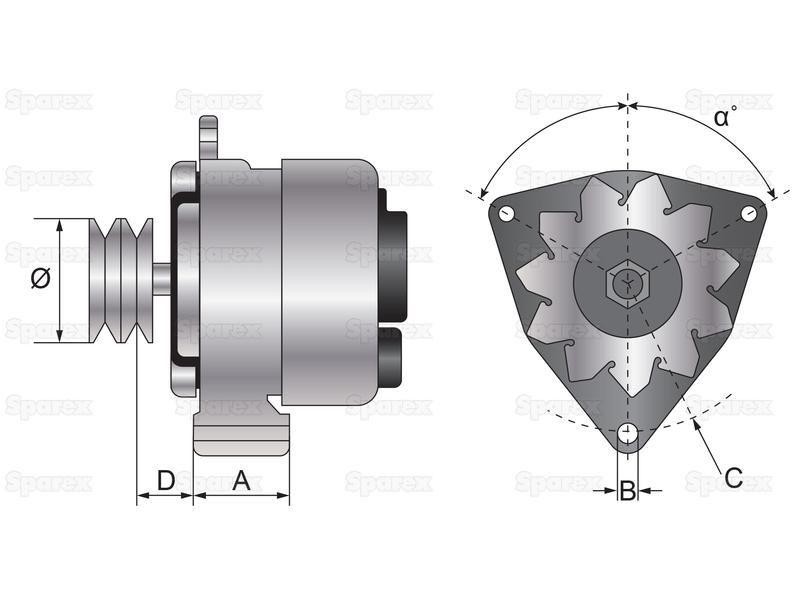

Technical Information
| a Angle ° | 60 |
| A mm | 56 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Spade Terminal |
| D mm | 20.9 |
| Fan Type | External |
| Height mm | 177.8 |
| Length mm | 254 |
| Mounting Hole mm | 8.2 |
| Number of holes | Three |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916 |
| Shaft Length mm | 36 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190.5 |
Models
| Fendt |
|---|
| F 345 GT, F 360 GTA, F 365 GTA, F 380 GTA, FARMER 102, FARMER 102 S, FARMER 103, FARMER 103 S, FARMER 104, FARMER 105, FARMER 105 LS, FARMER 106, FARMER 106 LSA, FARMER 108, FARMER 108 LSA, FARMER 200, FARMER 200 V, FARMER 201, FARMER 201 S, FARMER 203, FARMER 203 VA, FARMER 204, FARMER 204 V, FARMER 250, FARMER 250 SA, FARMER 250 VA, FARMER 275, FARMER 275 VA, FARMER 280 PA, FARMER 303, FARMER 303 LSA, FARMER 304, FARMER 304 LSA, FARMER 305, FARMER 305 LSA, FARMER 306, FARMER 306 LSA, FARMER 307, FARMER 307 LSA, FARMER 308, FARMER 308 LS, FARMER 309, FARMER 309 LS, FARMER 310, FARMER 310 LSA, FARMER 311, FARMER 311 LSA, FARMER 312, FARMER 312 LSA, FARMER 4, FARMER 4 S, FAVORIT 10, FAVORIT 10 S, FAVORIT 11, FAVORIT 11 S, FAVORIT 12 S, FAVORIT 509 CA, FAVORIT 511 C, FAVORIT 512 CA, FAVORIT 514 C, FAVORIT 514 CA, FAVORIT 515 CA, FAVORIT 600, FAVORIT 600 LS, FAVORIT 600 LSA, FAVORIT 610, FAVORIT 610 LS, FAVORIT 610 LSA, FAVORIT 610 S, FAVORIT 611, FAVORIT 611 LS, FAVORIT 611 LSA, FAVORIT 611 S, FAVORIT 612, FAVORIT 612 LS, FAVORIT 612 LSA, FAVORIT 612 S, FAVORIT 614, FAVORIT 614 LS, FAVORIT 614 LSA, FAVORIT 614 S, FAVORIT 615, FAVORIT 615 LS, FAVORIT 615 LSA |
Manufacturer Part Numbers
| AGCO |
|---|
| C00090010200 |
| Bosch |
| 0120400639, 0120400679, 0120400680, 0120400789, 0120488134, 0120488138, 0120488233, 0120489022, 0120489710, 0120489711, 0986031270, 0986038050, 0986039800, 120400789, 120484134, 120484233, 120488134, 120488138, 120488233, 120489022, 120489710, 120489711, 986031270, 986038050, 986039800 |
| Case IH |
| 3218544EX, 3218544R91 |
| Claas |
| 6005706652, 6854980 |
| Deutz-Fahr |
| 01163752, 1162339, 1163752, 1163753, 1171638 |
| Fendt |
| C000900010200, G345900011010, X830060020, X830060022 |
| Fiat |
| 1532068C2, 84535280 |
| Iskra |
| IA0499 |
| Lester |
| 12835, 13147, 14389, 14390, 14809, 23672, 23712 |
| Lucas |
| LRA00617, LRA02712, LRA617 |
| Magnetimar |
| 2522976, 2940526 |
| Magneton |
| 9516693 |
| Mercedes Benz |
| 61541602 |
| Steyr |
| 61000090072 |
| Valeo |
| 432989, 433002, 436135, 436266, 436269, 436414 |
| Volvo |
| 6205473 |
