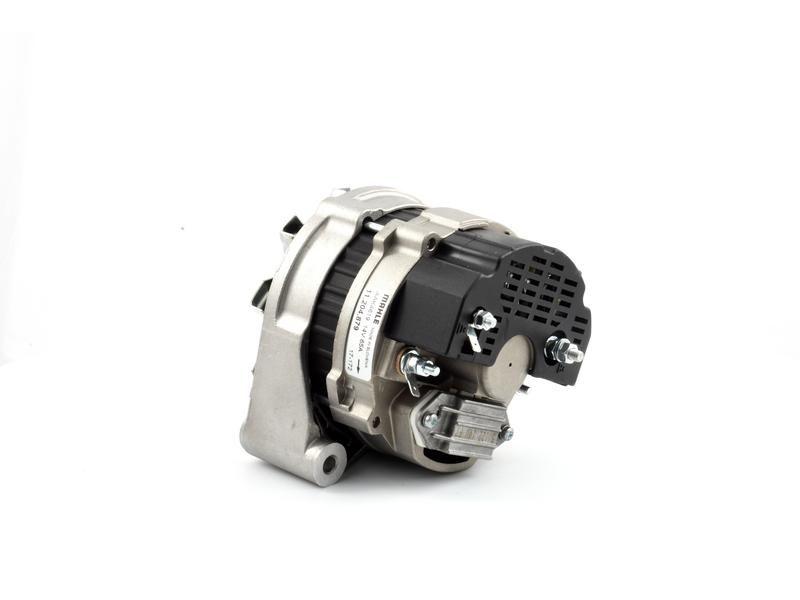

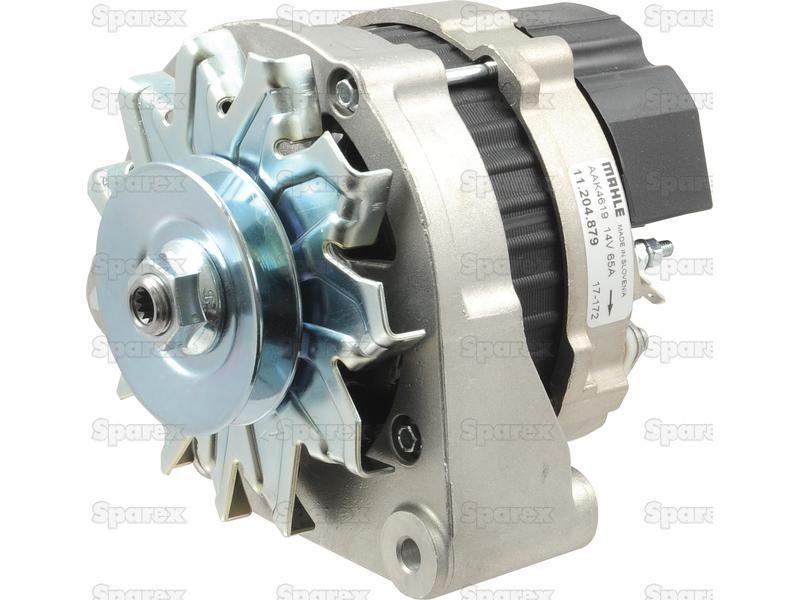

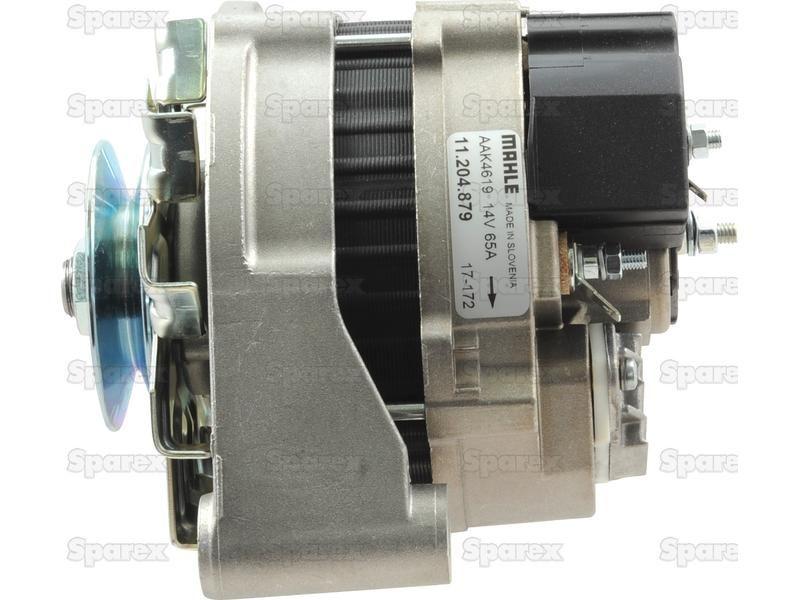

Alternator (Mahle) - 14V, 65 Amps for Fendt
Part Number: S.359410Categories: Electrical Accessories
Part Number: S.359410
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 68mm
Technical Information
| a Angle ° | -60 |
| A mm | 56 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Spade Terminal |
| D mm | 21 |
| Fan Type | External |
| Height mm | 180 |
| Length mm | 250 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916 |
| Shaft Length mm | 32 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190 |
Models
| Fendt |
|---|
| FARMER 240 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120489043, 0120489044, 0120489057, 0120489058, 0120489685, 0120489686, 0120489687, 0120489688, 0986030710, 0986031240, 120489043, 120489044, 120489057, 120489058, 120489685, 120489686, 120489687, 120489688, 986030710, 986031240 |
| Case IH |
| 1532068C1, 3218544R91, 84535280 |
| Claas |
| 6005719368 |
| Iskra |
| IA0215 |
| Lester |
| 14332, 20287, 20982, 20983 |
| Lucas |
| LRA00981, LRA00982, LRA981, LRA982 |
| Valeo |
| 432843, 436136, 436137, 436286, NA051 |
