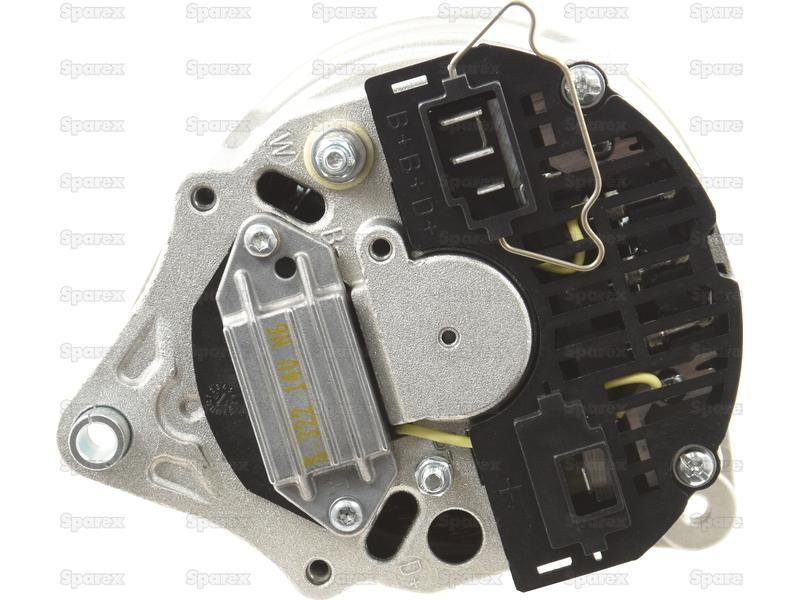

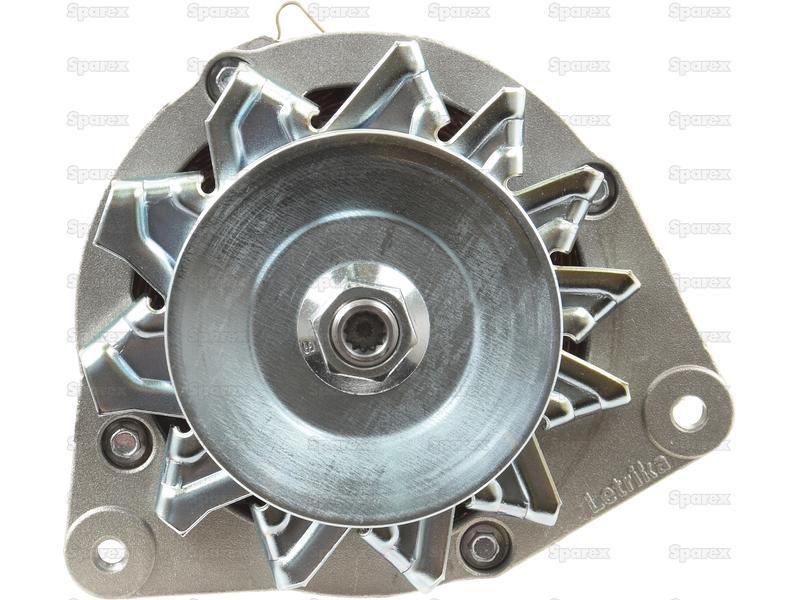

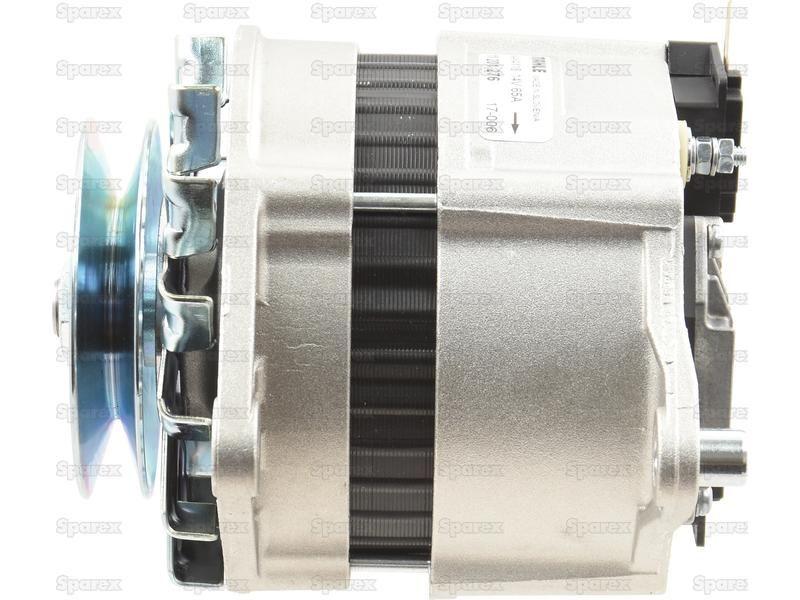

Alternator (Mahle) - 14V, 65 Amps for Valmet & Valtra 8200 (Mega Series)
Part Number: S.35929Categories: Electrical Accessories
Part Number: S.35929
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 65 Amps Pulley type: Single Groove, Pulley Ø: 90mm
Technical Information

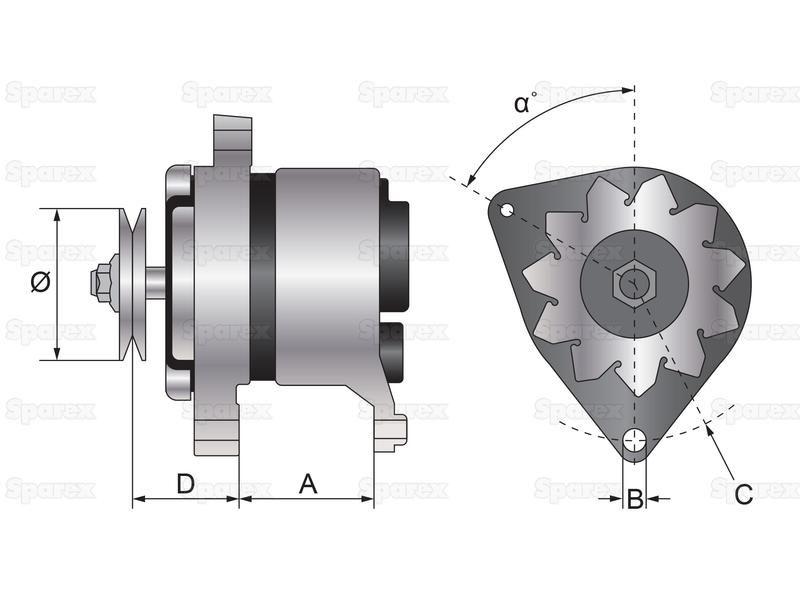

| a Angle ° | -60 |
| A mm | 86 |
| Amps | 65 |
| B mm | 8.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 83 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Connector |
| D mm | 37 |
| Fan Type | External |
| Height mm | 165.1 |
| Length mm | 209.5 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 90 |
| Pulley type | Single Groove |
| Related Products | 35911, 35914, 35916, 36003 |
| Shaft Length mm | 34 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Case IH |
|---|
| 84530361, 92281C1, K302424, K307720 |
| Claas |
| 6005706647 |
| David Brown |
| 92281C1, K302424, K307720 |
| Iskra |
| IA0276 |
| Landini |
| 339009X1, 339368X1, 3533916M1, 3538541M91, 3552606M1, 3552682M91, 390048X1 |
| Lester |
| 12143, 14023 |
| Lucas |
| 24049, LRA00131, LRA131, LRA582 |
| Magnetimar |
| 9AR2919 |
| Massey Ferguson |
| 3477851R91, 3538541M91, 3760524M91, 3904254M91, 3930504E1, 3930504E1ATG, 3930504R1 |
| Valeo |
| 432864, NA066 |
