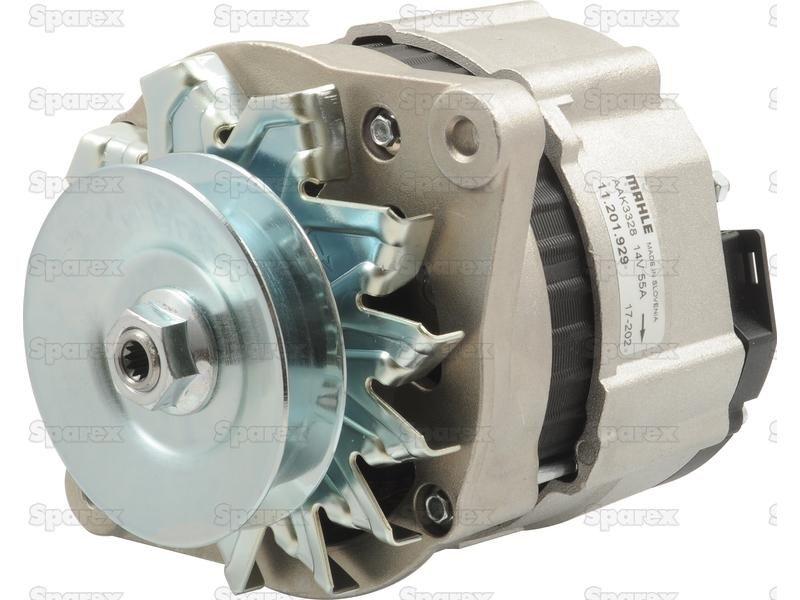

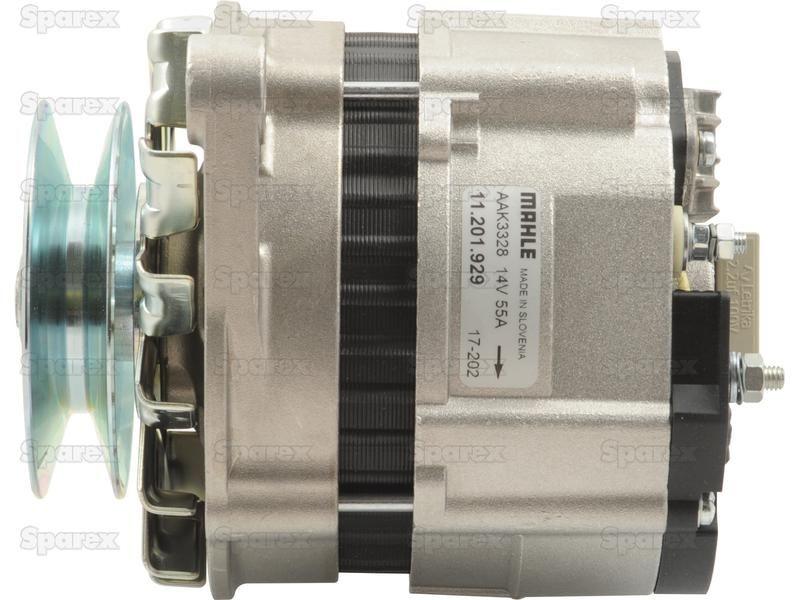

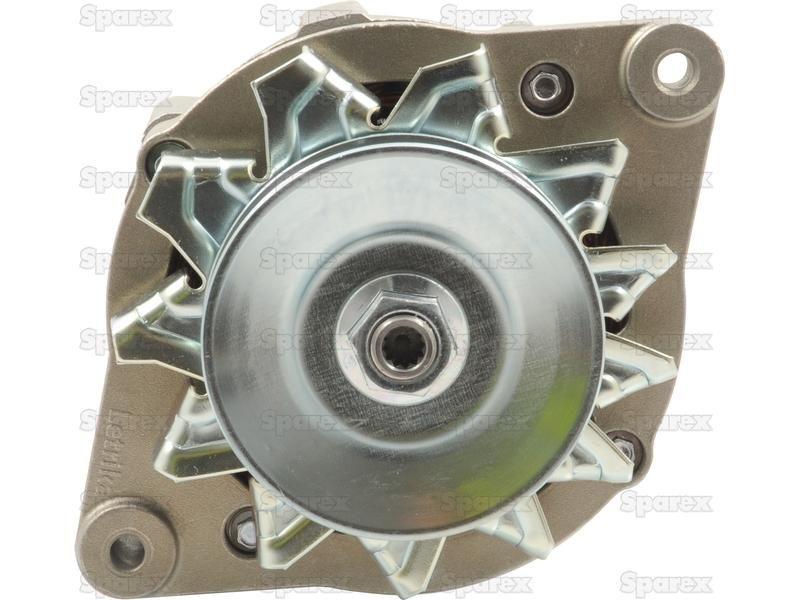

Alternator (Mahle) - 14V, 55 Amps for John Deere 3030 (30 Series)
Part Number: S.35951Categories: Electrical Accessories
Part Number: S.35951
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 55 Amps Pulley type: Single Groove, Pulley Ø: 87mm
Technical Information

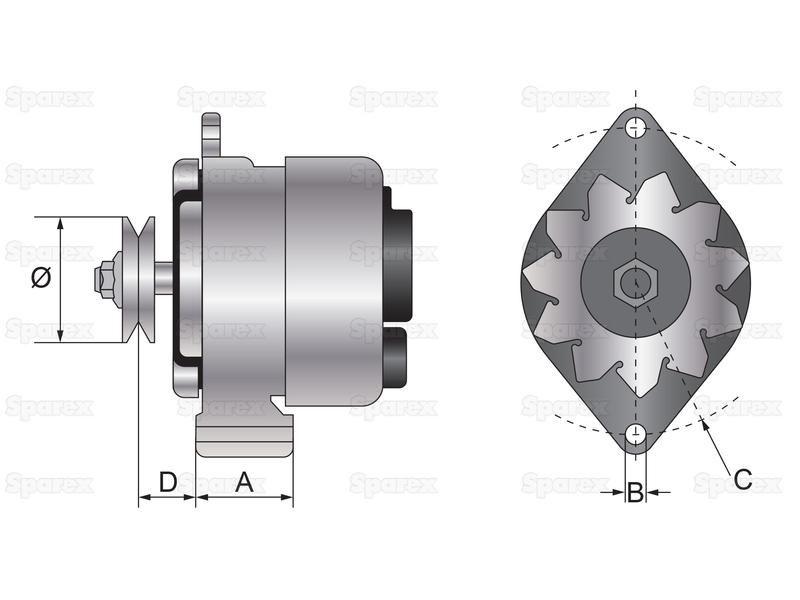

| A mm | 56 |
| Amps | 55 |
| B mm | 8.2 |
| Belt pulley width mm | 15.2 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Ring Terminal |
| D mm | 27 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.5 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 87 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900010090 |
| Bosch |
| 0120300535, 0120339512, 0120339544, 0120400775, 0120489703, 0120489704, 0986030110, 0986033320, 120339539, 120489290, AL906X |
| Iskra |
| IA0453 |
| John Deere |
| AL28516, AL35998, AL81436, AZ26910 |
| Lester |
| 12140, 13107, 13195, 13199 |
| Lucas |
| 23544, LRA00621, LRA621 |
| Magnetimar |
| 9AR2968 |
| Magneton |
| 9515511 |
| Same |
| 2.9439.030.0, 2.9439.070.0, 2.9439.170.0 |
| Valeo |
| 432993, 436267 |
