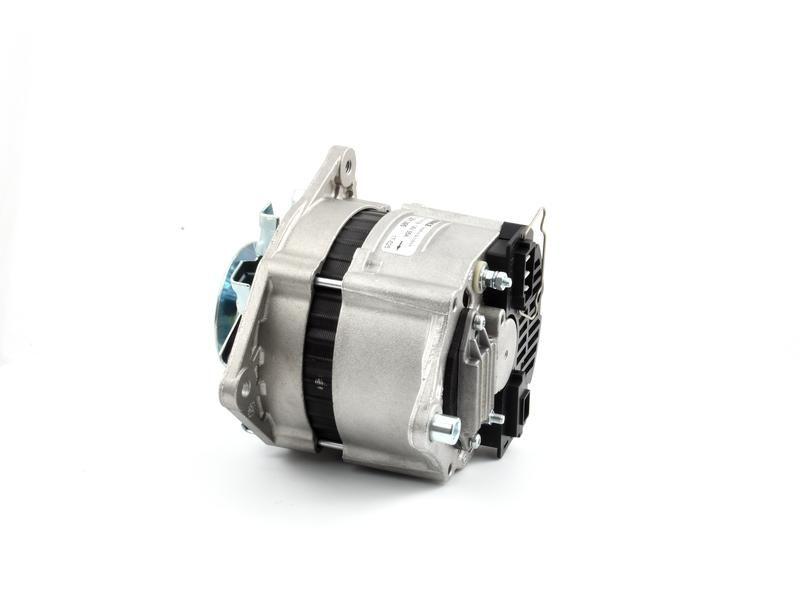

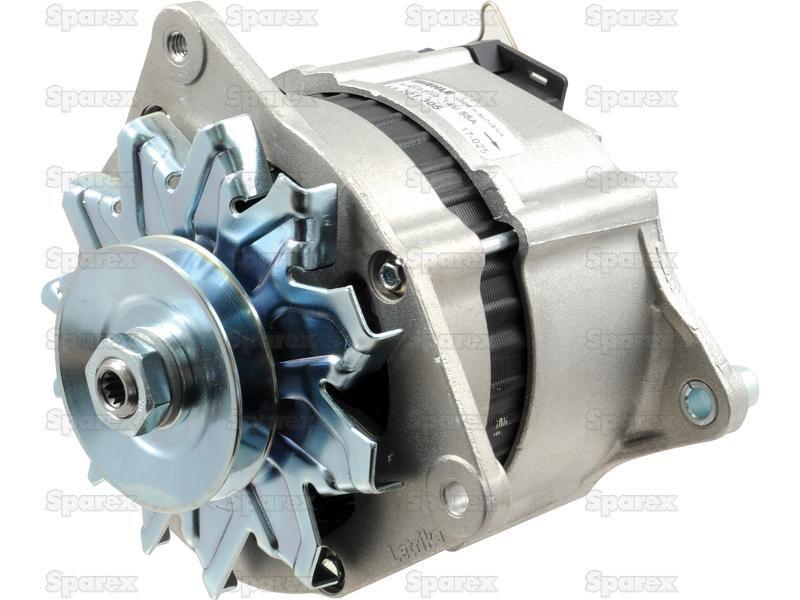

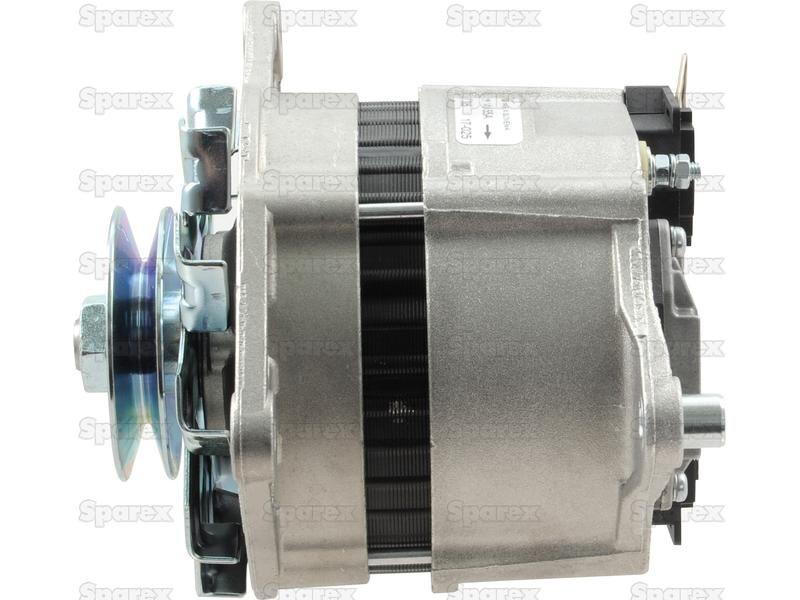

Alternator (Mahle) - 14V, 55 Amps for Landini 8500 (500 Series)
Part Number: S.35925Categories: Electrical Accessories
Part Number: S.35925
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 55 Amps Pulley type: Single Groove, Pulley Ø: 68mm

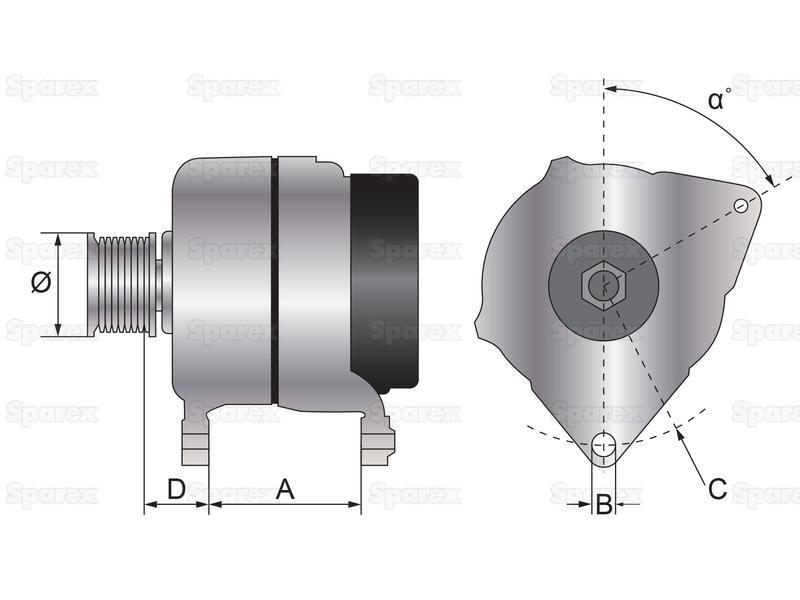

Technical Information
| a Angle ° | 60 |
| A mm | 86 |
| Amps | 55 |
| B mm | 8.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 83 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Connector |
| D mm | 36.6 |
| Fan Type | External |
| Height mm | 152.4 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Length mm | 33 |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120489050, 0120489082, 0120489567, 0120489568, 0120489592, 0120489593, 0120489937, 0120489938, 0986030780, 0986030800, 120489050, 120489082, 120489567, 120489568, 120489592, 120489593, 120489937, 120489938, 986030780, 986030788, 986030800 |
| Claas |
| 6005701122 |
| Ford New Holland |
| 5007074, 76BB10300KD, 77FB10300KB, 81BB10300EA, 82HF10300A2A, 84FB10300MA |
| Iskra |
| IA0305 |
| Lester |
| 12073, 13116, 13138, 14030, 14046, 14048, 20249, 20250, 20462, 22777, 23626 |
| Lucas |
| 23701, 23864, 24023, 24089, 24098, 24118, 24119, LRA00105, LRA00113, LRA00202, LRA00362, LRA462, LRA653 |
| Renault |
| 6005007547, 6005701122, 6005701129, 7701028804, 7701032400 |
| Valeo |
| 432819, 433166, 436166, NA014, VA103, VA106 |
