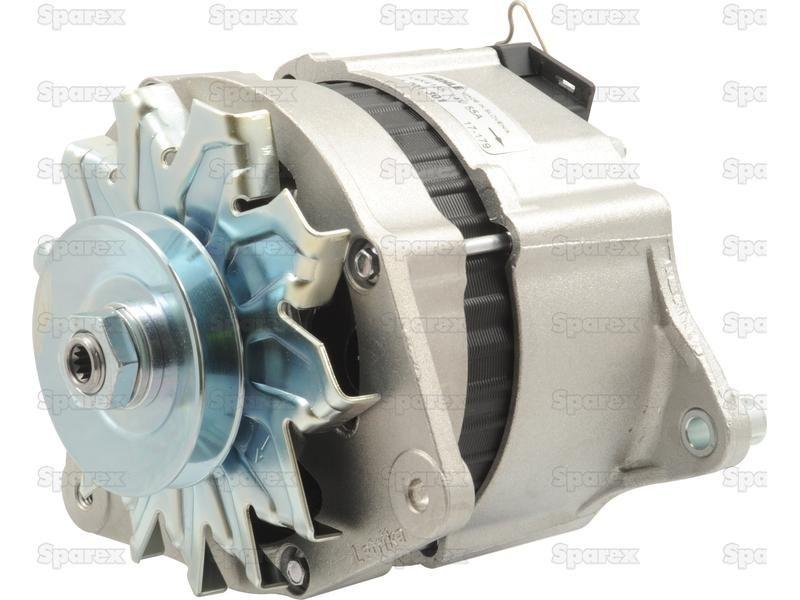

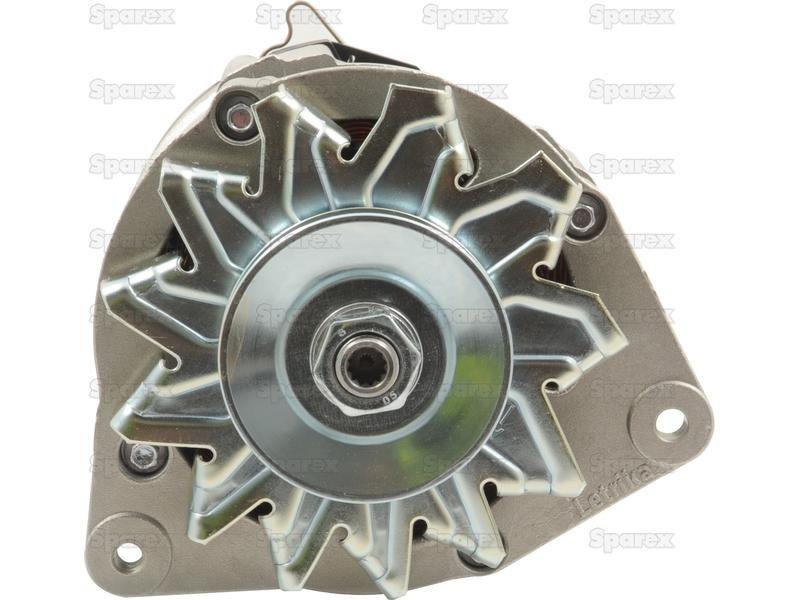

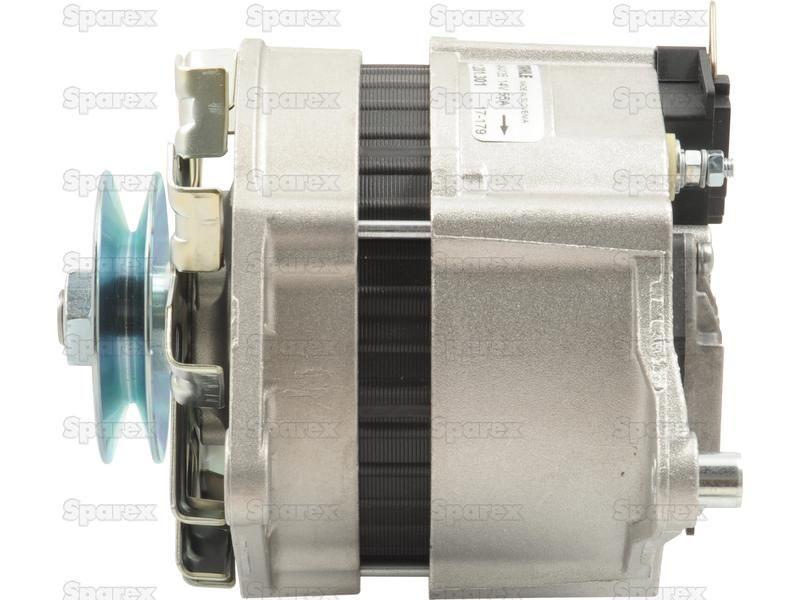

Alternator (Mahle) - 14V, 55 Amps for Landini C5000 (Crawler Tractor - Cingolati Series)
Part Number: S.359660Categories: Electrical Accessories
Part Number: S.359660
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 55 Amps Pulley type: Single Groove, Pulley Ø: 68mm
Technical Information

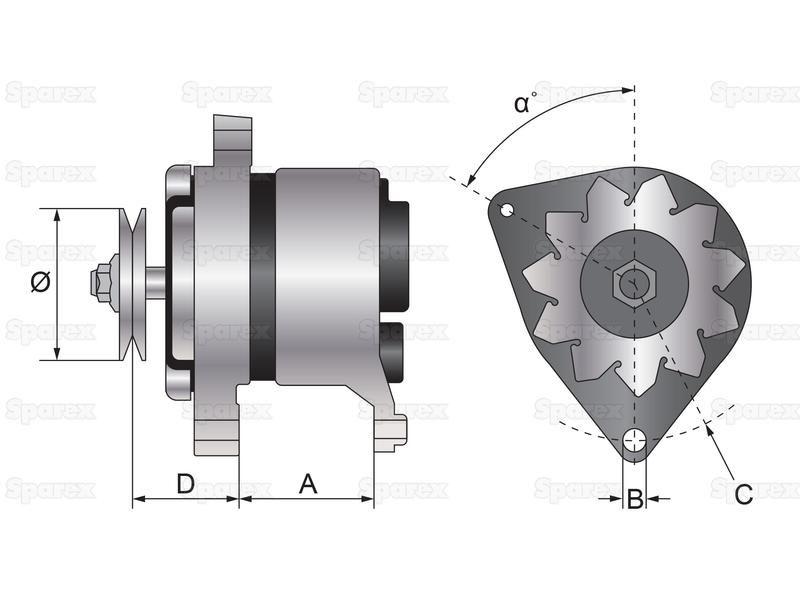

| a Angle ° | -60 |
| Volts | 14V |
| Height (mm) | 184.2 |
| Width (mm) | 190.5 |
| Length (mm) | 254 |
| Shaft Length (mm) | 34 |
| Related products | 35911,35916,36003 |
| Alternative to | 359661 |
| D (mm) | 36.6 |
| Amps | 55 |
| Pulley Ø (mm) | 68 |
| Mounting Hole mm | 8.2 |
| B (mm) | 8.2 |
| C (mm) | 83 |
| Tariff Code | 8511400090 |
| A (mm) | 86 |
| Belt pulley width (mm) | 9.7 |
| Connection 3 | B+ |
| Connection 4 | B+ |
| Connection Type | Connector |
| Connection 2 | D+ |
| Fan Type | External |
| Nut | Hex Nut |
| Brand | Mahle |
| Pulley type | Single Groove |
| Shaft Type | Splined |
| Number of holes | Two |
| Connection 1 | W |
| Supplied with Fan | Yes |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120489048, 0120489074, 0120489084, 0120489086, 0120489087, 0120489088, 0120489090, 0120489091, 0120489103, 0120489345, 0120489508, 0120489522, 0120489561, 0120489562, 0120489594, 0120489595, 0120489617, 0120489666, 0120489667, 0120489705, 0120489706, 0120489803, 0120489804, 0120489839, 0120489840, 0120489841, 0120489842, 0120489843, 0120489844, 0120489896, 0120489940, 0986030370, 0986030760, 0986030761, 0986030791, 0986030798, 0986031050, 0986031350, 120489048, 120489074, 120489086, 120489087, 120489088, 120489091, 120489103, 120489522, 120489594, 120489595, 120489617, 120489666, 120489667, 120489803, 120489804, 120489896, 120489940, 9120331854, 9120331864, 9120331872, 986030370, 986030760, 986030761, 986030768, 986030790, 986030791, 986030798, 986031050, 986031058, 986031350, 986031358, AL119X |
| Case IH |
| 245531C91, 3113331R92, 3125125R91, 3125132R91, 3125132R92, 3125848R91, 3127971R91, 3129075R91, 3129850R91, 3129851R91, 84082C91, 84327799, 91851C91, 92293C1, K306549, K650342, K925009 |
| David Brown |
| 92293C1, K306549, K925009 |
| Ford New Holland |
| 1485514, 1504563, 5003898, 5003903, 5007062, 5007075, 5007077, 6014809, 6056325, 715F10300BA, 715F10300BB, 72GB10300LA, 74EB10300FA, 75AB10300LA, 75AB10300NA, 76BB10300HA, 76BB10300HB, 77FB10300KA, 78FB10300AA, 78FB10300AB, 78FB10300BA, 78FB10300BB, 78FB10300BC, 78FB10346AB, 79BB10300AC, 79BB10300AD, 81AB10300NA, 81GB10300AA, 82FB10300CA, 92293C1 |
| HELLA LTD |
| CA17H |
| Iskra |
| IA0301 |
| Landini |
| 1897695M91, 2871A141, 3477851M91 |
| Lester |
| 12041, 12046, 12073, 12144, 12216, 13073, 13107, 13116, 14013, 14025, 14029, 14037, 14048, 14049, 20227, 20230, 20234, 20235, 20274, 20461, 21103, 22009, 23722 |
| Leyland |
| BAU1199 |
| Lucas |
| 23851, 23983, 24052, 24054, 24061, 24065, 24134, 24137, 24157, 24199, LRA00103, LRA00106, LRA00147, LRA00228, LRA00273, LRA00274, LRA00275, LRA00375, LRA00583, LRA100, LRA103, LRA106, LRA147, LRA228, LRA274, LRA275, LRA460, LRA583 |
| Massey Ferguson |
| 1447634M91, 1897695M91, 3638512R91, 3638813R1, 3698016M91, 3930501E91, 3930501E91ATG, 3930501R91, 3930501T |
| Perkins |
| 23737R, 23962R, 2871A102, 2871A105, 2871A132, 2871A136, 2871A141, 2871A163 |
| Renault |
| 6005003145, 6005701121 |
| Valeo |
| 432825, 432836, 433181, 436137, 436167, 436171, 436172, 436179, 436186, 436271, NA028, NA036, VA104, VA107, VA111 |
