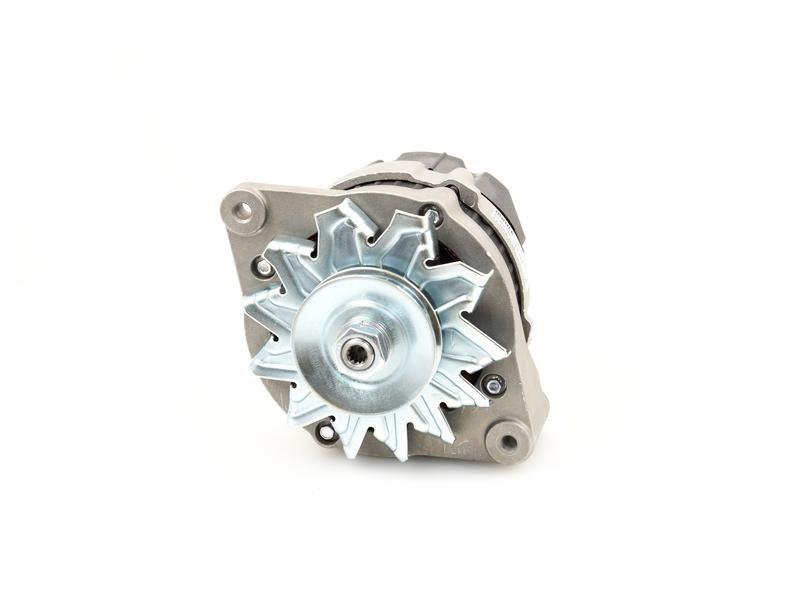

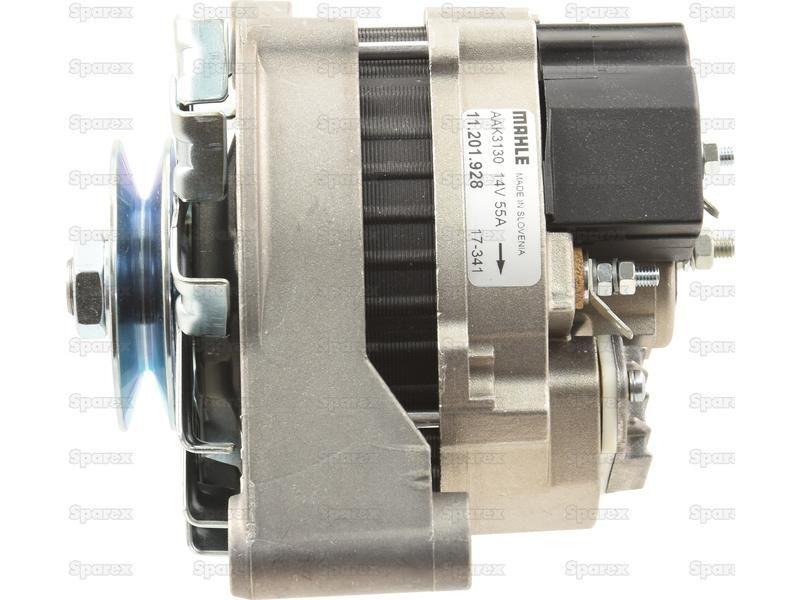

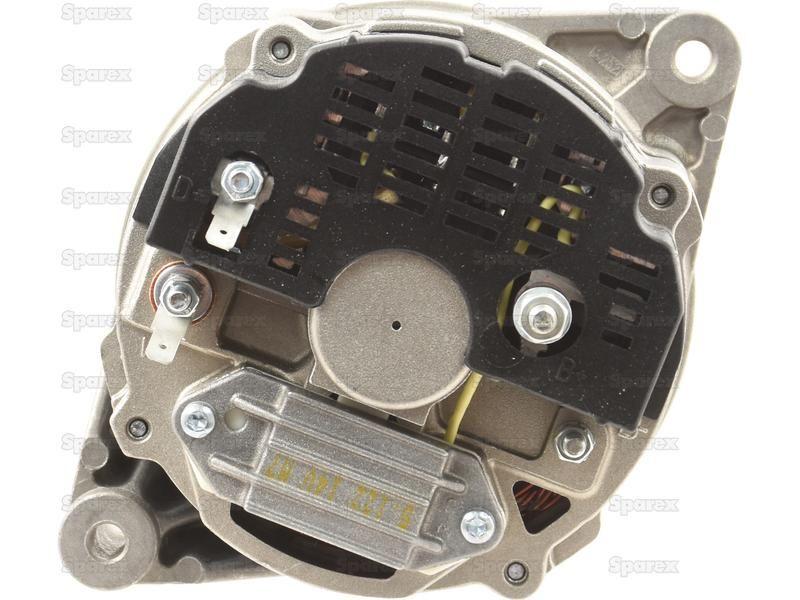

Alternator (Mahle) - 14V, 55 Amps for John Deere 3030 (30 Series)
Part Number: S.359500Categories: Electrical Accessories
Part Number: S.359500
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 55 Amps Pulley type: Single Groove, Pulley Ø: 68mm
Technical Information

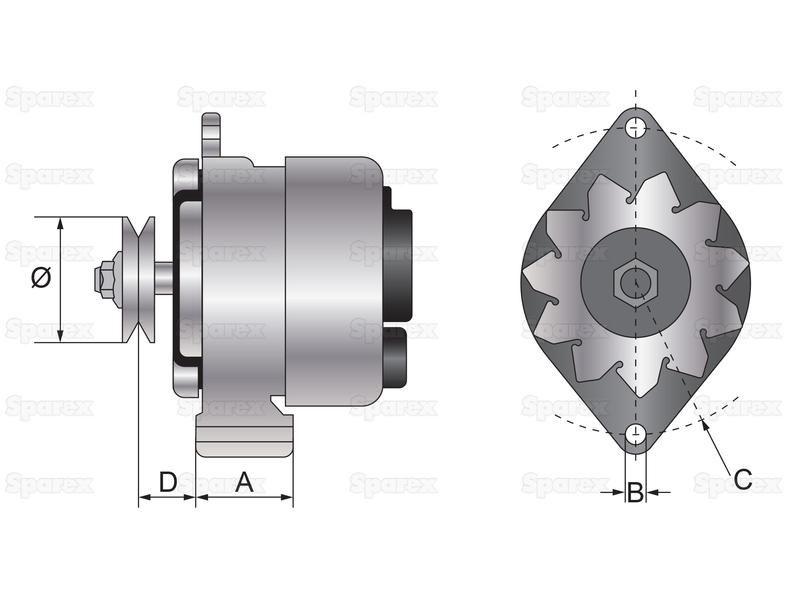

| A mm | 56 |
| Amps | 55 |
| B mm | 8.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Spade Terminal |
| D mm | 20.7 |
| Fan Type | External |
| Height mm | 160 |
| Length mm | 210 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916 |
| Shaft Length mm | 35 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 180 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0120400614, 0120400615, 0120488158, 0120488159, 0120489116, 0120489117, 0120489118, 0120489119, 0120489635, 0120489636, 0120489766, 0120489767, 0120489768, 0120489769, 0986030870, 0986030871, 0986030880, 0986030881, 120400614, 120400615, 120488158, 120488159, 120488190, 120488191, 120489116, 120489117, 120489118, 120489119, 120489635, 120489636, 120489766, 120489767, 120489768, 120489769, 986030870, 986030871, 986030880, 986030881 |
| Iskra |
| IA0309 |
| Lester |
| 13030, 20324, 20345, 20346, 20790, 20791, 20793, 20794, 21131, 21134, 23241 |
| Lucas |
| LRA00207, LRA00313, LRA00346, LRA207, LRA313, LRA346, LRB00131 |
| Valeo |
| 2940353, 432858, 433054, 433150, 436149, 436150, 436287, NA224, VA114, VA163, VA375 |
