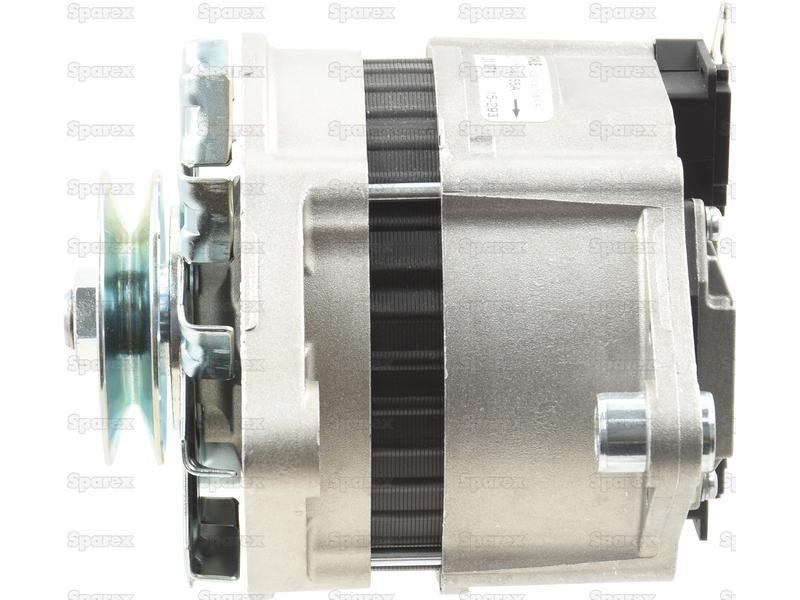

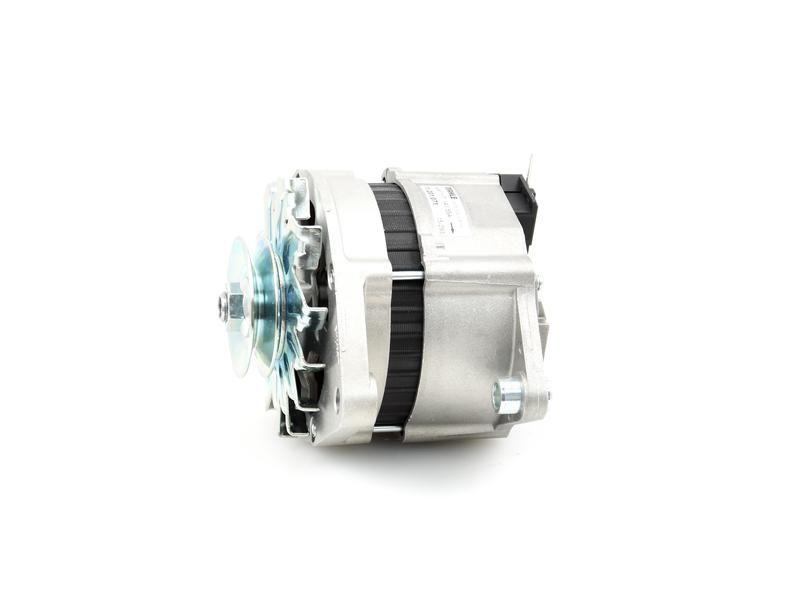

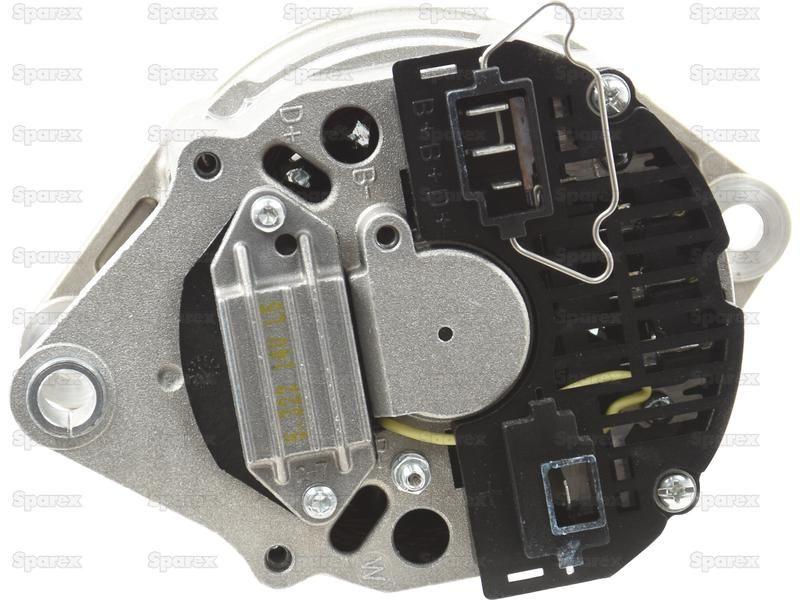

Alternator (Mahle) - 14V, 55 Amps for Fiat 100-90 (90 Series)
Part Number: S.35960Categories: Electrical Accessories
Part Number: S.35960
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 55 Amps Pulley type: Single Groove, Pulley Ø: 68mm
Technical Information

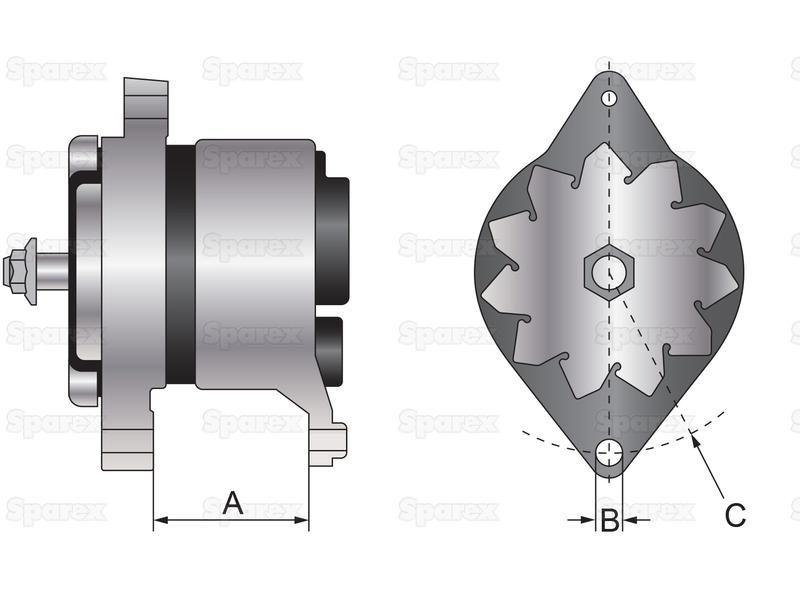

| A mm | 62.6 |
| Amps | 55 |
| B mm | 12.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 85 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Connector |
| D mm | 44.5 |
| Fan Type | External |
| Height mm | 180 |
| Length mm | 250 |
| Mounting Hole mm | 12.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Length mm | 33 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190 |
Manufacturer Part Numbers
| Case IH |
|---|
| 4711700, 4808495 |
| Claas |
| 6005706646 |
| Fiat |
| 153622133, 2000304, 4711700, 4765725, 4787665, 4787673, 4808495, 4808511, 4808517, 4808607, 77515410 |
| Iskra |
| IA0071 |
| Lester |
| 12583 |
