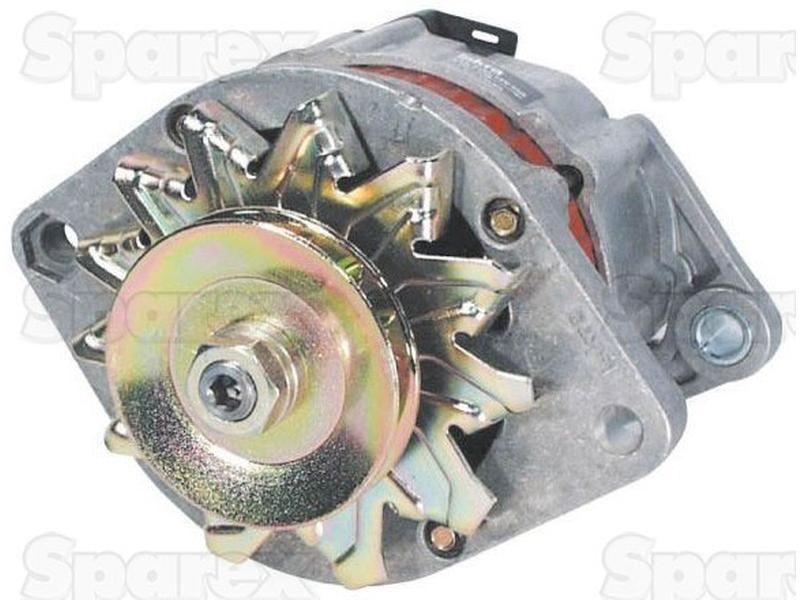

Alternator (Mahle) - 14V, 55 Amps Bosch, Fiat, Iskra, Lester, Lucas, Valeo
Part Number: S.35945Categories: Electrical Accessories
Part Number: S.35945
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 55 Amps Pulley type: Single Groove, Pulley Ø: 68mm
Technical Information
| A mm | 68 |
| Amps | 55 |
| B mm | 12.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 85 |
| Connection Type | Spade Terminal |
| D mm | 45 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 12.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft type | Hex |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Bosch |
|---|
| 120488194, 120488195, 120489019, 120489020, 120489132, 120489133, 120489134, 120489135, 120489402, 120489456, 120489457, 120489672, 120489673, 120489740, 120489741, 120489920, 120489921, 9120144209, 9120144239, 986031410, 986033890, 986033891, 986033980, 986033981, 986036230 |
| Fiat |
| 4382200, 4386883, 4392831, 4470411, 4475303, 4478678, 46231723, 5920974, 5962647, 5972197, 5976915, 7575998, 77211411, 77323410, 77338410, 77510410, 77510411 |
| Iskra |
| IA0571 |
| Lester |
| 13204, 13205, 14057, 14064, 14293, 14610, 20601, 20712, 20866, 20867, 20868, 20869 |
| Lucas |
| LRA00269, LRA00457, LRA00595, LRA00597 |
| Valeo |
| 432746, 433117, 433374, 436110, 436112, 436238, VA147 |
