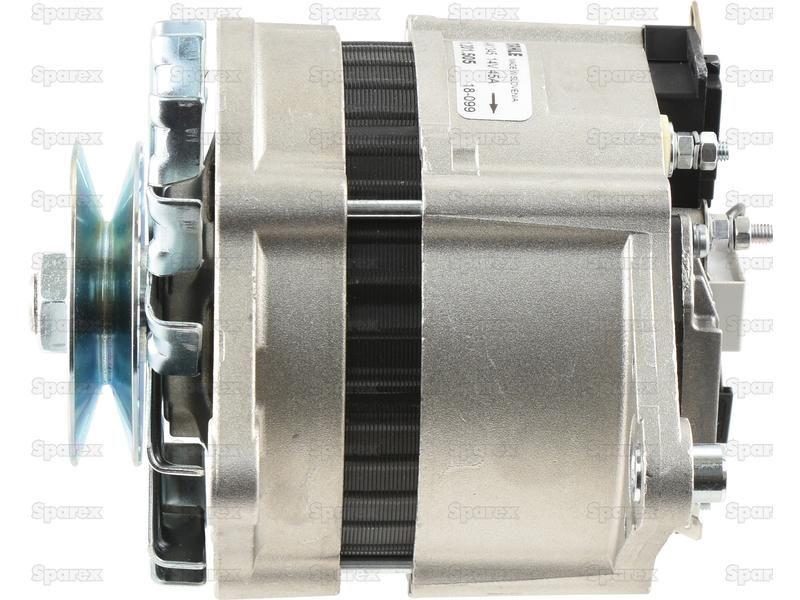

Alternator (Mahle) - 14V, 45 Amps for Ford New Holland 7610 (10 Series)
Part Number: S.361560Categories: Electrical Accessories
Part Number: S.361560
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 45 Amps Pulley type: Single Groove, Pulley Ø: 75mm
Technical Information

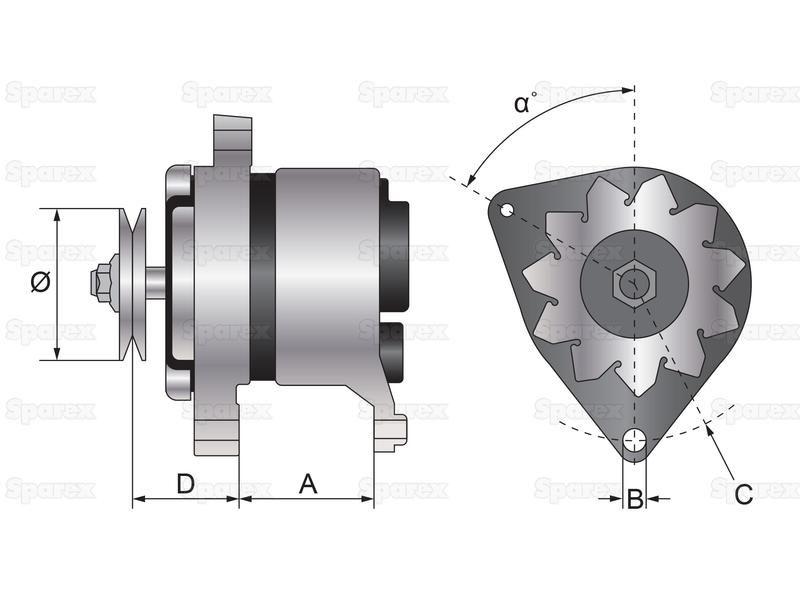

| a Angle ° | -60 |
| A mm | 80 |
| Amps | 45 |
| B mm | 8.2 |
| Belt pulley width mm | 12.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | S (Battery Sensor) |
| Connection 2 | W (Speed Signal) |
| Connection 3 | D+ (Battery charge indicator) |
| Connection 4 | B+ (Continuous plus) |
| Connection Type | Connector |
| D mm | 35.5 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 75 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916 |
| Shaft Length mm | 33 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Technical Specifications | Please refer to the Technical Document for full wiring instructions. |
| Volts | 14V |
| Width mm | 184.2 |
Manufacturer Part Numbers
| Case IH |
|---|
| 300381, 51470510, 83911362, 83937290, 83948180, 83961474, N600212S36, N802772S36 |
| Ford New Holland |
| 12647121, 300381, 3961474, 51470510, 81837760, 82857207, 83909614, 83909615, 83911362, 83924729, 83937290, 83948151, 83948180, 83948394, 83959709, 83961474, 83999878, 87759763, 9840875, D6NN10B376A, E0NN10B376CA, E0NN10B381BA11B, E3NN10B376AA, E3NN10B376AB, E3NN10B376AC, E3NN10B376AD, E630028S71, F0NN10B376CA, F1NN10B376AA, N600212S36, N802772S36 |
| Iskra |
| IA0505 |
| Lester |
| 12089, 12152, 14022, 14029 |
| Lucas |
| LRA00109, LRA00122, LRA00132, LRA00530, LRA109, LRA122, LRA132, LRA530 |
