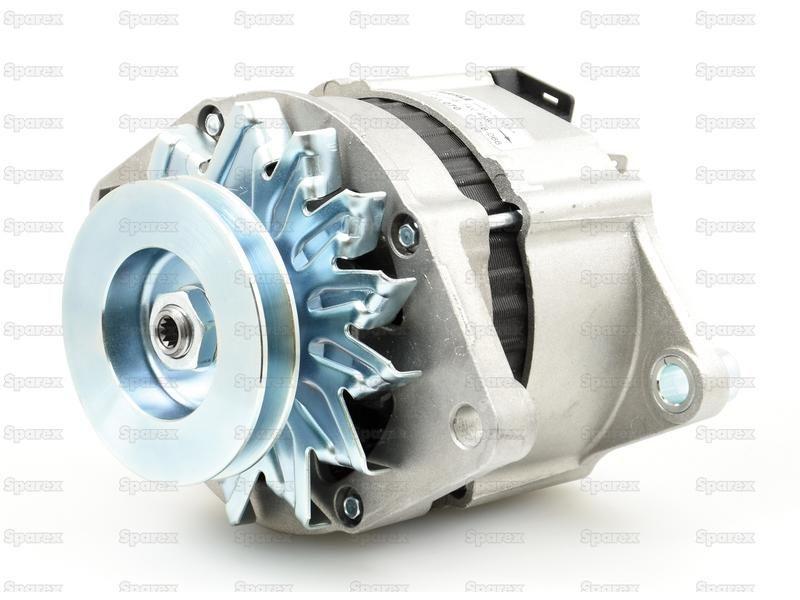

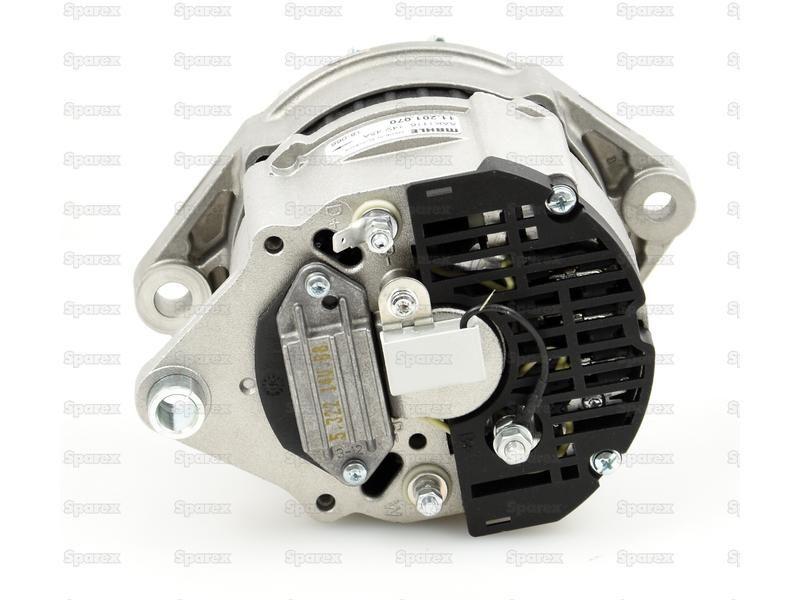

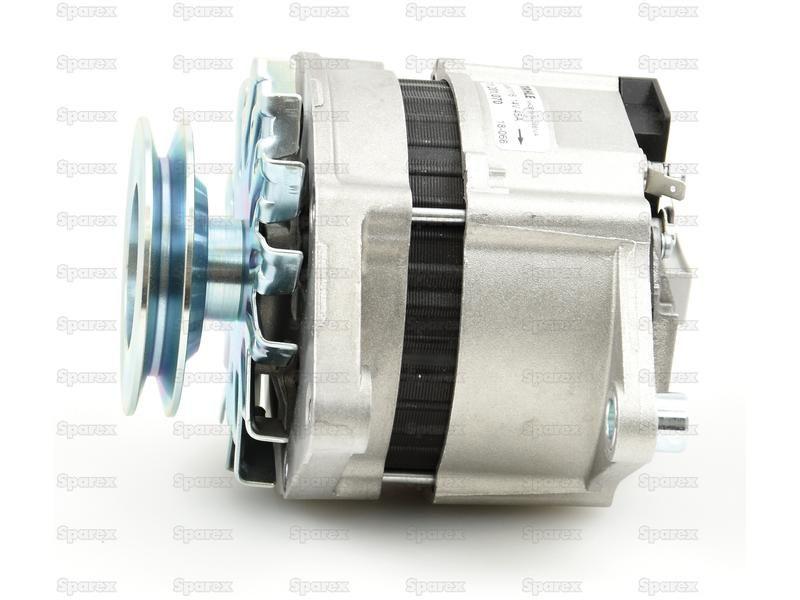

Alternator (Mahle) - 14V, 45 Amps for Fiat L95 (L Series)
Part Number: S.35964Categories: Electrical Accessories
Part Number: S.35964
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 45 Amps Pulley type: Single Groove, Pulley Ø: 90mm
Technical Information

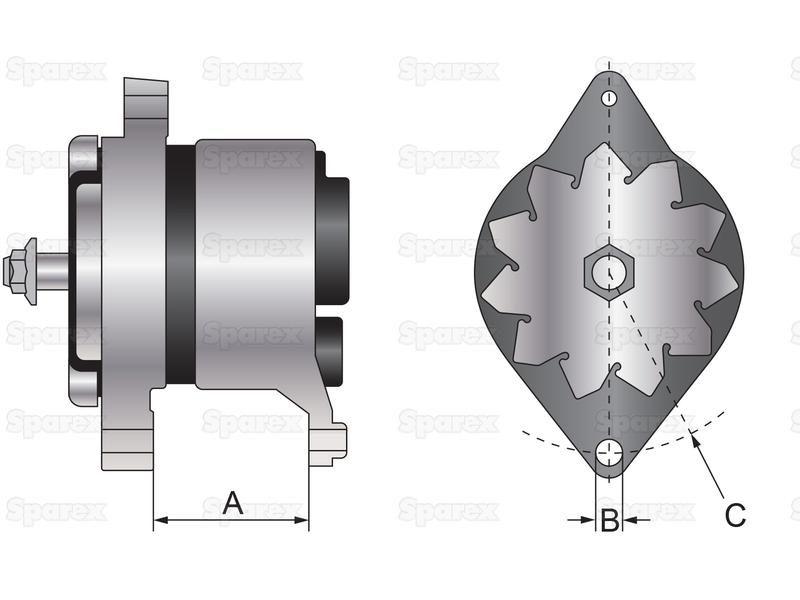

| A mm | 70 |
| Amps | 45 |
| B mm | 12.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 85 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Spade Terminal |
| D mm | 58 |
| Fan Type | External |
| Height mm | 180 |
| Length mm | 250 |
| Mounting Hole mm | 12.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 90 |
| Pulley type | Single Groove |
| Related Products | 35911, 35916, 36003 |
| Shaft Length mm | 35 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 185 |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900010030 |
| Fiat |
| 4242730, 4772683, 4787590, 4808498, 4808504 |
| Ford New Holland |
| 4772683, 4808498 |
| Iskra |
| IA0070 |
| Lester |
| 12580 |
