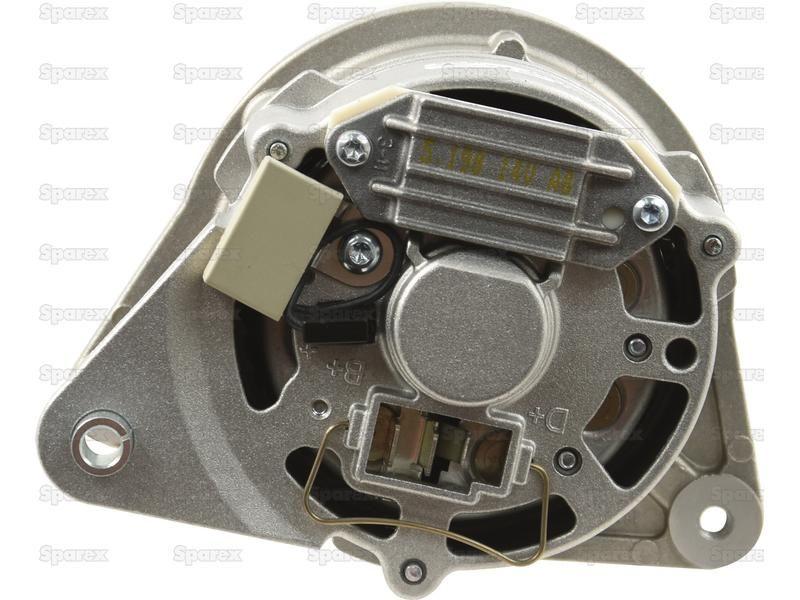

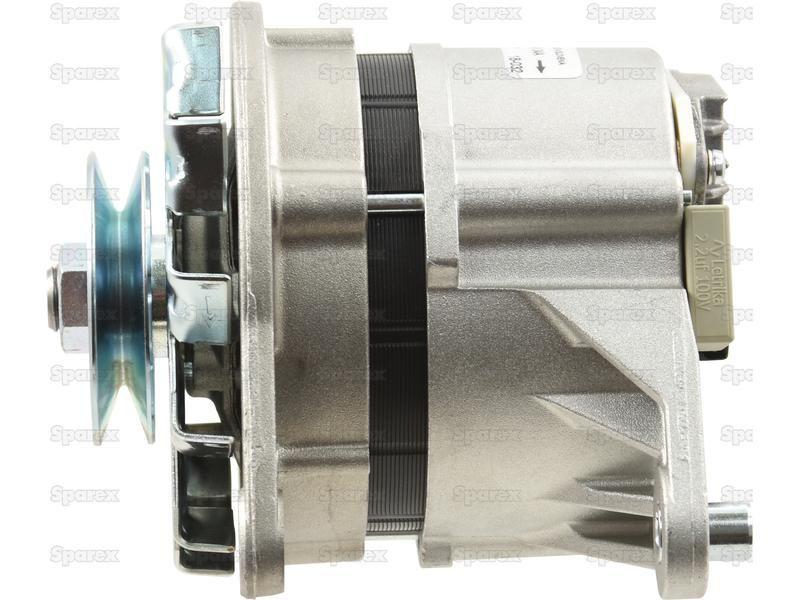

Alternator (Mahle) - 14V, 34 Amps for Leyland 4100 (Leyland)
Part Number: S.359590Categories: Electrical Accessories
Part Number: S.359590
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 34 Amps Pulley type: Single Groove, Pulley Ø: 62mm
Technical Information

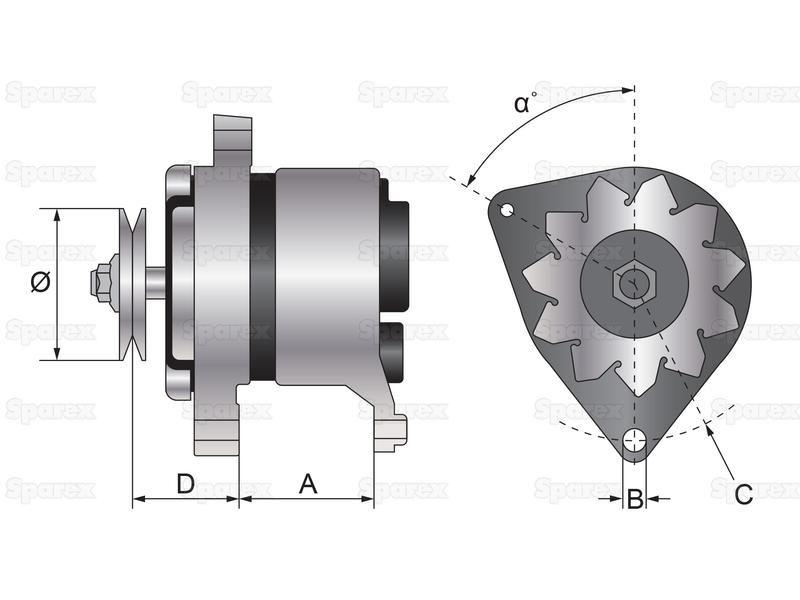

| a Angle ° | -60 |
| Volts | 14V |
| Height (mm) | 165.1 |
| Width (mm) | 177.8 |
| Length (mm) | 209.6 |
| Shaft Length (mm) | 31 |
| D (mm) | 34 |
| Amps | 34 |
| Related products | 35910 |
| Alternative to | 359591 |
| Pulley Ø (mm) | 62 |
| A (mm) | 70 |
| Mounting Hole mm | 8.2 |
| B (mm) | 8.2 |
| C (mm) | 83 |
| Tariff Code | 8511500090 |
| Belt pulley width (mm) | 9.7 |
| Connection 3 | B+ |
| Connection Type | Connector |
| Connection 2 | D+ |
| Fan Type | External |
| Nut | Hex Nut |
| Brand | Mahle |
| Pulley type | Single Groove |
| Shaft Type | Splined |
| Number of holes | Two |
| Supplied with Fan | Yes |
Manufacturer Part Numbers
| AGCO |
|---|
| C000900010020 |
| Bosch |
| 0986031691, 0986031700, 0986031701, 9120331502, 9120331901, 9120331913, 986031691, 986031700, 986031701 |
| Iskra |
| IA0067 |
| Lester |
| 12039, 12152, 14008, 14013, 14014, 14023, 14025, 14029, 14037, 14049, 20274, 21103 |
| Leyland |
| GEU216 |
| Lucas |
| 23544, 23548, 23565, 23570, 23584, 23593, 23595, 23597, 23598, 23602, 23605, 23606, 23610, 23625, 23635, 23637, 23642, 23647, 23649, 23650, 23651, 23658, 23660, 23664, 23666, 23674, 23678, 23685, 23694, 23695, 23703, 23708, 23713, 23715, 23717, 23718, 23726, 23730, 23731, 23734, 23742, 23745, 23747, 23748, 23750, 23753, 23755, 23769, 23777, 23795, 23796, 23797, 23802, 23804, 23805, 23813, 23814, 23843, 23844, 23847, 23874, 23878, 23886, 23895, 23903, 23904, 23911, 23918, 23919, 23920, 23944, 23990, LRA00100, LRA100 |
| Massey Ferguson |
| 3637261R91 |
| Nuffield |
| GEU216 |
| Renault |
| 6005007750, 6005700083, 7700010614, 7700017032, 7701028801 |
| Valeo |
| 433480, 436140, 436165, VA100, VA112, VA98 |
