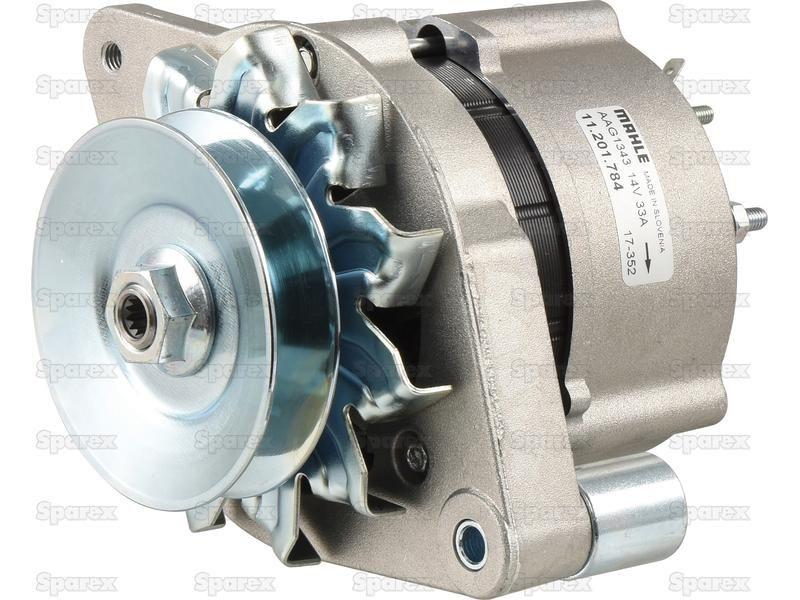

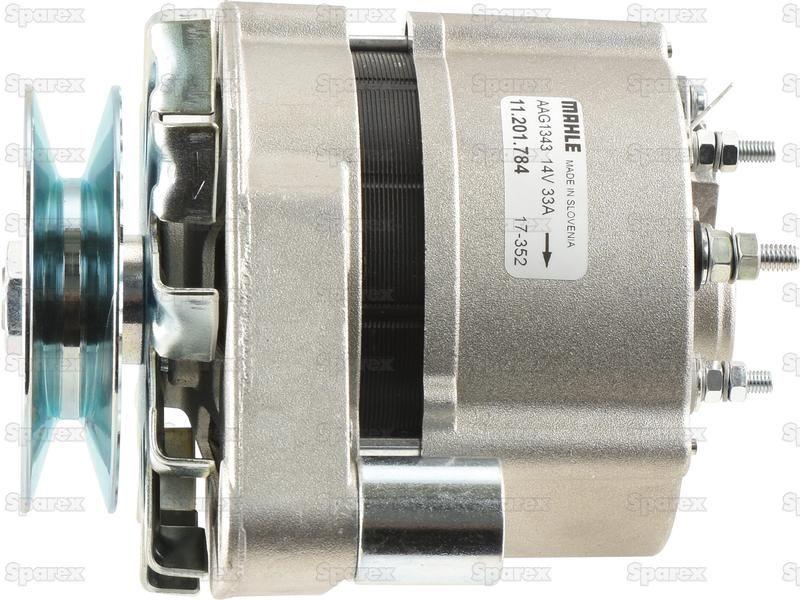

Alternator (Mahle) - 14V, 33 Amps for John Deere 3030 (30 Series)
Part Number: S.36099Categories: Electrical Accessories
Part Number: S.36099
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 33 Amps Pulley type: Single Groove, Pulley Ø: 87mm
Technical Information

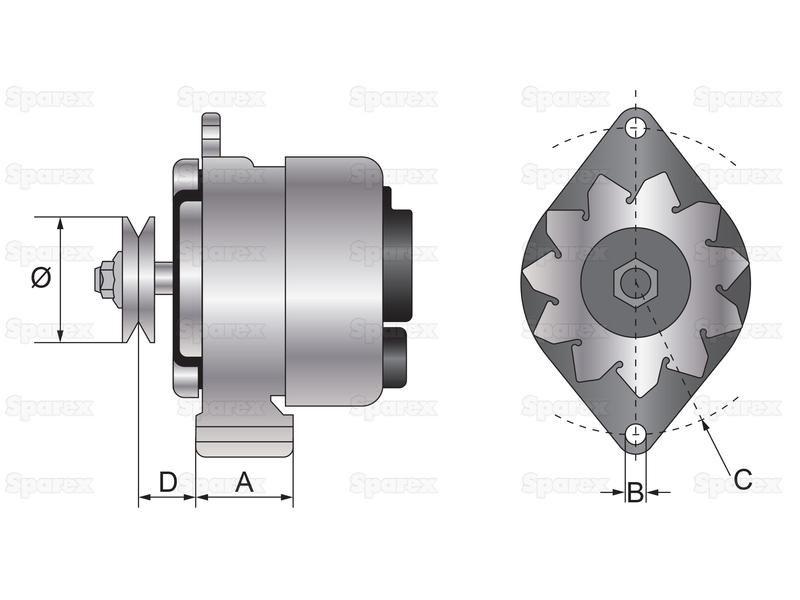

| A mm | 56 |
| Amps | 33 |
| B mm | 8.2 |
| Belt pulley width mm | 15.2 |
| Brand | Mahle |
| C mm | 83 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Ring Terminal |
| D mm | 29.3 |
| Fan Type | External |
| Height mm | 157.1 |
| Length mm | 206.4 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 87 |
| Pulley type | Single Groove |
| Shaft Type | Hex |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 174.6 |
Manufacturer Part Numbers
| AGCO |
|---|
| C00090001018 |
| Agria |
| 35544, 51750 |
| Bosch |
| 0120143003, 0120300516, 0120300517, 0120300562, 0120339511, 0120339513, 120143003, 120300516, 120300517, 120300535, 120300562, 120339511, 120339512, 120339513, 120339544, 120339545, 120400775, 986030110, AL902X, AL904X |
| Claas |
| 6005706662, 790.182.0, 7901820 |
| Hako |
| 90158007 |
| Iskra |
| IA0784 |
| John Deere |
| AL62401, AR62401, AZ23575, TY6605 |
| Lester |
| 13100, 13194 |
| Lucas |
| LRA01046, LRB00136, LRB136 |
| Mercedes Benz |
| 61542902 |
| Same |
| 294390300, 294390700, 294391700 |
| Valeo |
| 436267 |
