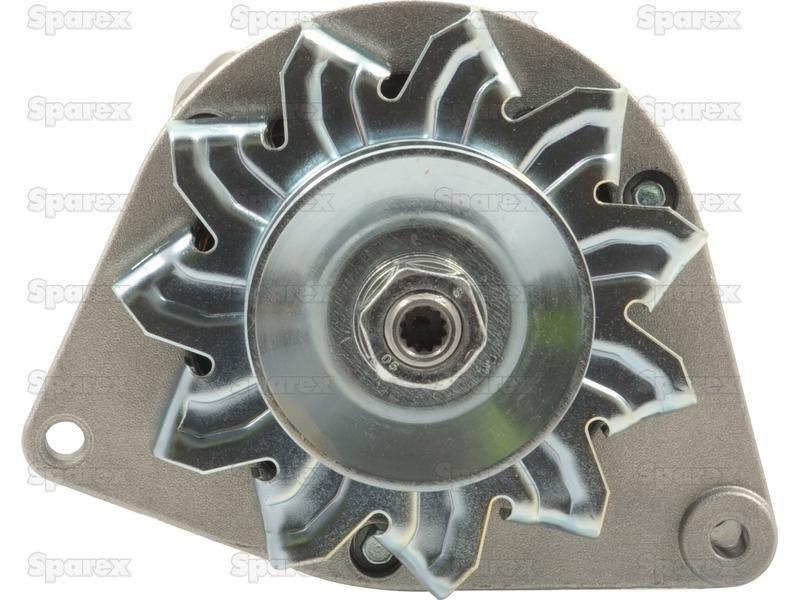

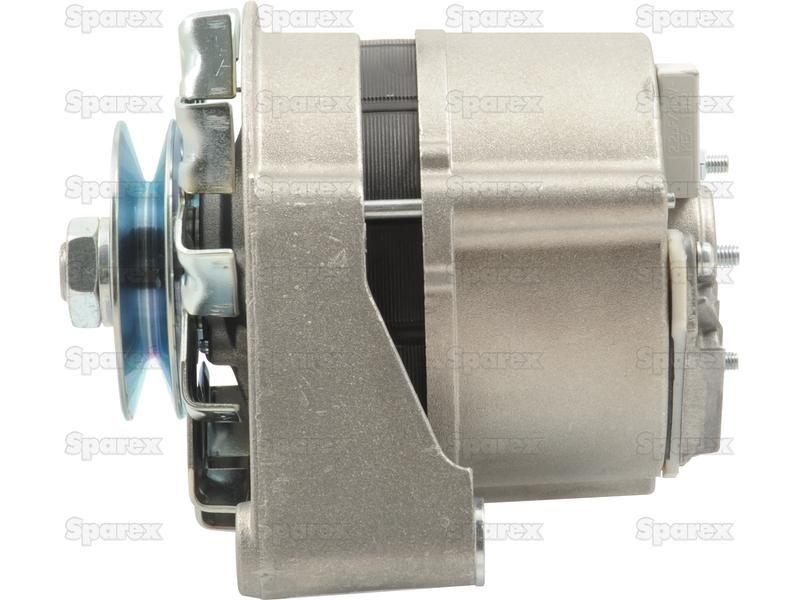

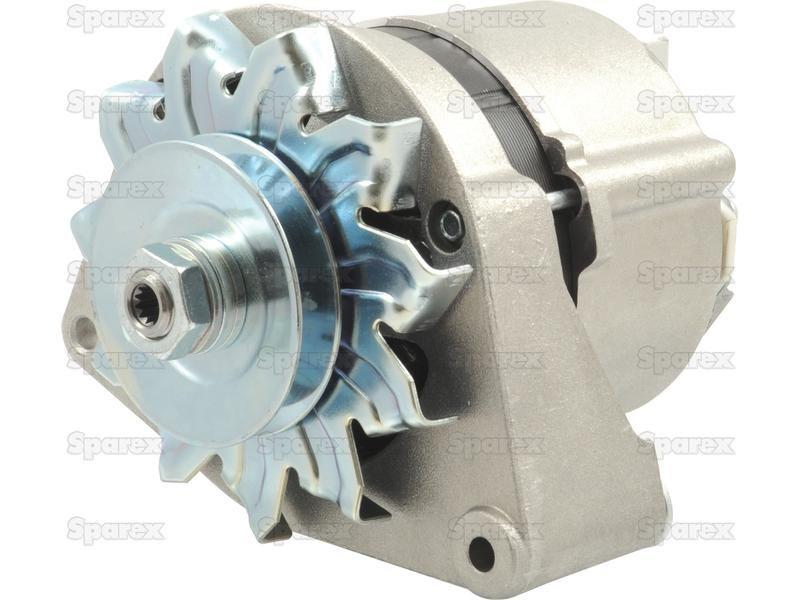

Alternator (Mahle) - 14V, 33 Amps for Case IH 531 (Combine)
Part Number: S.359400Categories: Electrical Accessories
Part Number: S.359400
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 33 Amps Pulley type: Single Groove, Pulley Ø: 68mm
Technical Information
| a Angle ° | -60 |
| A mm | 56 |
| Amps | 33 |
| B mm | 8.2 |
| Belt pulley width mm | 9.7 |
| Brand | Mahle |
| C mm | 86 |
| Connection Type | Spade Terminal |
| D mm | 21 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.5 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 68 |
| Pulley type | Single Groove |
| Related Products | 35910 |
| Shaft Length mm | 35 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| AGCO |
|---|
| C830060011000 |
| Bosch |
| 0120300514, 0120300552, 0120339514, 0120339531, 0986030130, 120300514, 120300552, 120339514, 120339531, 986030130, AL901X, AL905X |
| Case IH |
| 3138942R91, 3218239R91, 84535280 |
| Claas |
| 6005700084 |
| Deutz-Fahr |
| 01163985, 01171617, 01177481, 1163985, 1171617, 1177481 |
| Fendt |
| X830060003000, X830060011 |
| Iskra |
| IA0096 |
| Lester |
| 12290, 12298, 14948, 14949, 20296 |
| Lucas |
| LRA00584, LRA00612, LRA00931, LRA512, LRA584, LRA931 |
| Renault |
| 6000100325, 6000130300, 6005003146, 6005003149, 6005003763, 6005700084, 7700004148, 7700012723, 7700665435 |
| Valeo |
| 432988, 433476, 436265, NA049 |
