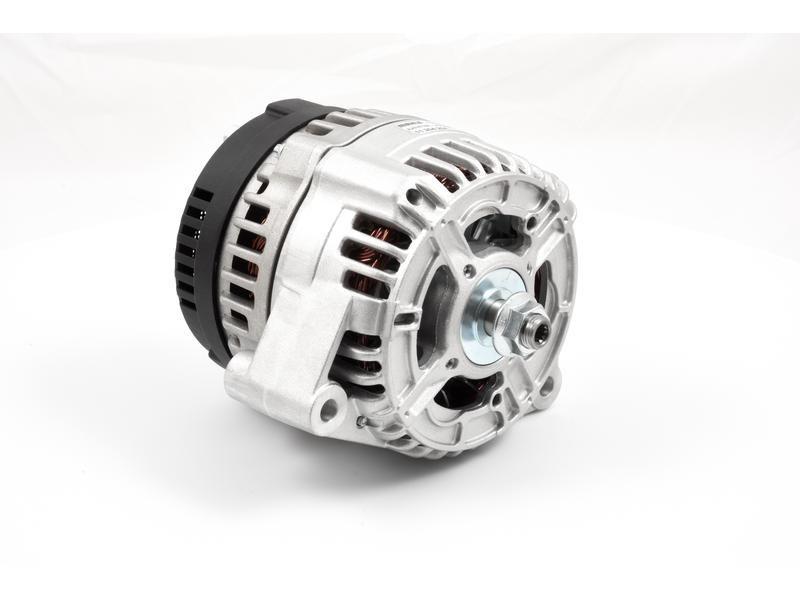

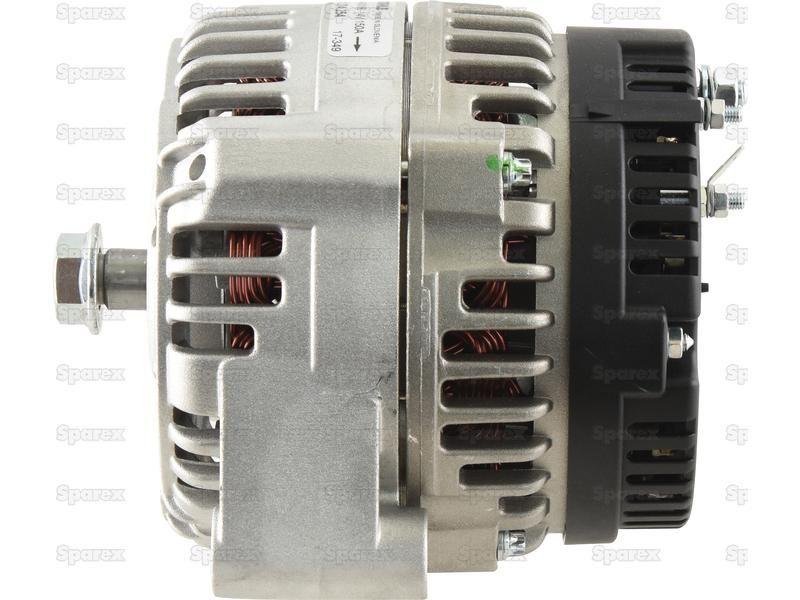

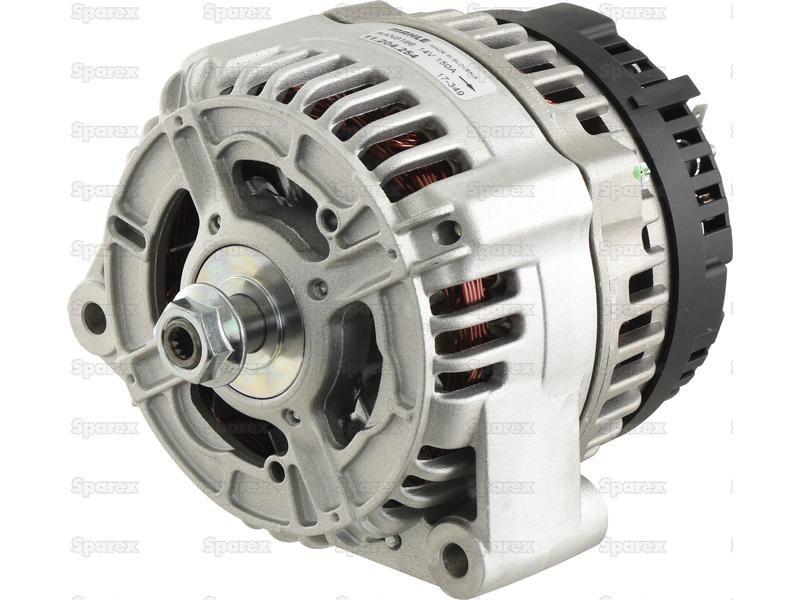

Alternator (Mahle) - 14V, 150 Amps for John Deere 6620 (6020 Series)
Part Number: S.35947Categories: Electrical Accessories
Part Number: S.35947
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 150 Amps
Technical Information
| a Angle ° | -60 |
| A mm | 56 |
| Amps | 150 |
| B mm | 10.2 |
| Brand | Mahle |
| C mm | 90 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Spade Terminal |
| Fan Type | Internal |
| Height mm | 190.5 |
| Length mm | 177.8 |
| Mounting Hole mm | 10.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley type | Without |
| Related Products | 36290, 39951, 137287 |
| Shaft Length mm | 27 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Type | B1 |
| Volts | 14V |
| Width mm | 254 |
Manufacturer Part Numbers
| AGCO |
|---|
| 4280470F91, 89685300 |
| Bosch |
| 0123515500, 0123515501, 0124525147, 0124615041, 0986047210, 123515500, 123515501, 124615041, 124615057, 986047210 |
| Case IH |
| 3269108, 87452821 |
| Claas |
| 0007984930, 079.849.30, 07984930, 7984930 |
| Deutz-Fahr |
| 01182691, 01183185, 1182040, 1182691, 1183185, 1183483 |
| Fendt |
| F404900010040 |
| Ford New Holland |
| 87452821 |
| Iskra |
| IA1117 |
| John Deere |
| AL119537, AL166647, AL171541, RE185213, SE501830 |
| Lester |
| 12381, 12714, 23840 |
| Lucas |
| LRA01234, LRA02234, LRA1234, LRA2234, LRA2841 |
| Massey Ferguson |
| 4280470F91, 4281878M92, 4281878M93, 4281880M92, 4281880M93, 8281880M93, 88601600 |
| Mercedes Benz |
| 012.154.14.02, 121541402 |
| Perkins |
| 2871A415 |
