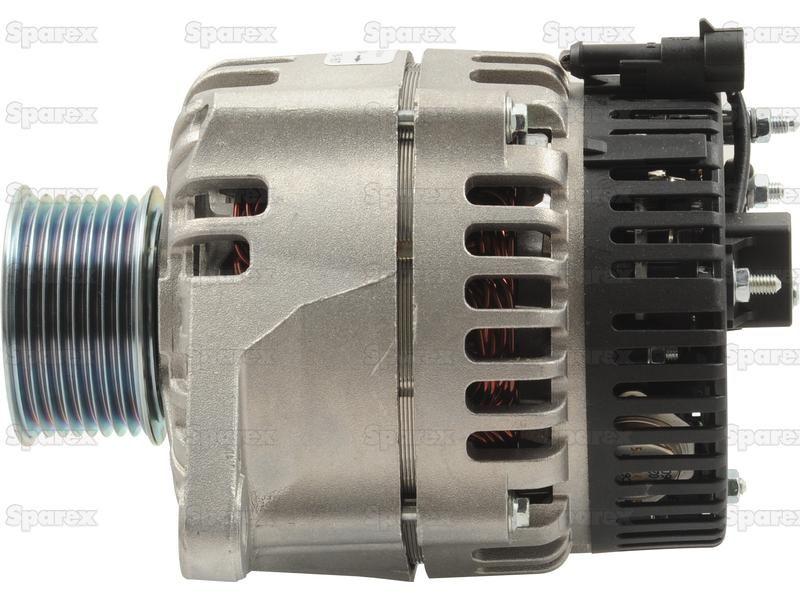

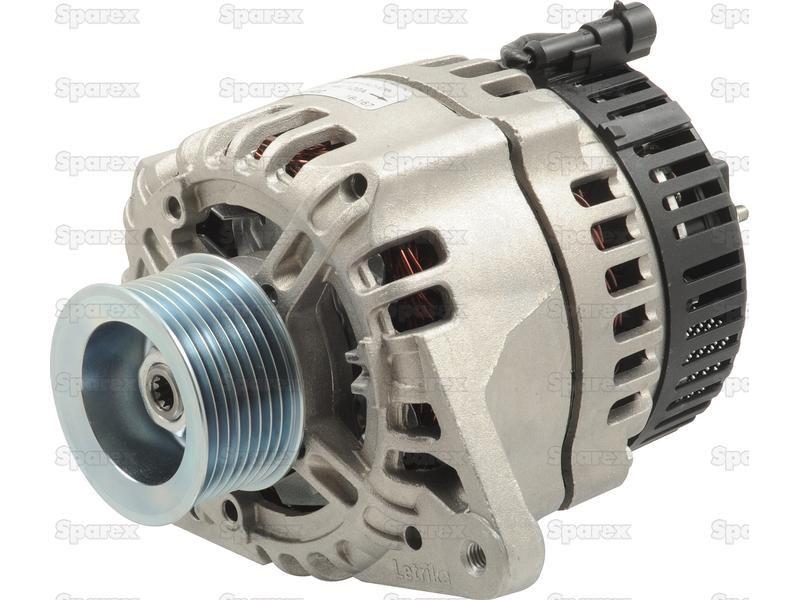

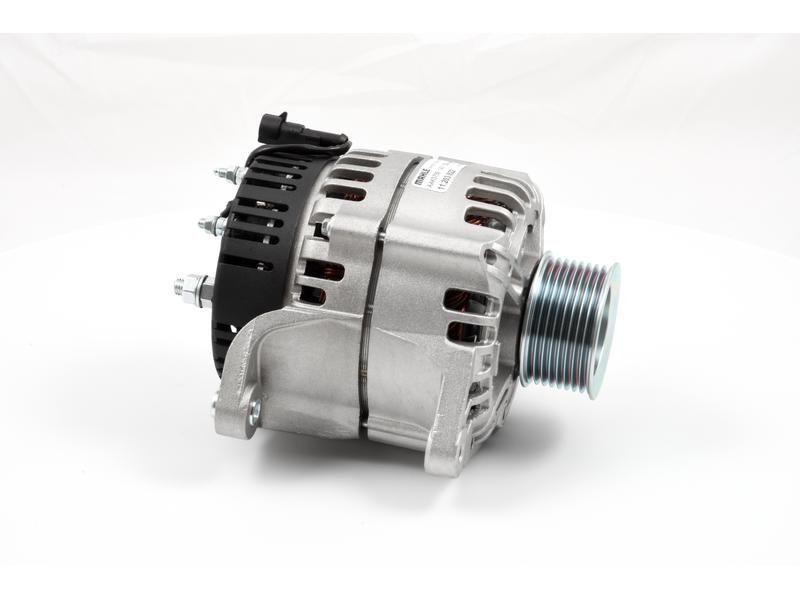

Alternator (Mahle) - 14V, 120 Amps for Ford New Holland TS115 (TS Series)
Part Number: S.36233Categories: Electrical Accessories
Part Number: S.36233
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 120 Amps Pulley type: PV x 8, Pulley Ø: 61mm
Technical Information

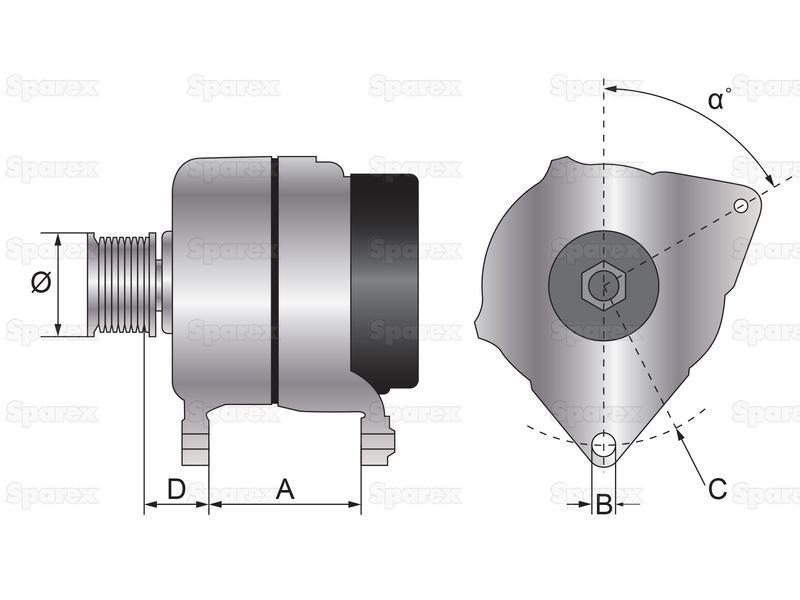

| a Angle ° | 60 |
| A mm | 82 |
| Amps | 120 |
| B mm | 8.2 |
| Belt pulley width mm | 30 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B+ |
| Connection Type | Ring Terminal |
| D mm | 32.7 |
| Fan Type | Internal |
| Height mm | 181 |
| Length mm | 190.5 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 61 |
| Pulley type | PV x 8 |
| Related Products | 35916 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 250.8 |
Manufacturer Part Numbers
| Case IH |
|---|
| 84141452, 87361082, 87652087 |
| Ford New Holland |
| 82020011, 84141452, 87310882, 87652087 |
| Iskra |
| IA1224 |
| Lester |
| 12787 |
