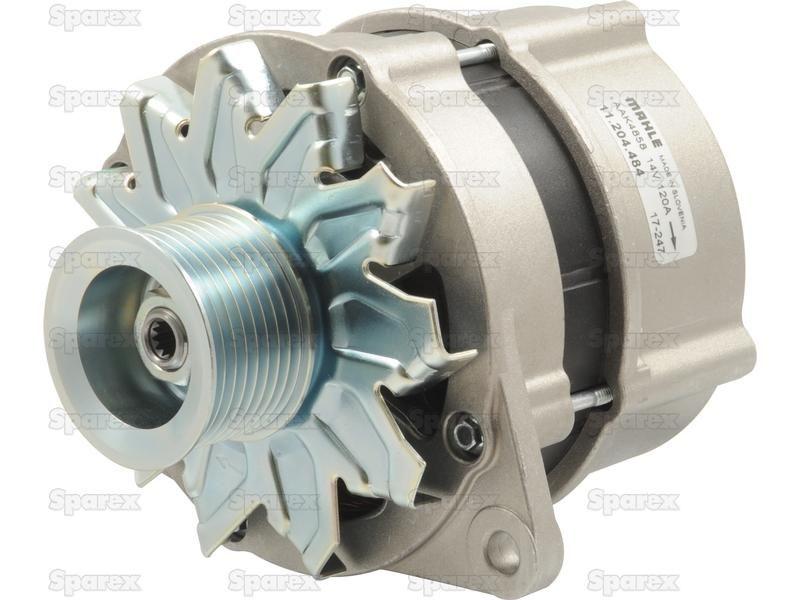

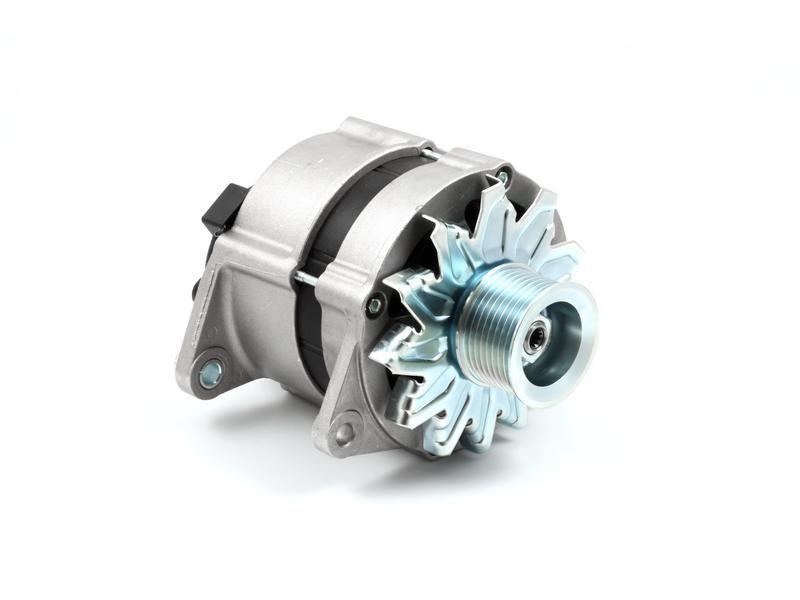

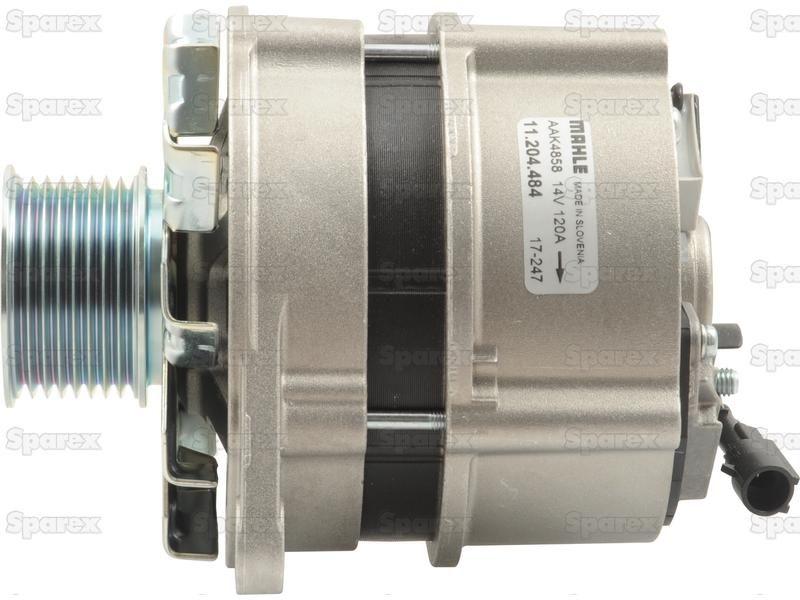

Alternator (Mahle) - 14V, 120 Amps for Steyr 4065 KOMPAKT
Part Number: S.127847Categories: Electrical Accessories
Part Number: S.127847
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 120 Amps Pulley type: PV x 8, Pulley Ø: 55mm
Technical Information

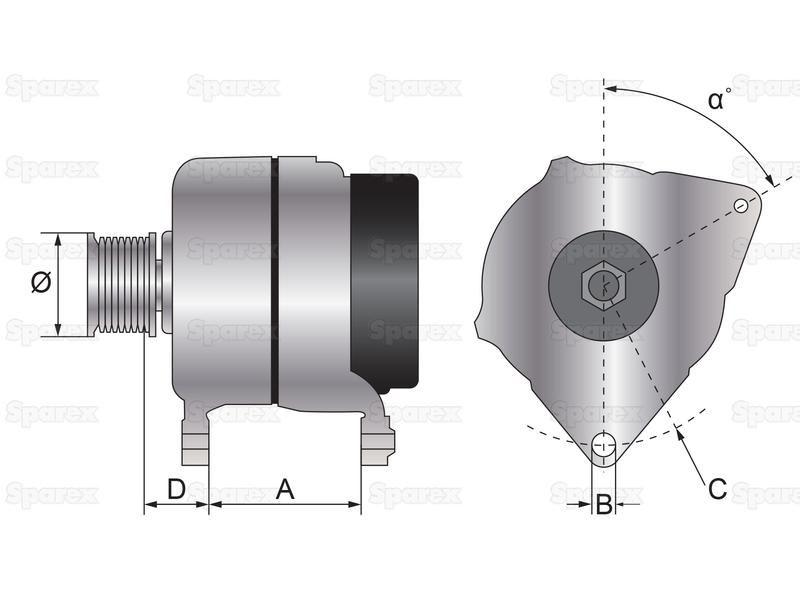

| a Angle ° | 60 |
| A mm | 82 |
| Amps | 120 |
| B mm | 10.2 |
| Belt pulley width mm | 30 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection Type | Connector |
| D mm | 37.1 |
| Fan Type | External |
| Height mm | 158.8 |
| Length mm | 209.6 |
| Mounting Hole mm | 10.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 55 |
| Pulley type | PV x 8 |
| Related Products | 35911, 35916 |
| Shaft Length mm | 38 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 177.8 |
Manufacturer Part Numbers
| Case IH |
|---|
| 87311822 |
| Fiat |
| 47383500 |
| Ford New Holland |
| 47383500, 87311822 |
| Iskra |
| IA1504 |
| IVECO |
| 504271461, 5801453378, 87311822 |
| Lester |
| 12785 |
| Steyr |
| 47383500 |
