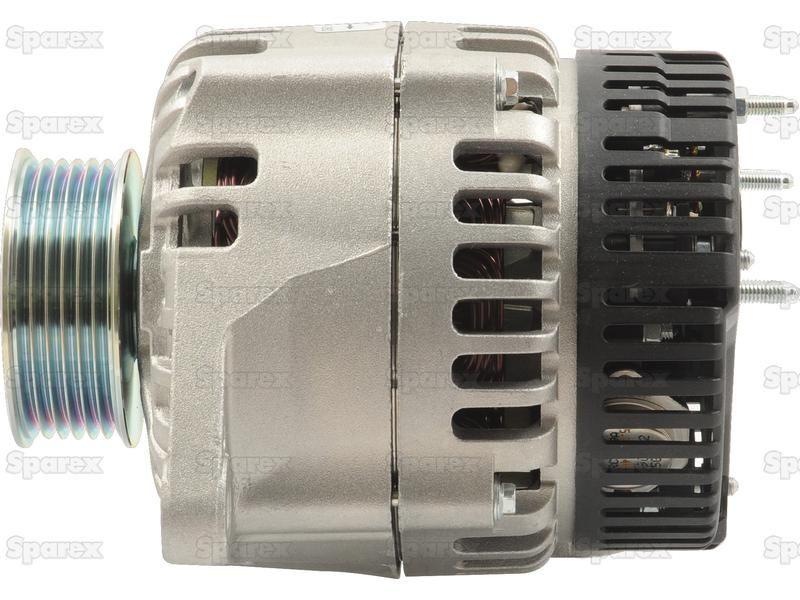

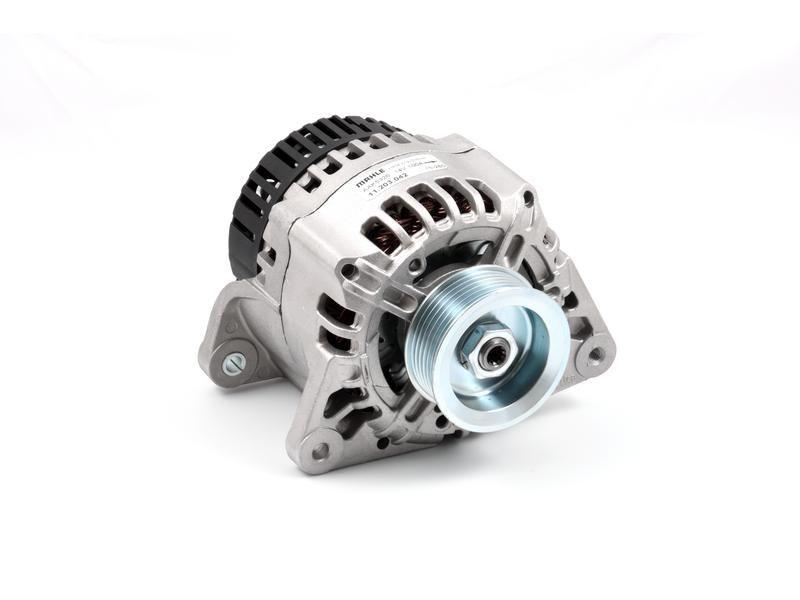

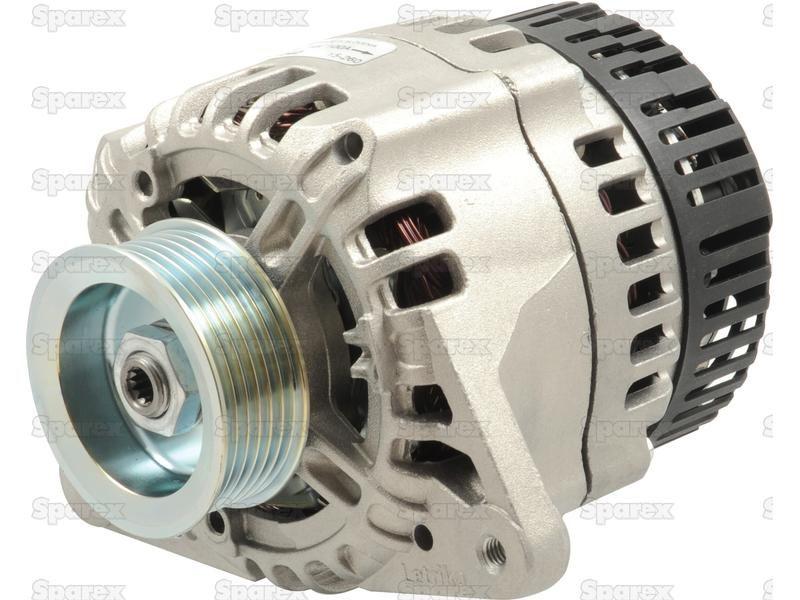

Alternator (Mahle) - 14V, 100 Amps for Ford New Holland TS90 (TS Series)
Part Number: S.36174Categories: Electrical Accessories
Part Number: S.36174
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 100 Amps Pulley type: PV x 6, Pulley Ø: 61mm
Technical Information

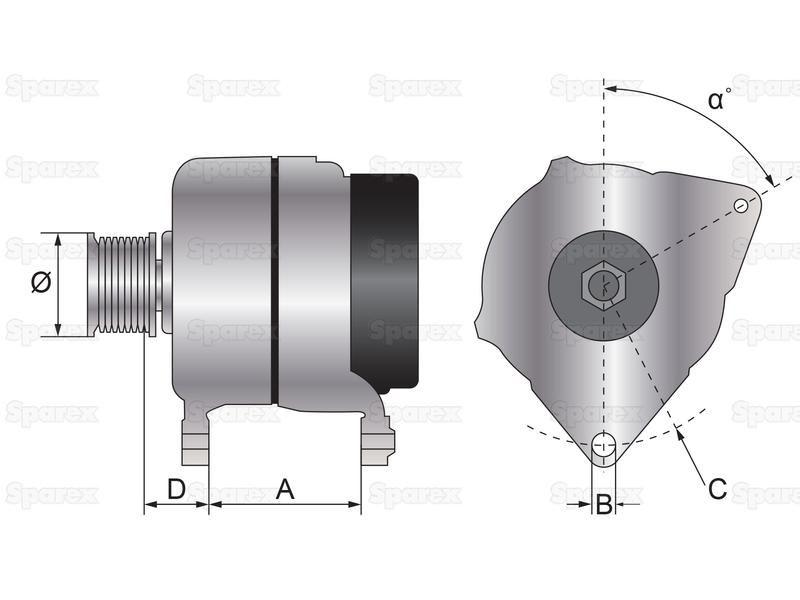

| a Angle ° | 60 |
| A mm | 81 |
| Amps | 100 |
| B mm | 8.2 |
| Belt pulley width mm | 23 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Ring Terminal |
| D mm | 32.7 |
| Fan Type | Internal |
| Height mm | 177.8 |
| Length mm | 247.7 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 61 |
| Pulley type | PV x 6 |
| Related Products | 35916, 137287 |
| Shaft Length mm | 21 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190.5 |
Manufacturer Part Numbers
| Ford New Holland |
|---|
| 1869133, 65GB10300LA, 81869133, 82001259, 82003307, 82010242, 83999784, F0NN10B376BA, F0NN10B376BB, F2NN10B376AA |
| Iskra |
| IA1018 |
| Lester |
| 12094 |
| Lucas |
| LRA01374 |
