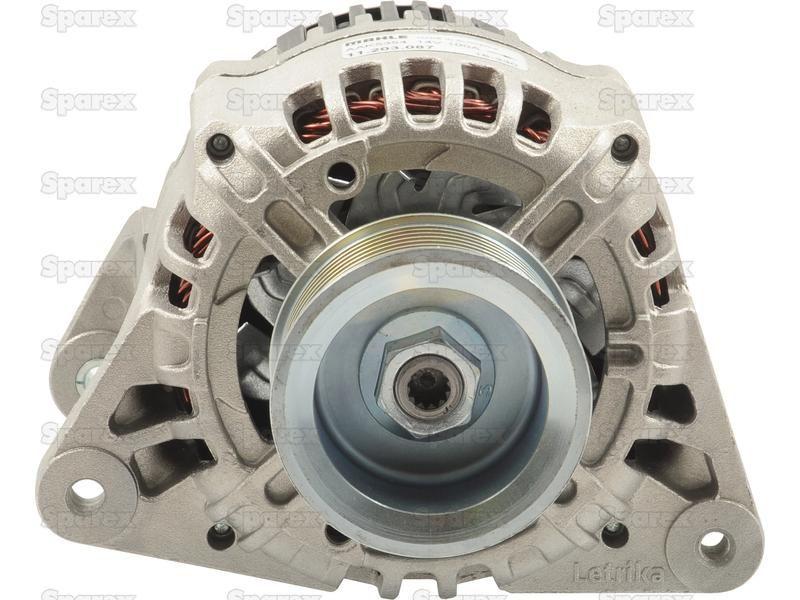

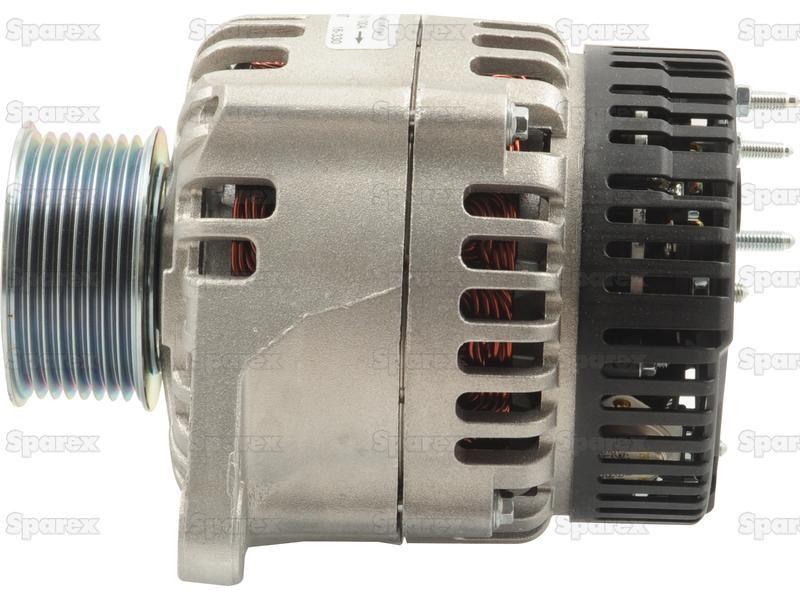

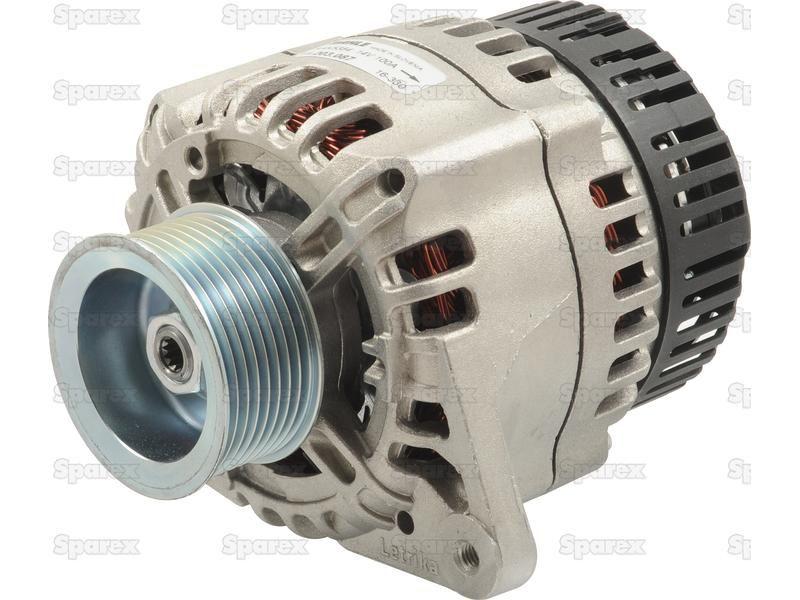

Alternator (Mahle) - 14V, 100 Amps for Ford New Holland TS90 (TS Series)
Part Number: S.36205Categories: Electrical Accessories
Part Number: S.36205
Grade: Replacement
Part Details
Alternator (Mahle) - 14V, 100 Amps Pulley type: PV x 8, Pulley Ø: 67mm
Technical Information

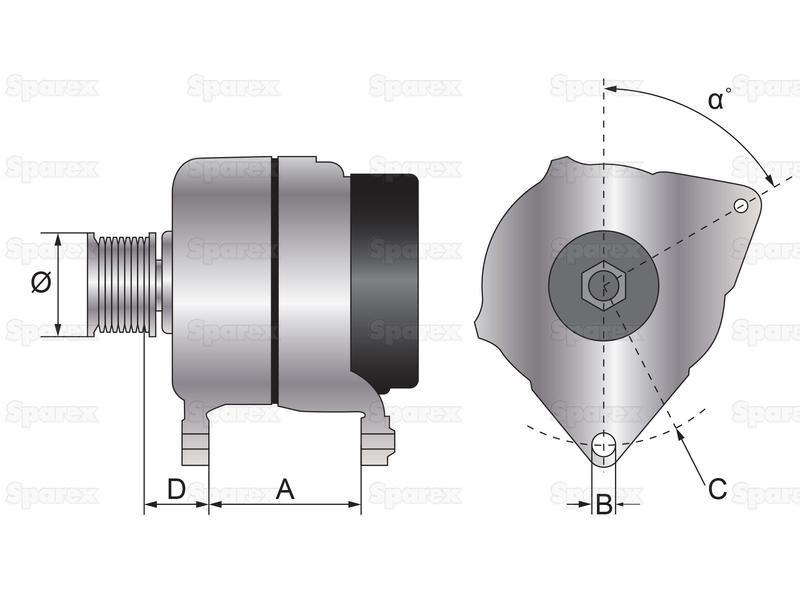

| a Angle ° | 60 |
| A mm | 81 |
| Amps | 100 |
| B mm | 8.2 |
| Belt pulley width mm | 30 |
| Brand | Mahle |
| C mm | 86 |
| Connection 1 | W |
| Connection 2 | D+ |
| Connection 3 | B+ |
| Connection 4 | B- |
| Connection Type | Ring Terminal |
| D mm | 32.7 |
| Fan Type | Internal |
| Height mm | 177.8 |
| Length mm | 247.7 |
| Mounting Hole mm | 8.2 |
| Number of holes | Two |
| Nut | Hex Nut |
| Pulley Ø mm | 67 |
| Pulley type | PV x 8 |
| Related Products | 35916, 39951, 137287 |
| Shaft Length mm | 27 |
| Shaft Type | Splined |
| Supplied with Fan | Yes |
| Tariff Code | 8511500090 |
| Volts | 14V |
| Width mm | 190.5 |
Manufacturer Part Numbers
| Fiat |
|---|
| 82010243 |
| Ford New Holland |
| 1072455, 82001259, 82002329, 82003307, 82010242, 82010243, 95VB10300BB, 95VB10300BC, F2NN10B376AA |
| Iskra |
| IA1019 |
| Lester |
| 12095 |
