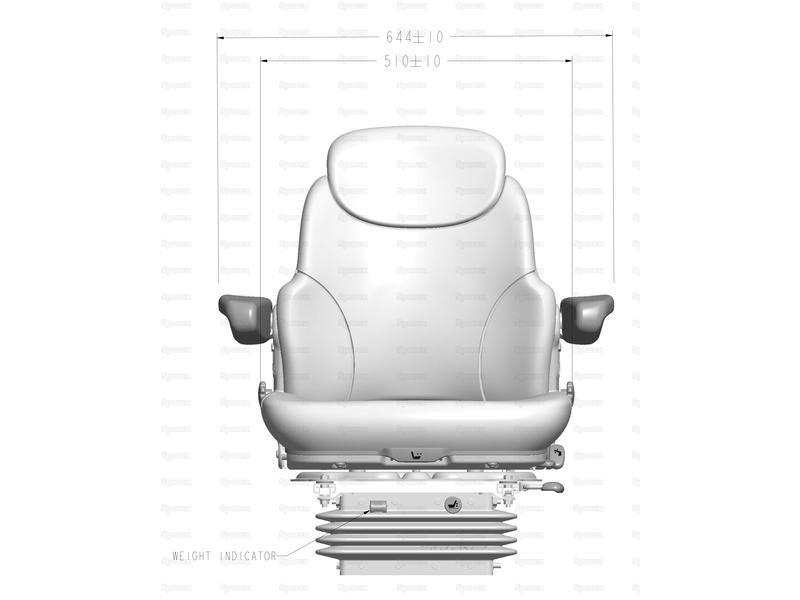

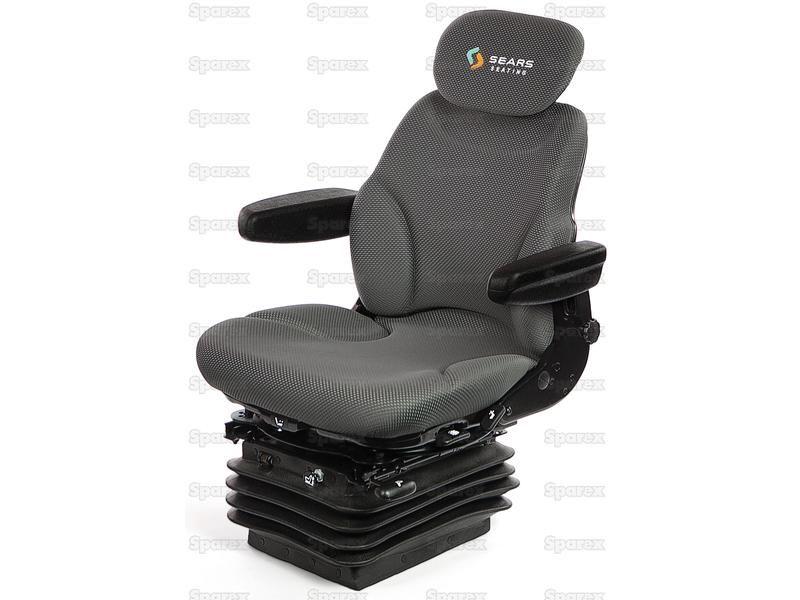

Air Suspension Seat - 12V (Fabric) for Case IH FARMALL 75A
Part Number: S.156649Categories: Tractor Cabin
Part Number: S.156649
Grade: Replacement
Part Details

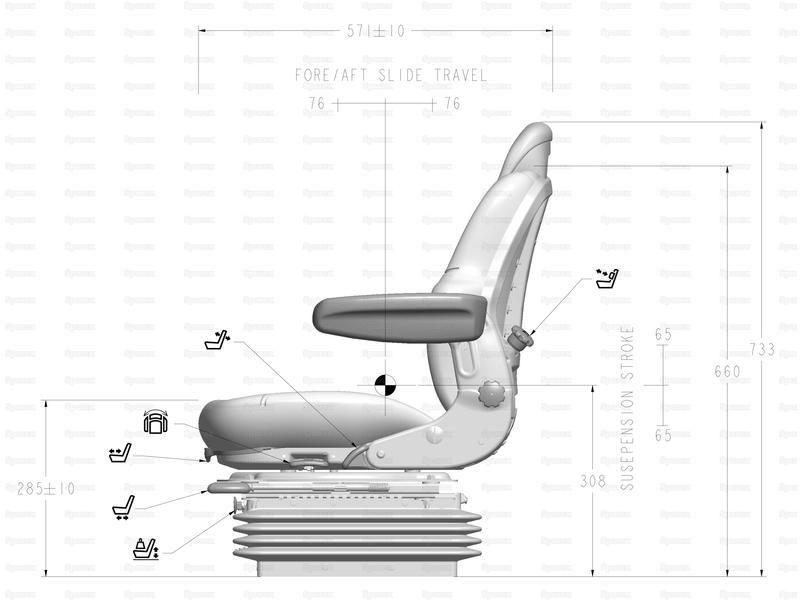

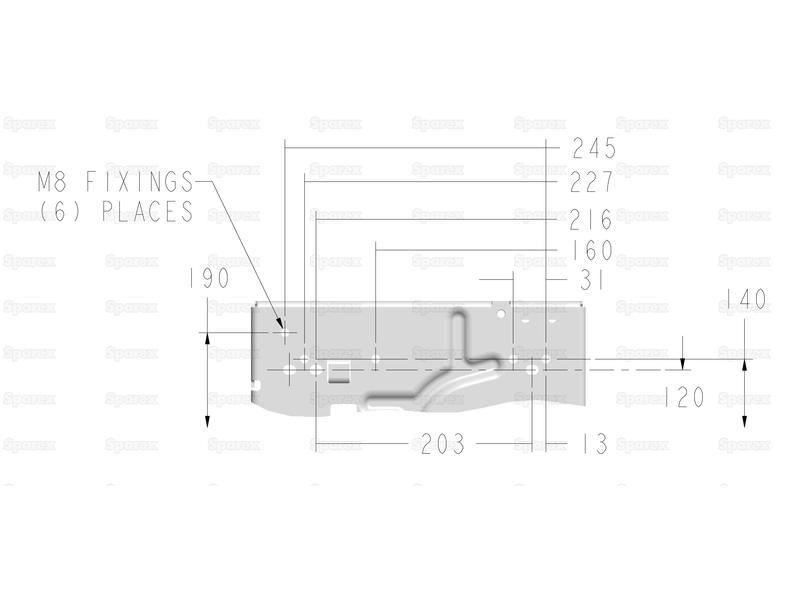

Air Suspension Seat - 12V (Fabric) FeaturesDouble depth Fabriform® comfort cushionsBackrest TiltBackrest ExtensionMechanical Lumbar AdjustmentArmrests with height & tilt up adjustmentSwivel 20° - 20°Height adjustmentSuspension stroke +/- 65mmFore - aft side travel of 152mmFixed shock absorberVibration performance to ISO 7096Supplied with multifix mounting design
Technical Information
| Backrest Extension | Integrated |
| Backrest Tilt | Yes |
| Brand | Sears |
| Colour | Grey |
| Features | Double depth Fabriform® comfort cushions - Backrest Tilt - Backrest Extension - Mechanical Lumbar Adjustment - Armrests with height & tilt up adjustment - Swivel 20° - 20° - Height adjustment - Suspension stroke +/- 65mm - Fore - aft side travel of 152mm - Fixed shock absorber - Vibration performance to ISO 7096 - Supplied with multifix mounting design |
| Height mm | 733 |
| Material | Fabric/ |
| Mechanical Lumber Adjustment | Yes |
| Model | D3030 |
| Notes | Low Natural Frequency (LNF) : LNF is a lower resonant frequent to 1Hz (1.25Hz Standard). The air spring with twin chamber duo dampers and roller bearing provide great ride control, lower ride frequencies and load bearing of up to 200kgs. |
| Related Products | 1542, 56843, 165380, 165383, 165385, 165388, 165390, 165391, 165393, 165396, 165400 |
| Seat Belt Fixing Points | Yes |
| Seat Type | Compact |
| Shock Absorber | Fixed |
| Slide Travel mm | 152 |
| Suspension Air | Yes |
| Suspension Mechanical | No |
| Suspension Stroke mm | +/- 65 |
| Tariff Code | 9401200000 |
| Turntable | 20° - 20° |
| Volts | 12V |
| Weight Adjustment kgs | 30 - 140 |
