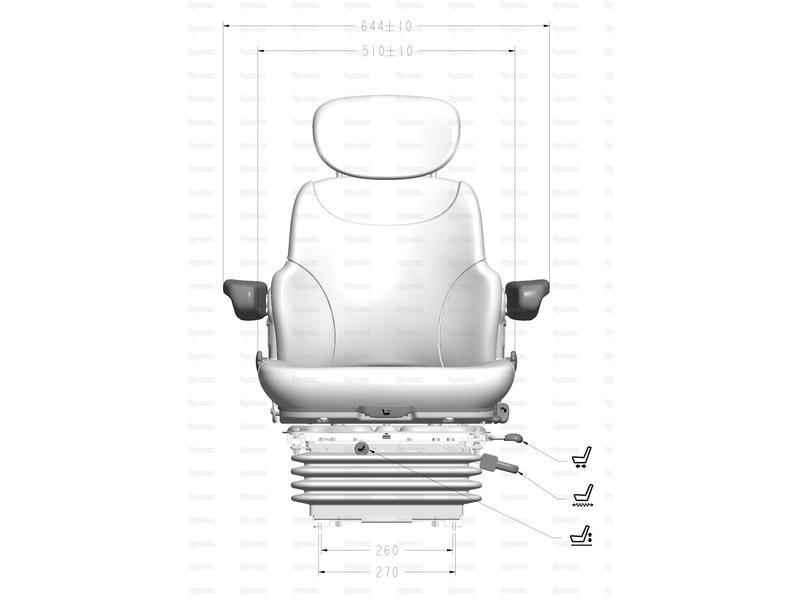

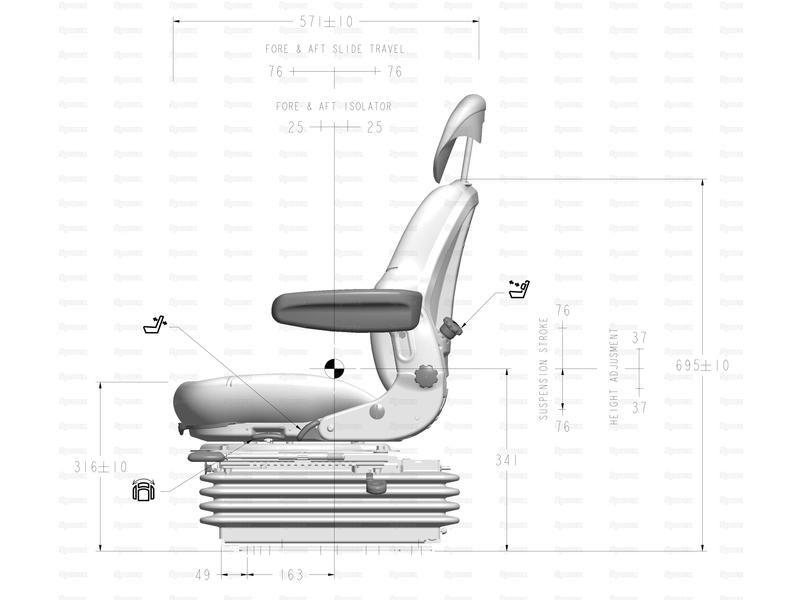

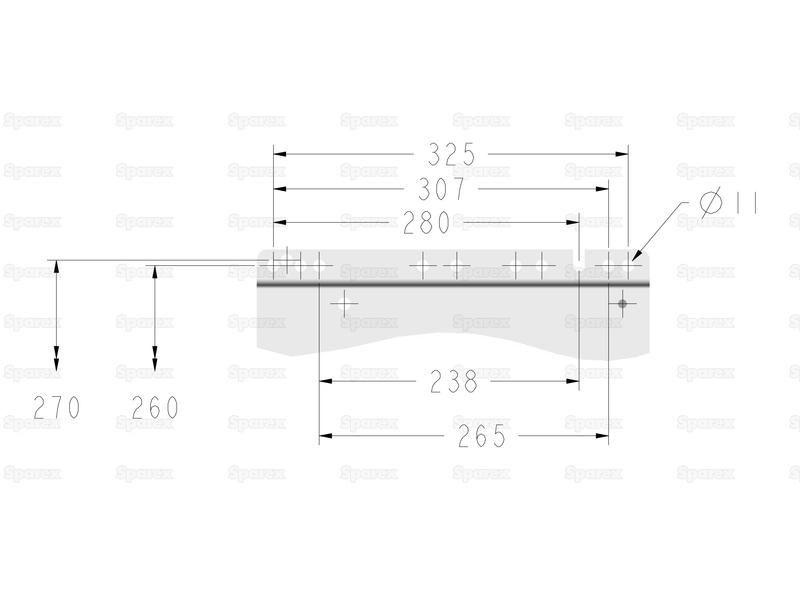

Air Suspension Seat - 12V (Fabric) for Kubota M9000 (M Series Agricultural Tractor)
Part Number: S.156651Categories: Tractor Cabin
Part Number: S.156651
Grade: Replacement
Part Details
Air Suspension Seat - 12V (Fabric) FeaturesDouble depth Fabriform°® comfort cushionsBackrest TiltBackrest ExtensionMechanical Lumbar AdjustmentSeat Cushion Length AdjustmentArmrests with height & tilt up adjustmentOperator presence switchSwivel 20° - 20°Automatic height adjustment Suspension stroke mm+/- 76Fore - aft side travel of 200mmFixed shock absorberHorizontal isolator fully integrated, sprung & Duo°® DampedAdjustable Duo°® damperVibration performance to ISO 7096Supplied with multifix mounting kitModel: D3045A
Technical Information
| Backrest Extension | Integrated |
| Backrest Tilt | Yes |
| Brand | Sears |
| Colour | Grey |
| Features | Double depth Fabriform® comfort cushions - Backrest Tilt - Backrest Extension - Mechanical Lumbar Adjustment - Seat Cushion Length Adjustment - Armrests with height & tilt up adjustment - Operator presence switch - Swivel 20° - 20° - Automatic height adjustment - Suspension stroke mm+/- 76 - Fore - aft side travel of 200mm - Fixed shock absorber - Horizontal isolator fully integrated, sprung & Duo® Damped - Adjustable Duo® damper - Vibration performance to ISO 7096 - Supplied with multifix mounting kit |
| Height mm | 695 |
| Material | Fabric/ |
| Mechanical Lumber Adjustment | Yes |
| Model | D3045A |
| Operator Presence Switch | Yes |
| Related Products | 1542, 56843, 165380, 165383, 165387, 165388, 165390, 165392, 165394, 165397, 165399, 165400 |
| Seat Belt Fixing Points | Yes |
| Seat Cushion Length Adjustment | Yes |
| Seat Type | Deluxe |
| Shock Absorber | Fixed |
| Slide Travel mm | 200 |
| Suspension Air | Yes |
| Suspension Mechanical | No |
| Suspension Stroke mm | +/- 76 |
| Tariff Code | 9401200000 |
| Turntable | 20° - 20° |
| Volts | 12V |
| Weight Adjustment kgs | 30 - 140 |
